24 – English

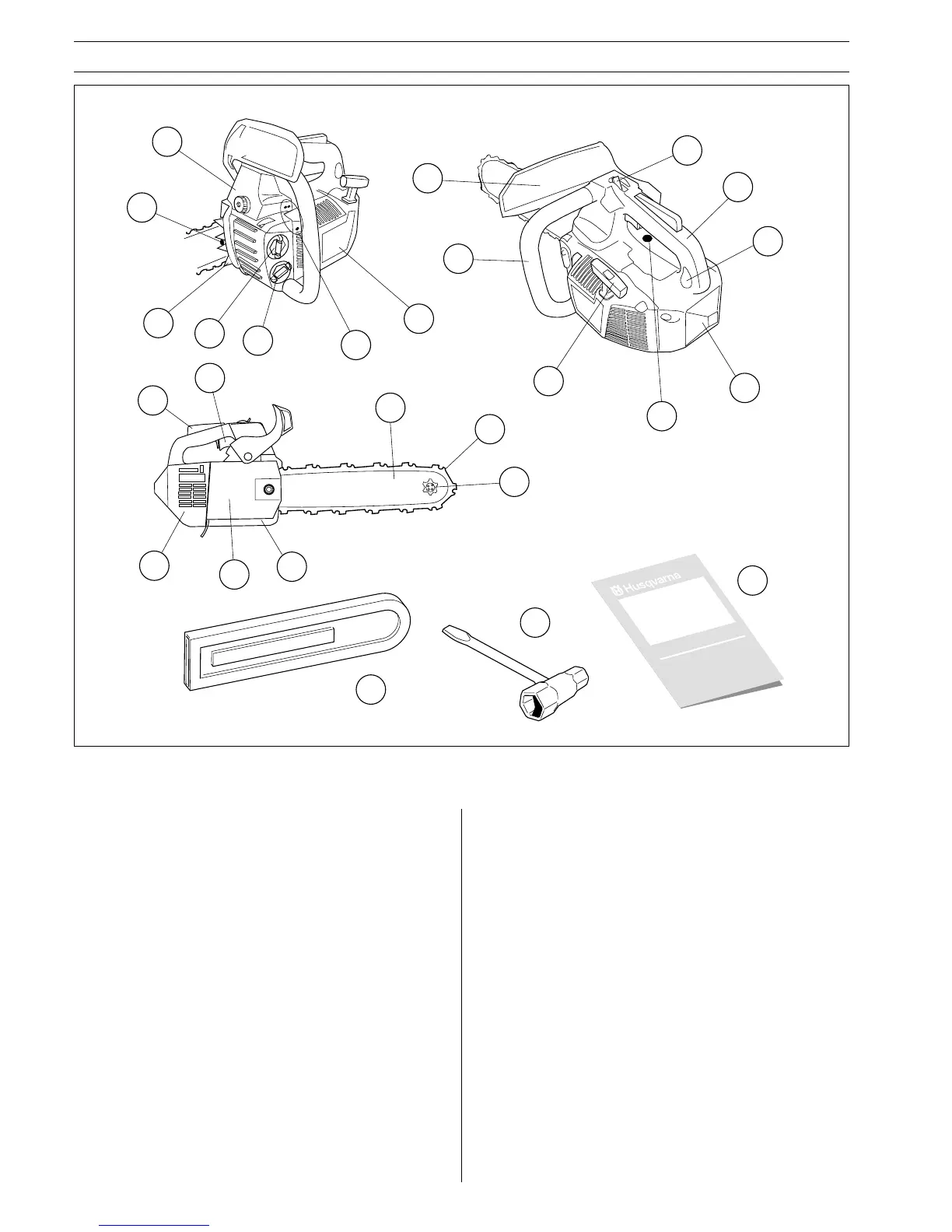

WHAT IS WHAT?
1
24
16
5
11
7
4
2
3
8
9
10
19
6
21
20
12
18
17
13
14
15
23
26
25
27
1. Filter cover.
2. Front handle.
3. Front hand guard.
4. Starter cover
5. Chain oil tank.
6. Starter handle.
7. Adjuster screws, carburetor.
8. Stop and choke control:
• Ignition on/off switch.
• Choke control/Start throttle lock.
• Operating position.
9. Rear handle.
10. Spark plug cover.
11. Fuel tank.
12. Muffler.
13. Bar tip sprocket.Stop switch and choke control. The stop
switch sets the ignition on/off.
14. Saw chain.
15. Saw bar.
16. Bumper.
17. Chain catcher. Catches chain if it jumps or breaks.
18. Clutch cover.
19. Oil pump adjustment screw.
20. Throttle control.
21. Throttle lock. Prevents accidental operation of throttle
control.
23. Combination spanner.
24. Chain tensioning screw.
25. Operator's/Safety manual.
26. Bar guard.
27. Attachment point.
What is what?
