24 – English

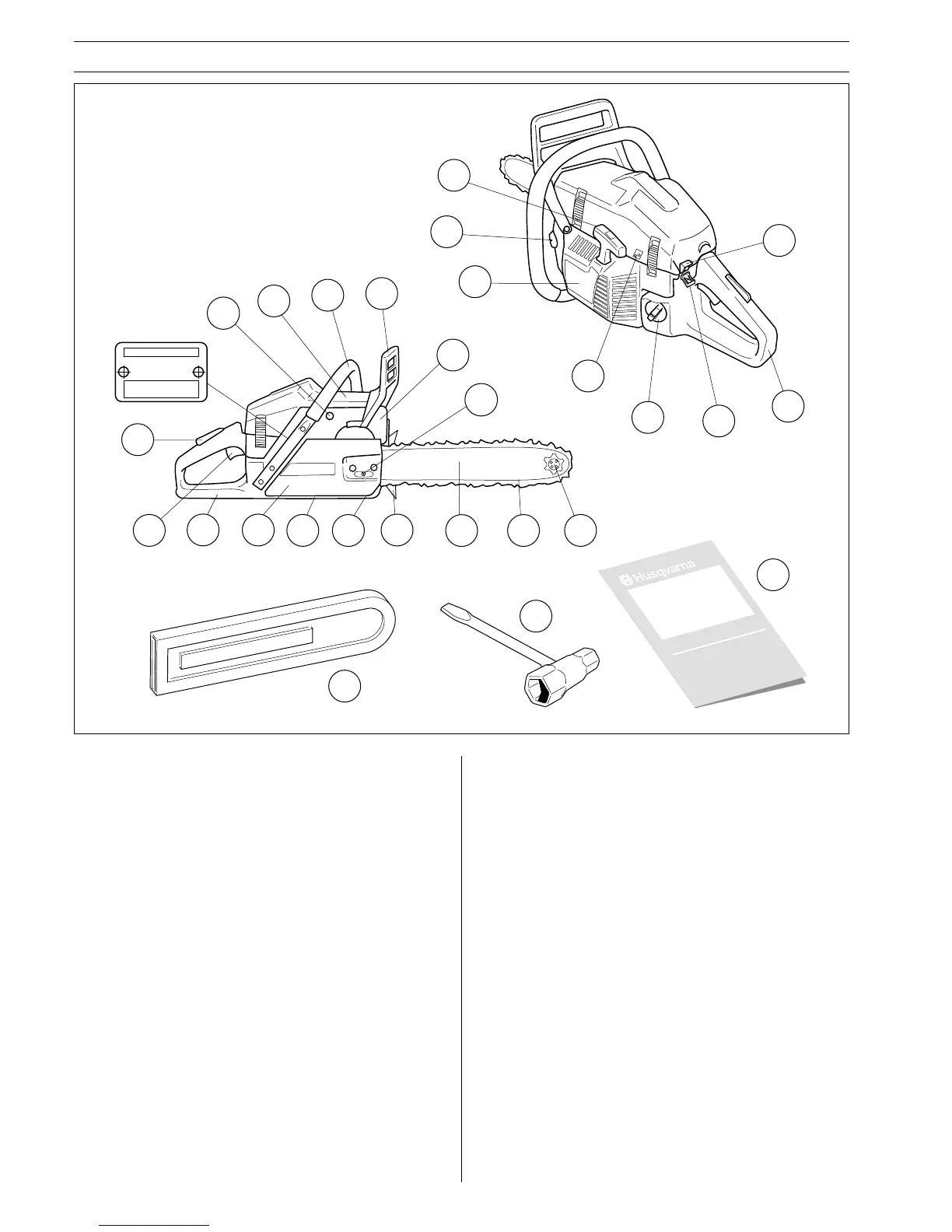

WHAT IS WHAT?
What is what?
1. Cylinder cover.
2. Front handle.
3. Front hand guard.
4. Starter cover.
5. Chain oil tank.
6. Starter handle.
7. Adjuster screw, carburetor.
8. Choke control/Start throttle lock.
9. Rear handle.
10. Stop switch. Ignition on/off switch.
11. Fuel tank.
12. Muffler.
13. Bar tip sprocket.
14. Saw chain.
15. Saw bar.
16. Bumper.
17. Chain catcher. Catches chain if it jumps or breaks.
18. Clutch cover.
19. Right hand guard. Protects right hand if chain breaks or
jumps.
20. Throttle control.
21. Throttle lock. Prevents accidental operation of throttle
control.
22. Decompression valve.
23. Combination spanner.
24. Chain tensioning screw.
25. Operator´s manual.
26. Bar guard.
27. Oil pump adjustment screw.
Husqvarna 355
Husqvarna AB
Huskvarna, SWEDEN
XXXX
XXXXXXX
2
3
13
14
15
17
18
19
20
21
1
16
25
23
26
24
27
22
5
7
9
11
4
6
8
12
10
