Husqvarna 36 User Manual

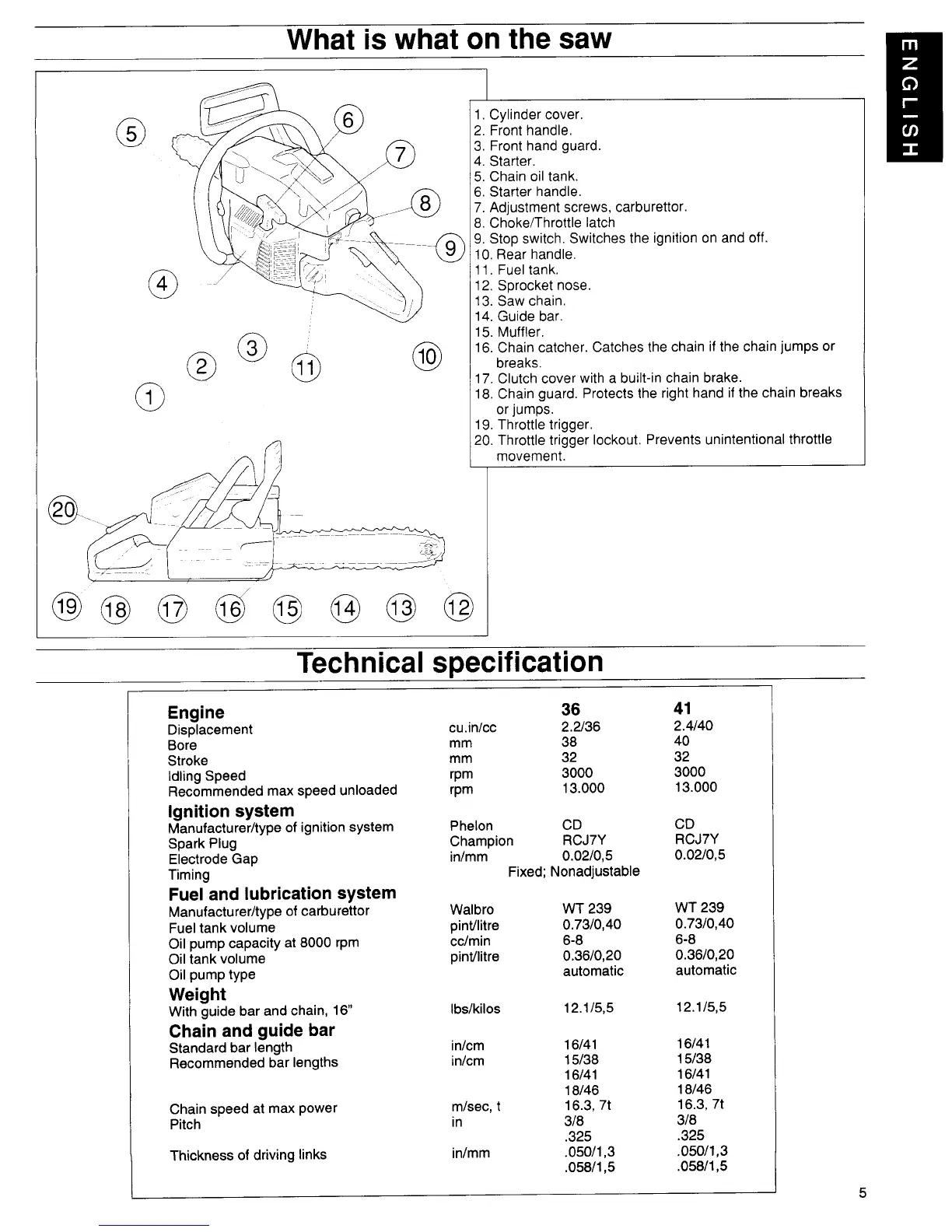

What is what on the saw
I
o
1, Cylinder cover,
5
2, Front handle.
3. Front hand guard.
4, Starter.
5, Chain oil tank.
6. Starter handle.
7. Adjustment screws, carburetor.
8. Choke/Throttle latch
9. Stop switch. Switches the ignition on and off.
10, Rear handle.
11, Fuel tank.
12, Sprocket nose.
13. Saw chain.
14. Guide bar.
o
15. Muffler,
o
3 ~
o
0
10
16.
Chain catcher. Catches the chain if the chain jumps or
2
11
breaks.
o
17, Clutch cover with a built-in chain brake.
1
18, Chain guard. Protects the right hand if the chain breaks
or jumps.
19, Throttle trigger.
20, Throttle trigger lockout, Prevents unintentional throttle
movement.
—
—
Technicalspecification
m
Engine
36
41
Displacement
cu.inicc
2.2136
2.4/40
Bore
mm 38
40
Stroke
mm
32
32
Idling Speed
rpm
3000
3000
Recommended max speed unloaded
rpm
13.000
13.000
Ignitionsystem
Manufacturer/type of ignition system
Phelon
CD
CD
Spark Plug
Champion
RCJ7Y
RCJ7Y
Electrode Gap
inlmm
0.02/0,5
0.02/0,5
Timing
Fixed; Nonadjustable
Fueland lubricationsystem
Manufacturer/type of carburetor
Walbro
WT 239
WT 239
Fuel tank volume
pint/litre 0.73/0,40
0.73/0,40
Oil pump capacity at 8000 rpm
cc/rein
6-8
6-8
Oil tank volume
pint/litre
0.36/0,20
0.36/0,20
Oil pump type
automatic
automatic
Weight
With guide bar and chain, 16”
lbs/kilos
12.1/5,5
12.1/5,5
Chainand guidebar
Standard bar length
inlcm
16/41
16/41
Recommended bar lengths
inlcm
15/38
15/38
16/41
16/41
18146
18146
Chain speed at max power
m/see, t
16.3, 7t
16.3, 7t
Pitch
in
3/8
3/8
.325
.325
Thickness of driving links
inlmm
.050/1,3
,050/1,3
.058/1,5
.058/1,5
5

Husqvarna 36 Specifications

General

Cylinder Displacement	36.3 cm³
Oil Tank Volume	0.2 l
Recommended bar length	35-40 cm
Chain pitch	3/8"
Bar Length	35 cm
