Husqvarna 525LK User Manual

ASSEMBLY
English
–
11

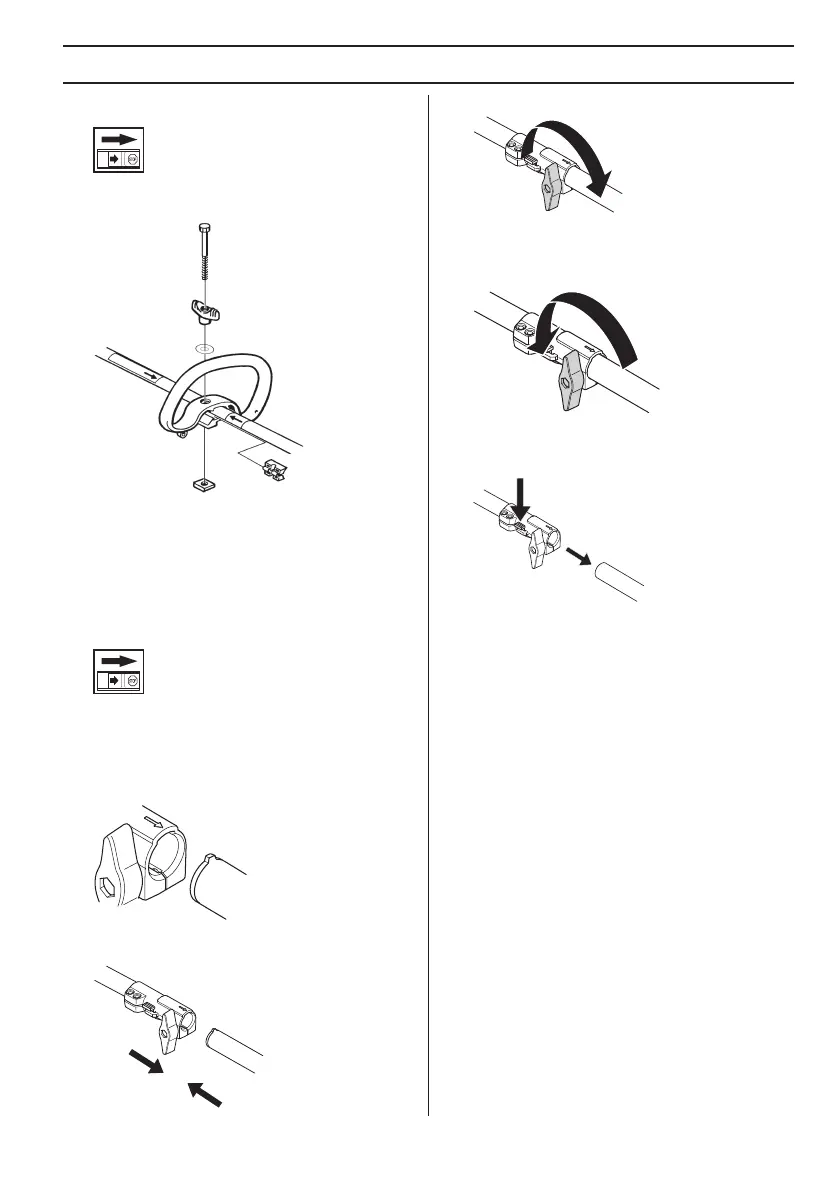

Fitting the loop handle
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• Fit the nut, knob and screw. Do not overtighten.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Assembling and dismantling the
two-piece shaft
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on
the coupling (B).
• Push the attachment into the coupling until the
attachment snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling:
• Loosen the coupling by turning the knob (at least 3
times).
• Push and hold the button (C). While securely holding
the engine end, pull the attachment straight out of the
coupling.
A
B
C

Husqvarna 525LK Specifications

General

Engine Displacement	25.4 cm³
Power Output	1 kW
Maximum Power Speed	8500 rpm
Tube Length	1483 mm
Tube Diameter	24 mm
Engine Type	2-stroke
Shaft Type	Straight
Starter System	Smart Start
Fuel Tank Capacity	0.51 liters
OEM Grass Blade	No
OEM Harness	No
