Assembly
Introduction
WARNING: Read and understand the
safety chapter before you assemble the
product.

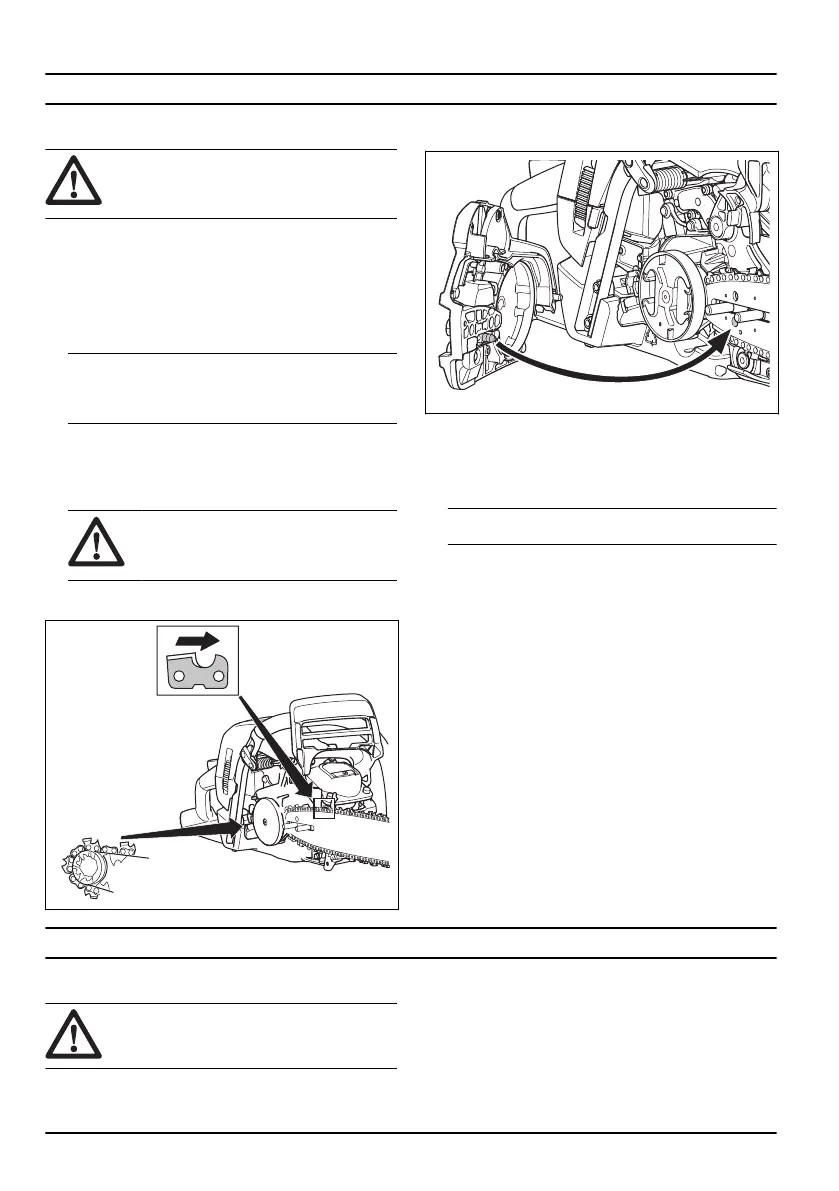

To assemble the guide bar and saw
chain
1. Move the front hand guard rearward to disengage
the chain brake.
2. Remove the bar nuts and the clutch cover.
Note: If the clutch cover is not easy to remove,
tighten the bar nut, engage the chain brake and
release. A click is heard if it is released correctly.
3. Assemble the guide bar onto the bar bolts. Move the
guide bar to its most rear position.
4. Install the saw chain correctly around the drive
sprocket and put it in the groove on the guide bar.
WARNING: Always use protective
gloves when you assemble the saw
chain.
5. Make sure that the edges of the cutters point forward
on the top edge of the guide bar.
6. Align the hole in the guide bar with the chain adjuster
pin and install the clutch cover.
7. Tighten the bar nuts finger tight.
8. Tighten the saw chain. Refer to
To adjust the tension
of the saw chain on page 29
for instructions.
9. Tighten the bar nuts.
Note: Some models have only one bar nut.
Operation
Introduction
WARNING: Read and understand the
safety chapter before you use the product.
To do a function check before you use
the product
1. Make sure that the chain brake operates correctly
and that it is not damaged.
2. Make sure that the right hand guard is not damaged.
10 544 - 010 - 12.01.2023
