ROTARY LAWN MOWER - - MODEL NUMBER 55R21HV (96143000502)
PRODUCT NUMBER 961 43 00-05

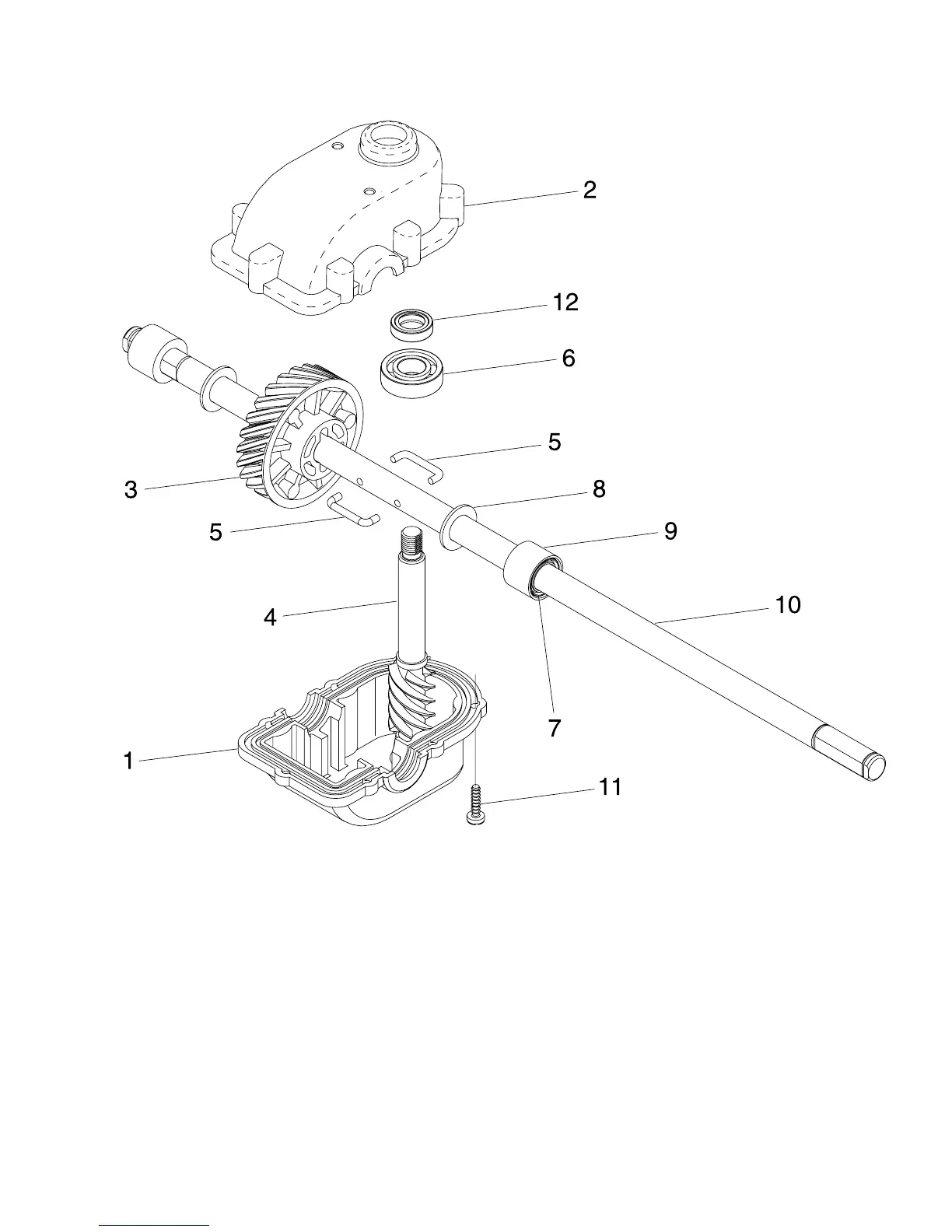

GEAR CASE ASSEMBLY - - PART NUMBER 532 18 82-94
KEY PART
NO. NO. DESCRIPTION
1 532 18 75-30 Case, Lower
2 532 19 12-45 Case, Upper
3 532 18 75-32 Gear, 24 Teeth
4 532 19 12-46 Shaft, Worm
5 532 18 35-05 Wireform
6 532 18 35-06 Bearing, Ball
7 532 18 35-08 Seal, Output Shaft
8 532 18 35-09 Washer
9 532 18 35-11 Bushing
10 532 19 12-47 Shaft, Output
11 532 18 35-13 Screw
12 532 18 35-14 Seal, Worm Shaft
- - 532 75 03-69 Grease, Texaco Starplex Premium 1
(Do not substitute) (1.4 ounce capacity)
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manu-
facturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
