Husqvarna 700DRT User Manual

15

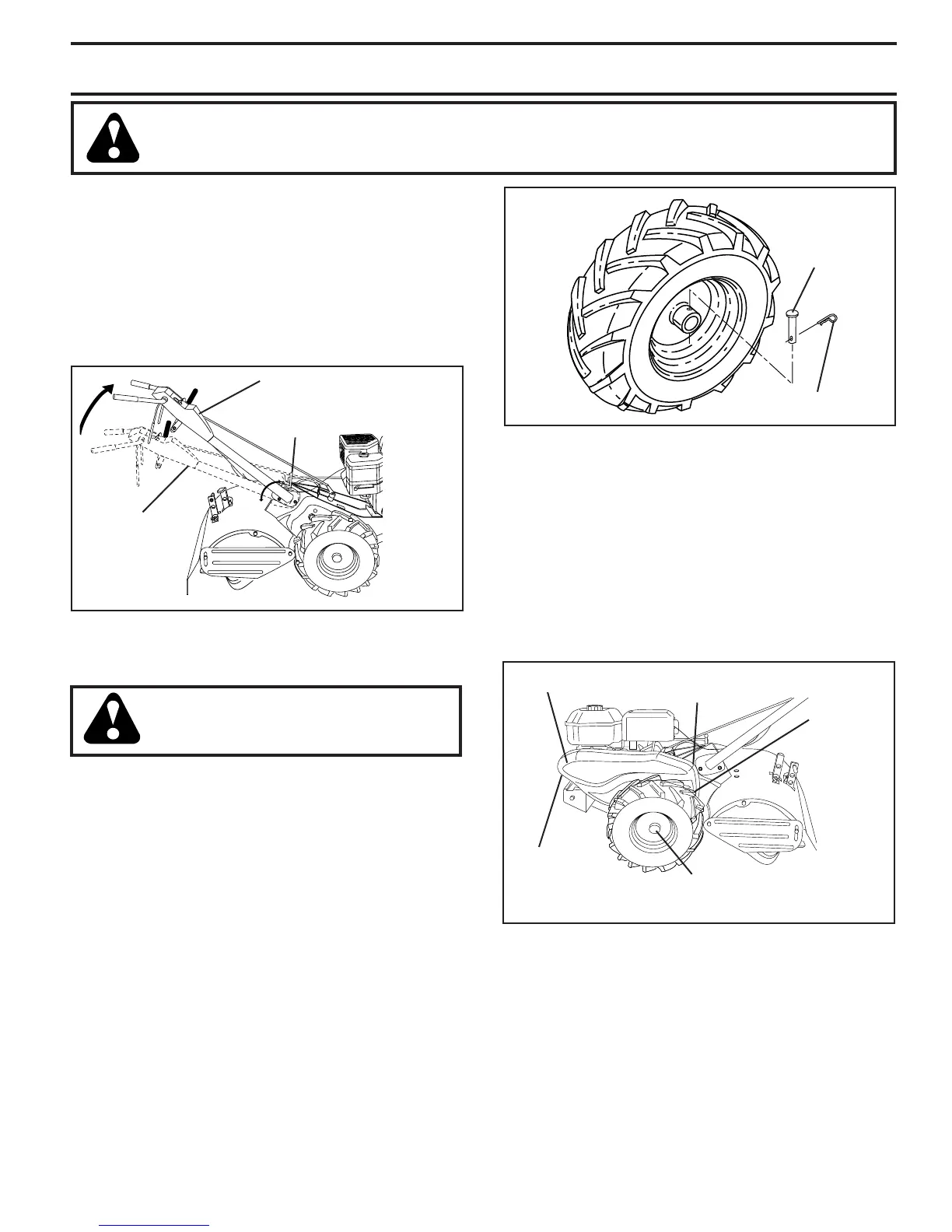

SERVICE AND ADJUSTMENTS
CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into
contact with plug.
TILLER
TO ADJUST HANDLE HEIGHT (See Fig. 23)
Select handle height best suited for your tilling conditions.
Handle height will be different when tiller digs into soil.
• First loosen handle lock lever.
• Handle can be positioned at different settings between
“HIGH” and “LOW” positions.
• Retighten handle lock lever securely after adjusting.
FIG. 23
HANDLE
(LOW POSITION)
FIG. 24
HANDLE LOCK
LEVER
HANDLE
(HIGH POSITION)
FIG. 25
SCREW
AND
WASHER
HEX NUT
AND
WASHER
(LOCATED
BEHIND
TIRE)
BELT GUARD
SCREW
AND WASHER
HAIRPIN CLIP
AND CLEVIS PIN
TO REMOVE BELT GUARD (See Fig. 25)
NOTE: For ease of removal, remove hairpin clip and
clevis pin from left wheel. Pull wheel out from tiller about
1 inch.
• Remove two (2) screws from side of belt guard.
• Remove hex nut and washer from bottom of belt guard
(located behind wheel).
• Pull belt guard out and away from unit.
• Replace belt guard by reversing above procedure.
TIRE CARE
CAUTION: When mounting tires, un-
less beads are seated, over infl a tion can
cause an explosion.
• Maintain 20 pounds of tire pressure. If tire pressures
are not equal, tiller will pull to one side.
• Keep tires free of gasoline or oil which can damage
rubber.
TO REMOVE WHEEL (See Fig. 24)
• Place blocks under trans mission to keep tiller from
tipping.
• Remove hairpin clip and clevis pin from wheel.
• Remove wheel and tire.
• Repair tire and reassemble.
tire_3
CLEVIS PIN
HAIRPIN CLIP
