2. Open the connector and put the boundary
wire in the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in.
above each connector.
5. Push the right connector onto the metal pin
on the charging station with the mark "AR".
6. Push the left connector onto the metal pin
on the charging station with the mark "AL".

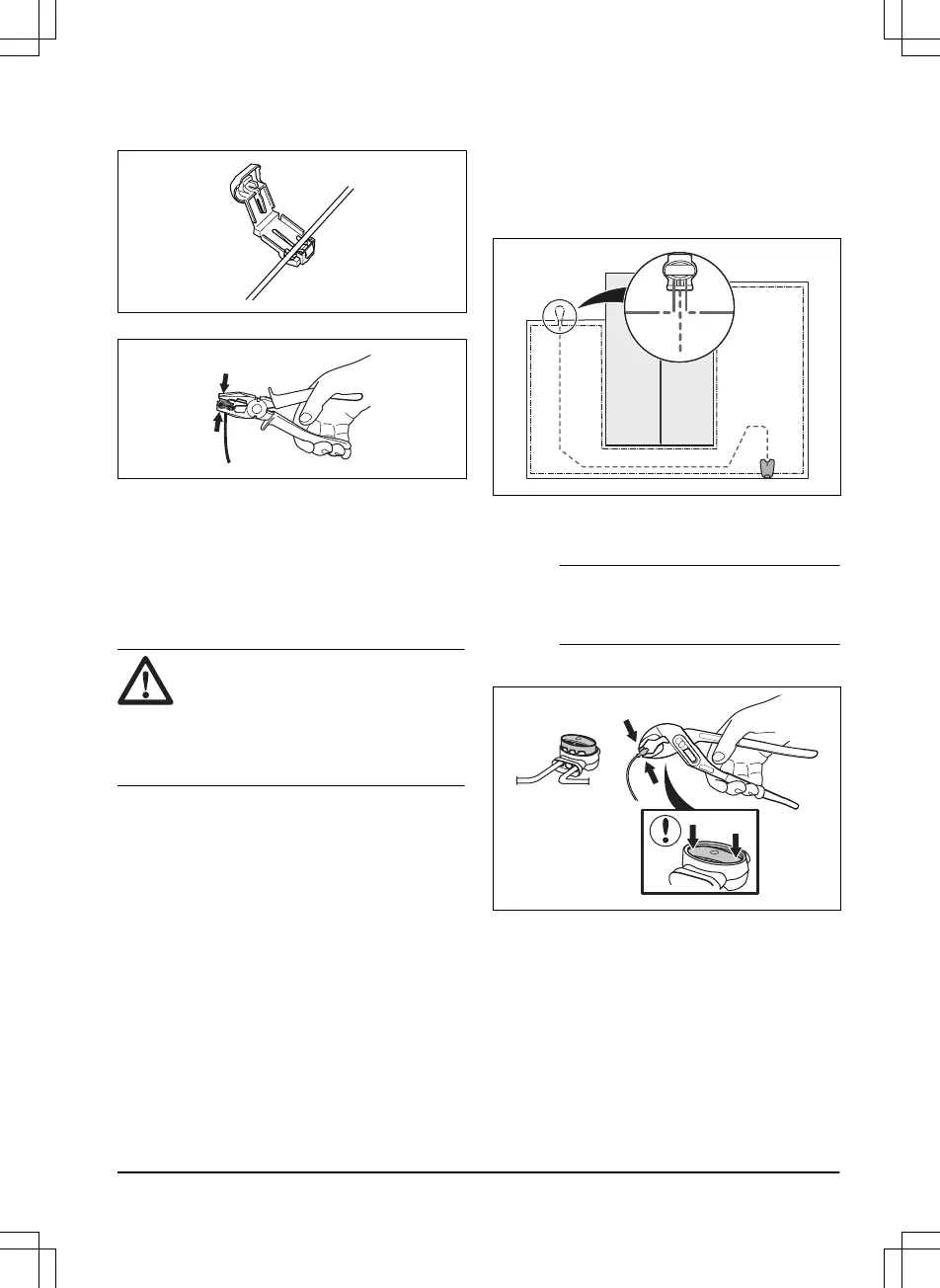

3.5.4 To install the guide wire
CAUTION:
Twinned cables, or a screw
terminal block that is insulated with
insulation tape are not satisfactory
splices. Soil moisture will cause the
wire to oxidize and after a time result in
a broken circuit.
1. Open the connector and put the wires in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wires 1-2 cm / 0.4-0.8 in.
above each connector.
4. Put the guide wires centrally below the
charging station plate, and push them
through the slot in the charging station
tower.
5. Push the connector onto the metal pin on
the charging station with the mark "G1, G2"
or "G3".
6. Disconnect the charging station from the
power outlet.
7. Put the cable mark on the guide wires.
8. Put the end of the guide wires at the eyelet
on the boundary wire.
9. Cut the boundary wire with a pair of wire
cutters.
10. Connect the guide wires to the boundary
wire with a coupler.
a) Put the 2 ends of the boundary wire
and the end of the guide wires into the
coupler.
Note: Make sure that you can see the
end of the guide wires through the
transparent area of the coupler.
b) Push the button on the coupler with an
adjustable pliers.
11. Attach the guide wires to the ground with
stakes or bury the guide wires in the ground.
Refer to
To put the wire into position with
stakes on page 24
or
To bury the boundary
wire or the guide wire on page 24
.
12. Connect he charging station to the power
outlet.
1201 - 004 - 25.03.2020
Installation - 23
