5. Adjustment and maintenance
5. Einstellungen und Wartung 5. Réglage et entretien
5. Afstellen en onderhoud 5. Ajustes y mantenimiento
5. Messa a punto e manutenzione

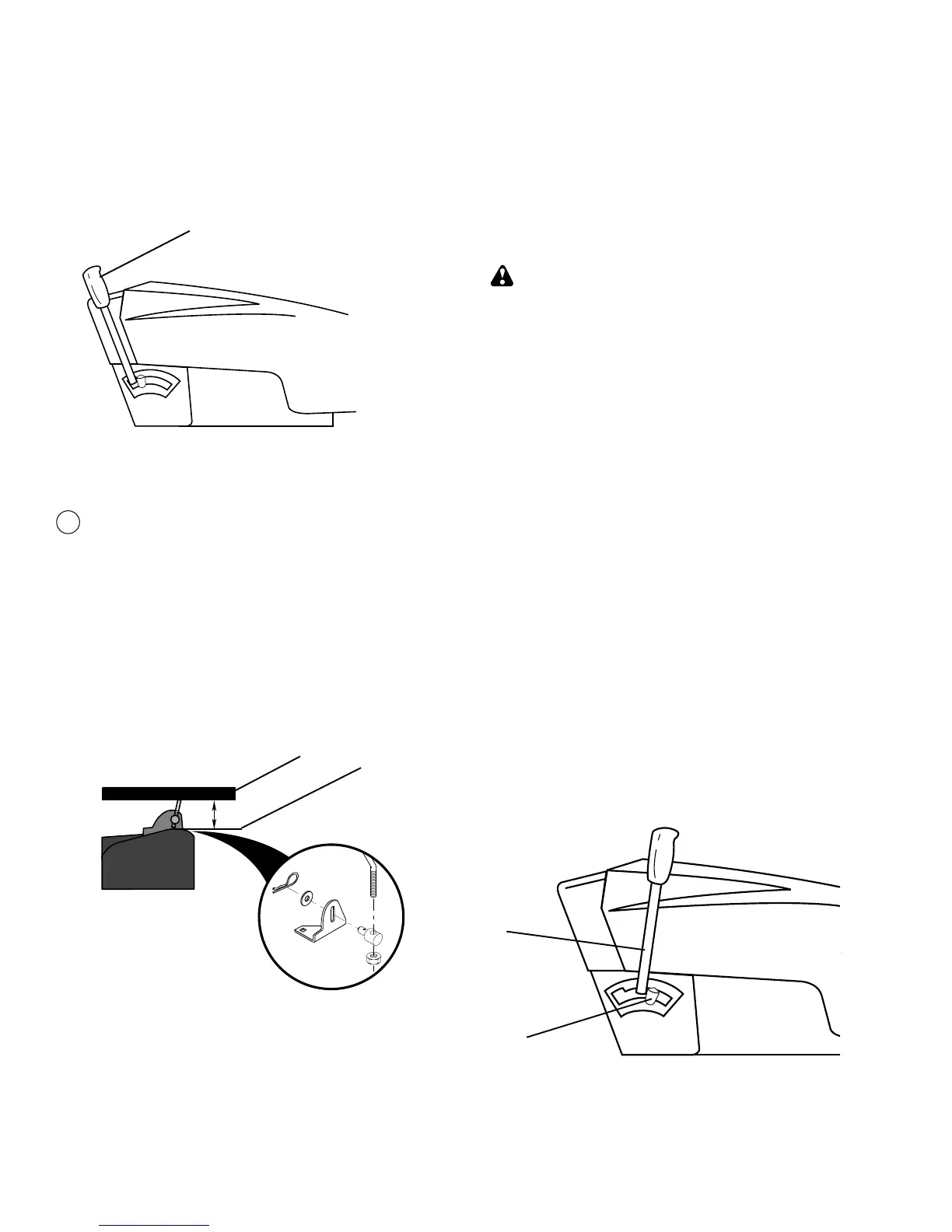

1. Mower lift lever "highest" position
2. Lower flange of chassis
3. Mower deck
4. Mower lift lever
5. Mower height adjustment knob
Eng
WARNING: Disconnect spark plug wire to prevent acciden-
tal starting before attempting any repair, inspection, or
maintenance.
Mower adjustment
NOTE: Before adjusting mower, tires must be properly
inflated.
• Inflate front tires to 14 psi
• Inflate rear tires to 12 psi
Park tractor on a smooth level surface. Raise mower lift lever
into highest (transport) position.
• Measure distance from top of mower deck to lower flange
of chassis (dim. "A"). Dim. "A" should be 3-3/8 to 3-1/2 inch.
• To adjust dim. "A", if required, lower mower to lowest
position. Remove hairpin clip in trunnion and withdraw
trunnion pin from bracket. Loosen trunnion nut and rotate
trunnion clockwise on lift link to decrease dim. "A" or
counter-clockwise on lift link to increase dim. "A".
• Tighten trunnion nut.
NOTE: Each full turn of trunnion will change dim. "A" by
1/16 inch. Re-insert trunnion into bracket with pin pointing to
left hand side of tractor. Reinstall hairpin clip.
Level mower side to side
• Place mower height adjustment knob in position "3". Lower
mower lift lever to height adjustment knob.
6
3
2
1
4
5
1
2
3
"A"
6
3
2
1
4
5
