37
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 19 01-20 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1-1/2
9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10 532 19 55-30 Pan Seat
11 532 16 63-69 Knob Seat
12 532 17-46-48 Bracket Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 532 13 43-00 Spacer Split 28 x 96 Yel Zinc
16 532 12 12-50 Spring Cprsn 1 27 Blk Pnt
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 unc
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x 62
41 532 14 06-75 Strap Asm. Fender
9
9
11
1
24
16
15
12
13
17
7
7
10
5
14
8
8
seat_lt.knob_18
2
6
22
21
41
5
25
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
REPAIR PARTS
TRACTOR - MODEL NO. LTH1797 (96011022101), PRODUCT NO. 960 11 02-21

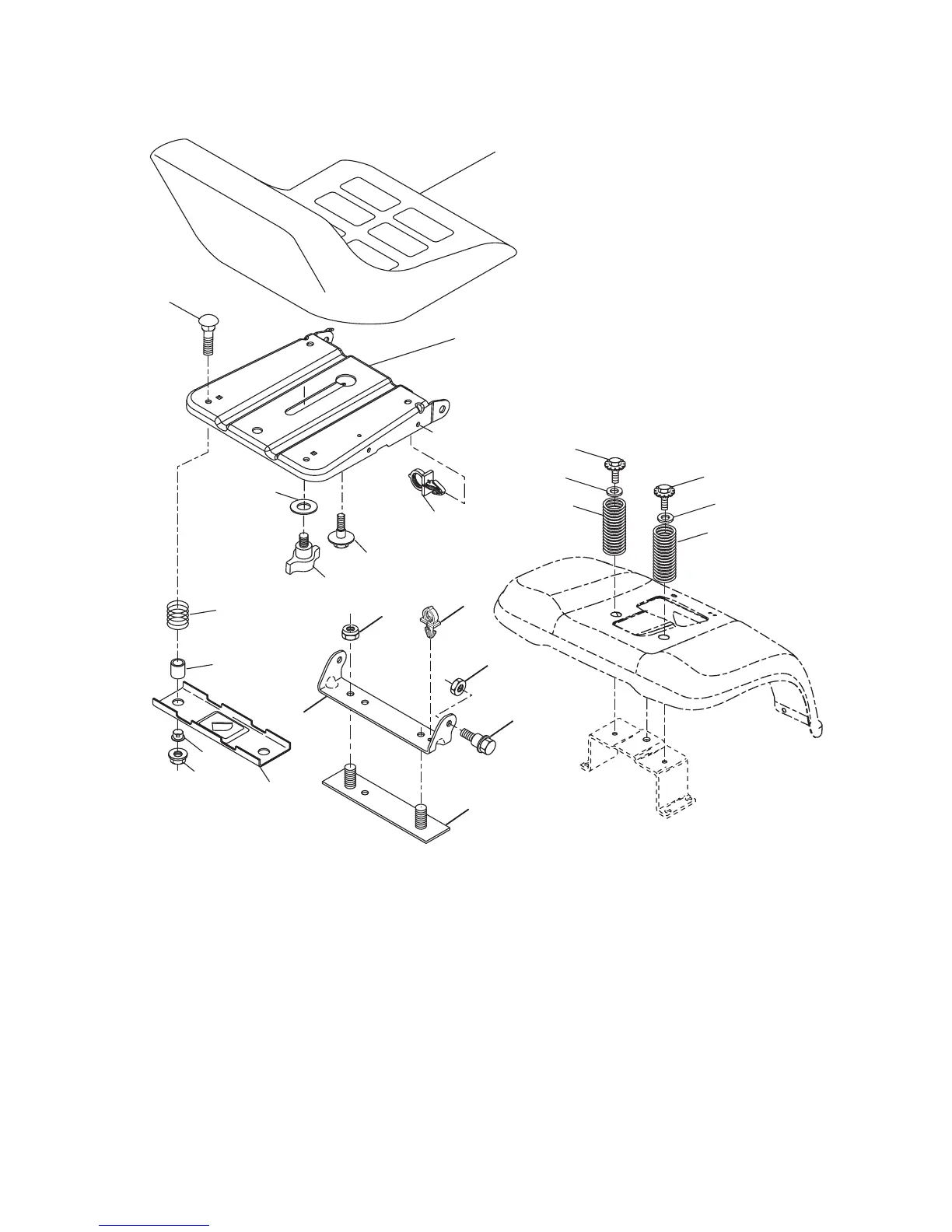

SEAT ASSEMBLY
