14

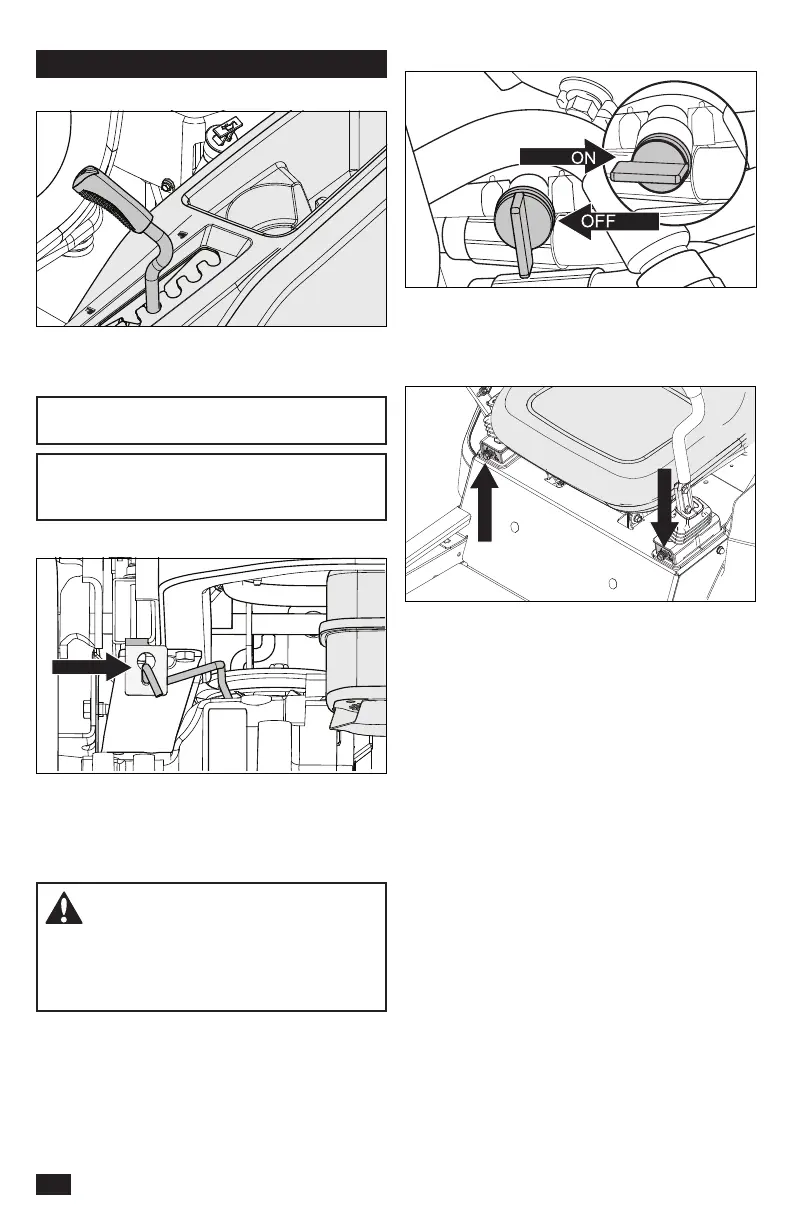

CONTROLS
Fuel Shut Off Valve
The fuel shut off valve is located at the right rear
of the seat. The valve is off when the handle tab is
turned perpendicular to the fuel line.
Bypass Linkages
Transaxle bypass linkages must be engaged
when pushing or pulling the mower. The release
levers are located on each side of the rear of the
unit below the rear engine guard. See Moving
Machine By Hand in the Operation section.
WARNING! Bypass linkages are
located close to the mufer. To prevent burns,
the engine should be shut off and allowed
to cool before the bypass linkage levers are
handled.
Tracking
If the mower is not tracking straight, check the
air pressure in both rear tires. Recommended air
pressure for the rear tires is 15 psi (1 bar).
1. Tracking adjustments are made using the
tracking bolts. The tracking bolts limit the
motion control levers when in the full-forward
position.
2. For preliminary tracking adjustment, move
unit to an open, unobstructed area such as an
empty parking lot or open eld.
3. Using a 1/2" wrench, back the tracking bolts
out until ush with nut.
4. Test operate unit by driving it at full throttle
and the full forward position on both motion
control levers. Gradually turn in the tracking
bolt on the right hand side until the unit
noticeably starts drifting right.
5. Drive forward at full throttle with both motion
control levers in the full forward position.
Gradually turn in the left tracking bolt until unit
tracks straight.
Cutting Height Lever
To set the deck cutting height, pull the cutting
height lever inwards and move it to the desired
height notch.
IMPORTANT INFORMATION Always raise the
deck to the highest position for transport.
IMPORTANT INFORMATION To obtain an
even cutting height, it is important that the air
pressure in all tires is 15 psi / 103 kPa / 1 bar.
