602900_0211 3-11
11.43 cm) in 1/4” (.64cm) increments. The holes in the height
adjusting bar are spaced at 1/2” (1.27cm) intervals. By turning
the height adjusting stop around, 1/4” (.64cm) increments can
be attained due to the 1/4” (.64cm) plate that is part of the stop.

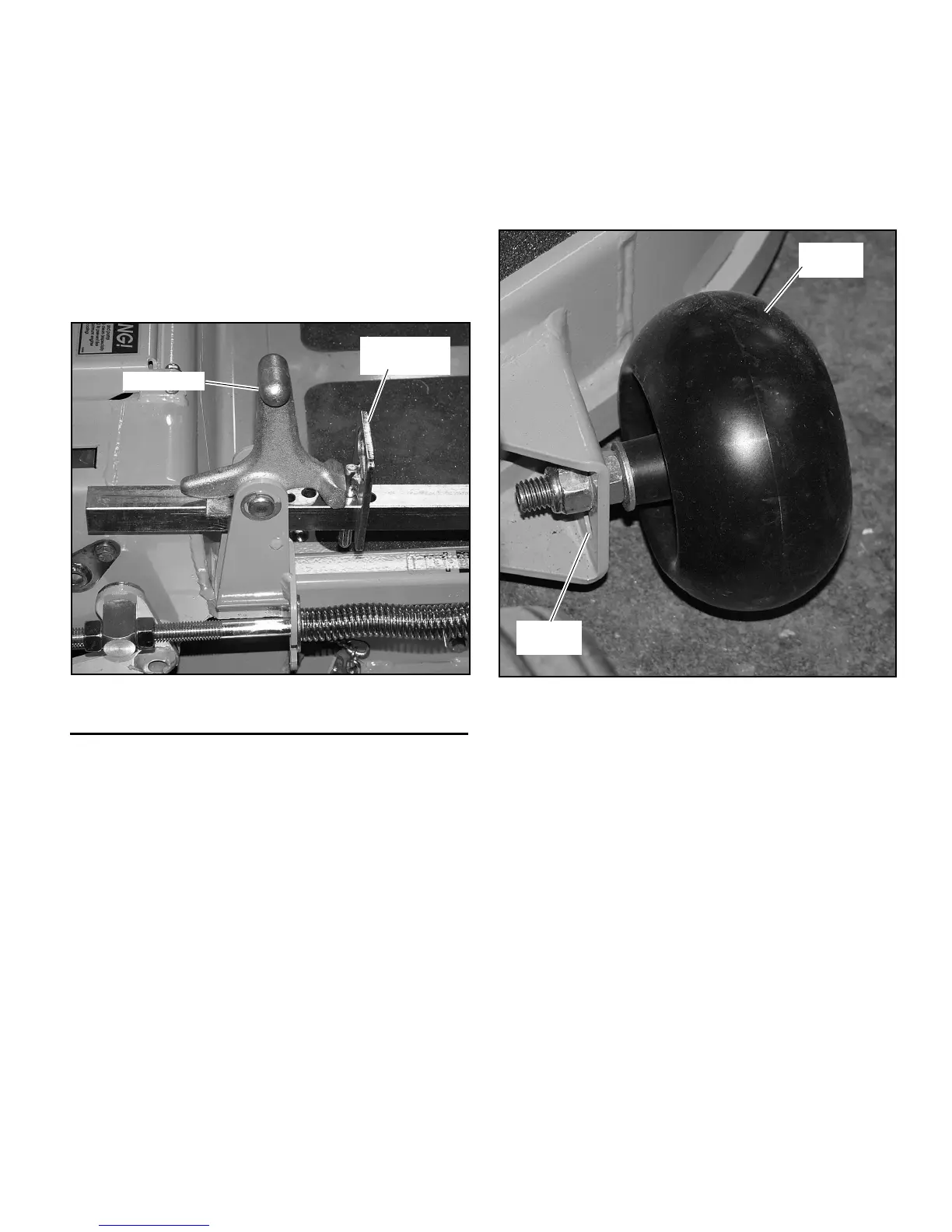

Figure 3-11
EXAMPLE: When the height adjusting stop is placed in the
1-1/2” (3.81 cm) hole, with the 1/4” (.64 cm) plate facing to
the front of the unit, the cutting height is at 1-1/2” (3.81 cm).
When the height adjusting stop is placed in the 1-1/2” (3.81
cm)hole, with the 1/4” (.64 cm) plate on the operator’s side of
the hole, the cutting height is at 1-3/4” (4.45 cm).
The notch located at the rear of the height adjusting bar
engages the stop handle when the deck lift pedal is fully
depressed. This sets the deck in transport mode.
Anti-scalp wheels
Anti-scalp wheels are standard on Hustler FasTrak units.
These anti-scalp wheels are designed to minimize scalping
when mowing on rough uneven terrain. Figure 3-12
Anti-scalp wheels can be installed in two positions. With the
wheel installed in the bottom hole, the wheel is located 2”
(5.08cm) below the mower blades. This setting is preferred
when mowing at cutting heights of 2-1/2” (6.35cm) or higher.
When the wheel is mounted in the top hole, it is located 1”
(2.54cm) below the mower blades. This is the acceptable setting
for mowing at cutting heights of 1-1/2” (3.81cm) or higher.
Figure 3-11
Stop handle
Height
adjusting stop
Figure 3-12
Anti-scalp
wheel
Adjusting
holes
