When mounting blades, rotate them after installation to
ensure blade tips do not touch each other or sides of the
mower.
Seat Adjustment
There are two seat options available for these mowers. The
following are the adjustments for each of these seats.
Seat (Option 1)
Use the seat release lever to slide the seat forward and
rearward until a comfortable operating position is attained.
Figure 4-17
Seat (Option 2)
The seat can be adjusted two different ways to obtain the
most comfortable position:
1. Use the seat release lever to slide the seat forward and
rearward. Figure 4-18
2. Adjust the seat firmness by turning the ride
adjustment knob. Figure 4-18
Steering Control Lever Adjustment
The steering control levers can be adjusted for operator
comfort.
A. To pivot the upper control levers forward or rearward,
loosen the cap screws that attach the upper control
lever to the lower lever. Then, pivot the upper control
lever. Tighten the cap screws. Figure 4-19
B. To lower and raise the control levers, remove the cap
screws. Slide the upper control lever up or down and
align the holes in it with the holes in the lower lever.
Re-install the cap screws and tighten.
The steering control levers should be adjusted so that they
align with each other when in the neutral position.

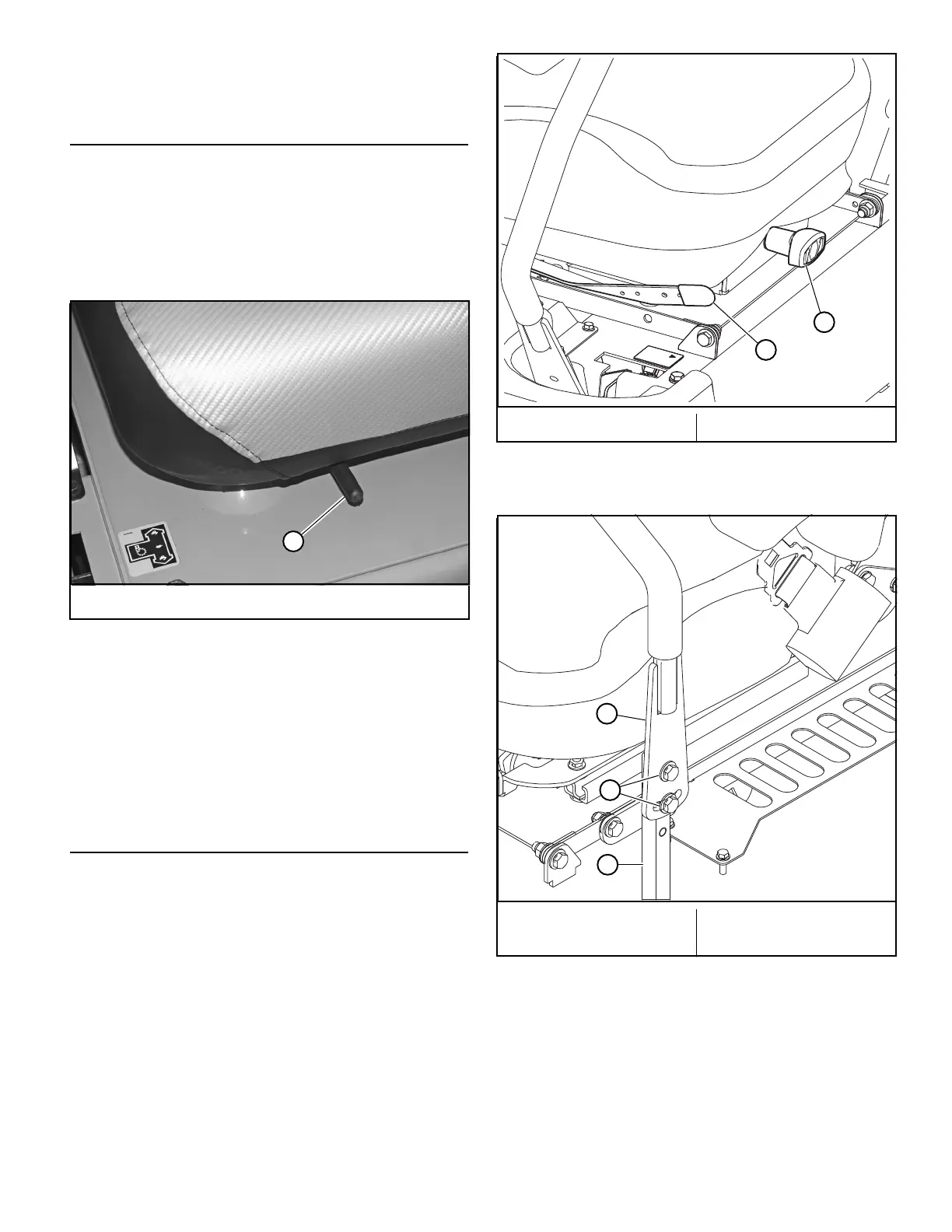

A. Seat release lever
Figure 4-17
A
A. Seat release lever B. Ride adjustment knob
Figure 4-18
A. Upper control lever
B. Cap screws
C. Lower control lever
Figure 4-19
A
B
A
B
C
