HUSTLER Super Z User Manual

3-10 114565_0112

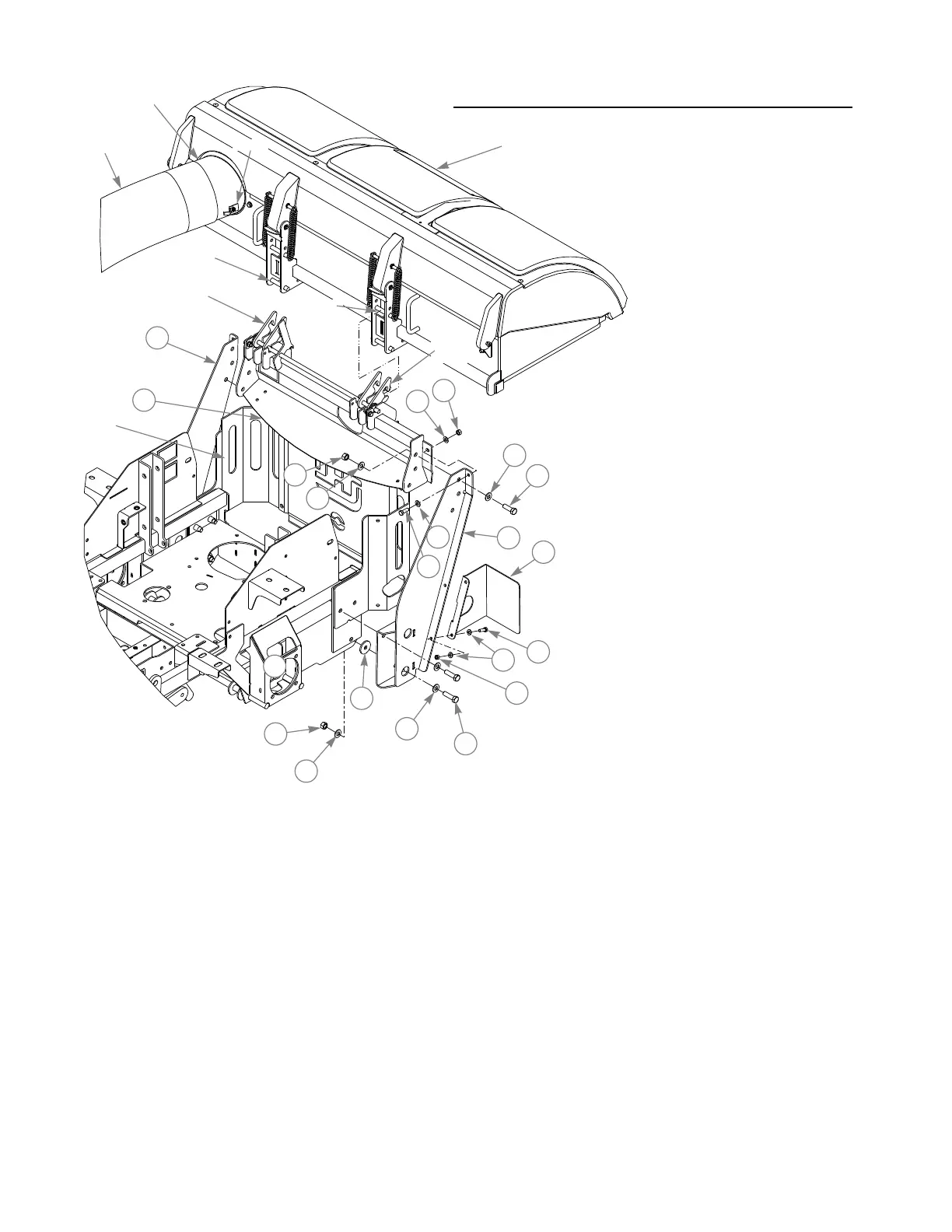

Figure 3-13
INDEX
NO.
PART
NO.
DESCRIPTION
1 767954 FW .406 X .812 X .060 SAE
2 114168
113781
MOUNT, RS (X-ONE)
MOUNT, RS (SUPER Z)
3 114169
113782
MOUNT, LS (X-ONE)
MOUNT, LS (SUPER Z)
4 113870
113773
PIVOT MOUNT (X-ONE)
PIVOT MOUNT (SUPER Z)
5 054502 NT .375-16 HX GRD 5 ZNY
6 008193 NT .500-13 HX G5 ZNYC
7 767962 FW .531 X 1.063 X .090 SAE
8 008193 NT .500-13 HX G5 ZNYC
9 768523 FW .343 X .687 X .051/.080H
10 036236 CS .312-18 X 1.000 HX G5
11 034272 NT .312-18 HX G5 ZNYC
12 114259 BAG SHIELD
13 074252 CS .500-13 X 1.500 HX G5
14 036244 CS .375-16 X 1.000 HX G5
15 017616 CS .500-13 X 1.750 HX G5
6
Hood
Assembly
7
6
6
7
11
Mount
Assembly
2
1
15
7
12
5
9
10
13
3
7
8
1
14
4
Lower
pivot pin
Upper
pivot pin
Hood
latch
Flex tube
Clamp
Elbow
chute
Catcher Hood Assembly
Rear
bumper
