114565_0112 3-9
latch. Figure 3-11
5. Raise the discharge cover on the blower housing. Slide
the outlet adapter into place on the blower outlet. Secure
in place with the discharge cover latching the rod handle
of the outlet adapter. Refer to Figure 3-1, Figure 3-2,
Figure 3-3, Figure 3-4 or Figure 3-5
6. Slide one end of the flex tube onto the blower outlet tube.
Figure 3-12
7. Slide the other end of the flex tube over the catcher hood
elbow chute and secure in place with the clamp. Figure 3-
12
8. Locate the holes that are located under the step tread on
the counter weight mount. Using the holes as a guide cut
the step tread away from the holes to allow the mounting
bolts to go through. Figure 3-14
9. Locate the holes that are located under the step tread on
the mower frame. Using the holes as a guide cut the step
tread away from the holes to allow the mounting bolts for
the counter weight mount to go through. Figure 3-14
10. Attach the counter weight mount to the front of the
mower. Figure 3-14
NOTE: When attaching the counter weight mount to a
48” deck, the inside set of holes is used for the u-bolts to
attach to the front wheel arms.
11. Slide the weights vertically onto the mount and lock in
place using the weight lock plate and tighten knobs.
Figure 3-14
12. Place the bags in the catcher assembly and close the
catcher hood. Make sure the catcher lid latches in place.
NOTE: Make sure that the non-mesh side of the bag is
towards the engine.
13. Reconnect the negative battery cable.
14. Increase the mower’s drive tire’s pressure to 16 psi (110
KPa). The drive tires will need to have to the air pressure
increased to support the additional weight of the catcher
system and when grass clippings are in the bags.
NOTE: When the catcher system is removed the air pres-
sure in the tires should be decreased to the normal operat-
ing range of 8 - 12 psi (55 - 83 KPa).

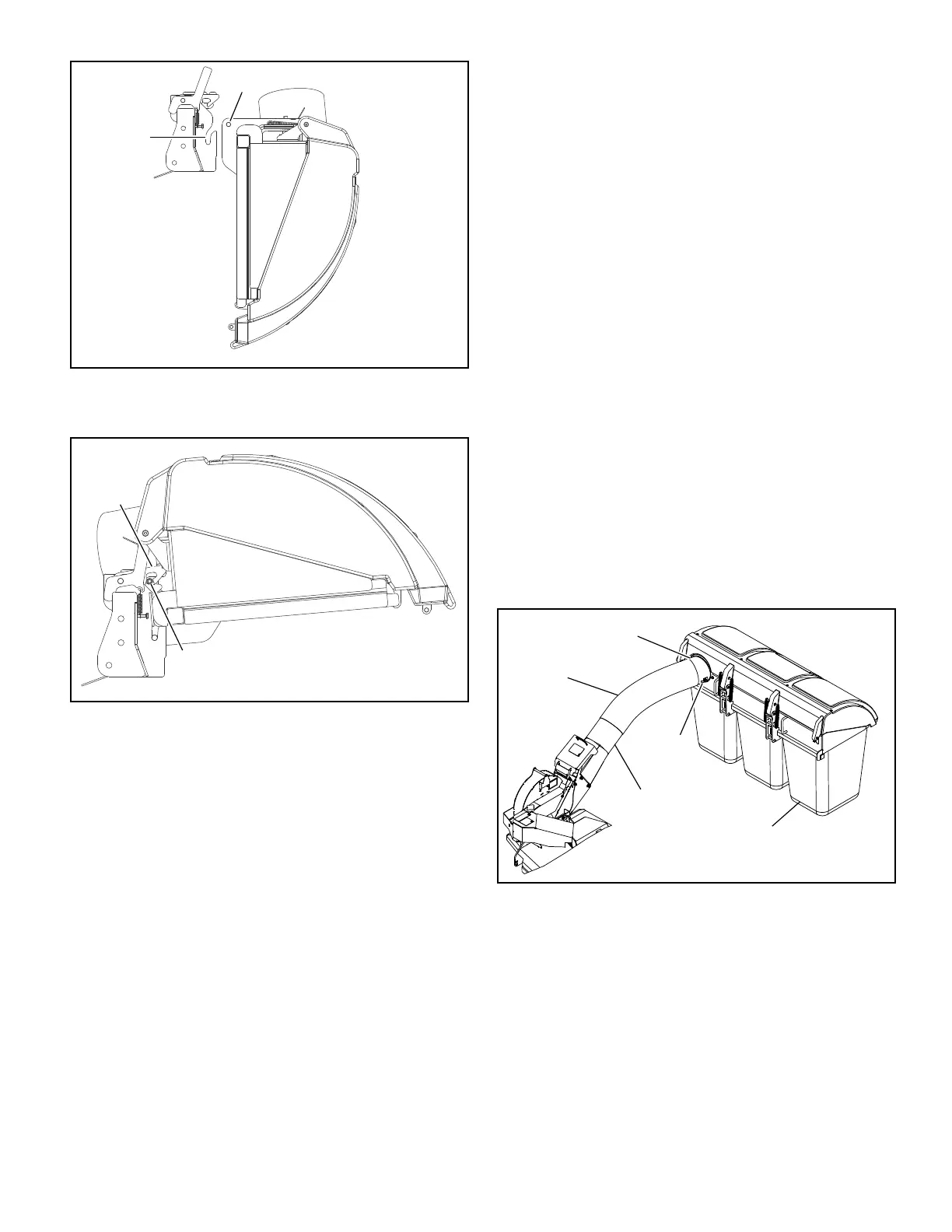

Figure 3-10
Figure 3-11
Slot
Pin
Latch
Pin
Figure 3-12
Blower outlet
tube
Catcher lid
elbow chute
Clamp
Flex
tube
Non-mesh
side of bag
