8-1
GROUP 1 STRUCTURE
SECTION 8 MAST

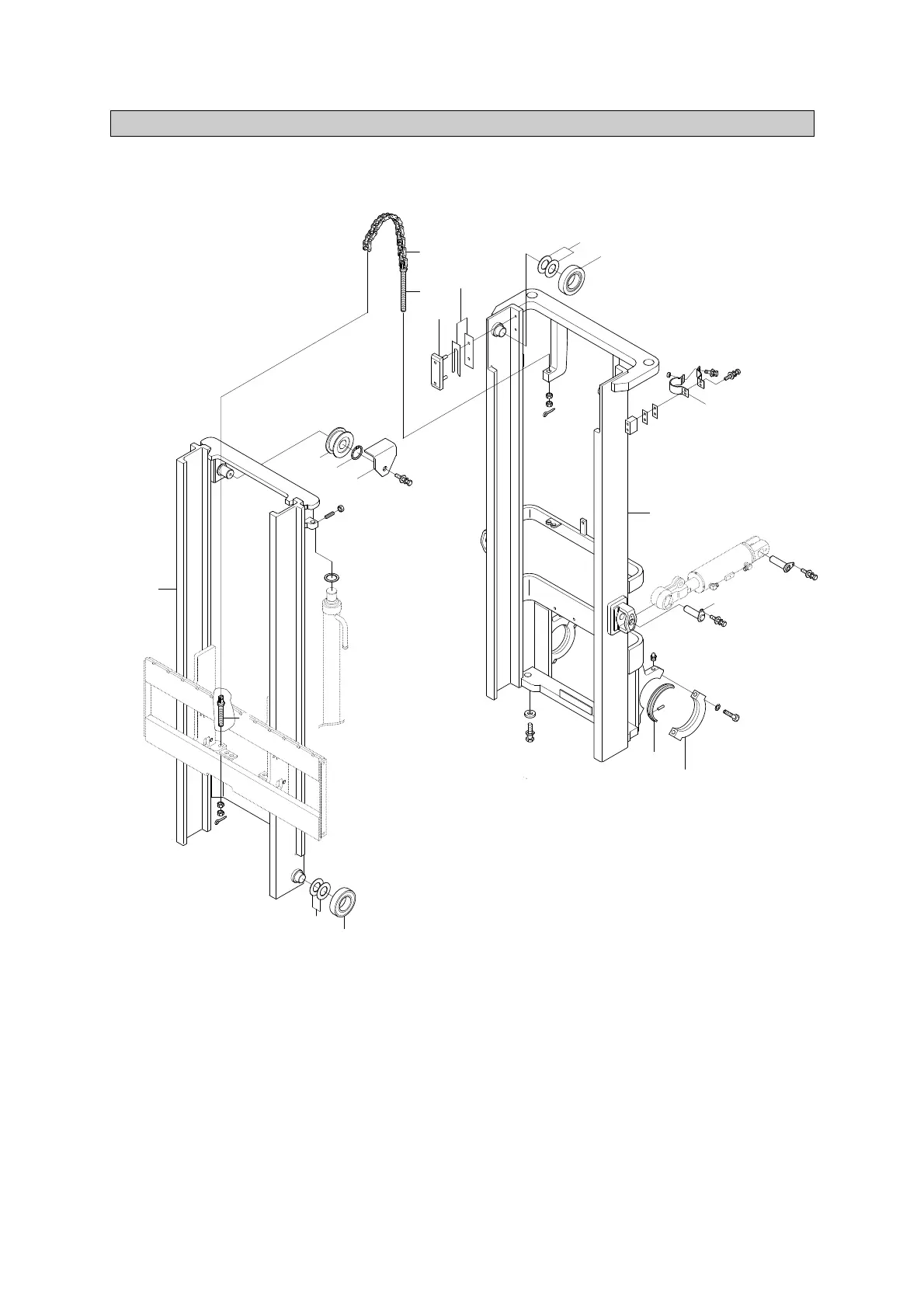

1. 2 STAGE MAST(V MAST)
11
7
12
9
8
2
6
10
16
4
5
1
14
15
3
16
9
CARRIAGE
LIFT CYLINDER
TILT CYLINDER
13
15L7MS01
1 Outer mast
2 Inner mast
3 Roller
4 Tilt cylinder pin
5 Mast support cap
6 Bushing
7 Chain sheave
8 Chain
9 Anchor bolt
10 Roller
11 Retaining ring
12 Chain guard
13 Clamp
14 Back up liner
15 Shim(0.5, 1.0t)
16 Shim(0.5, 1.0t)
