3-26

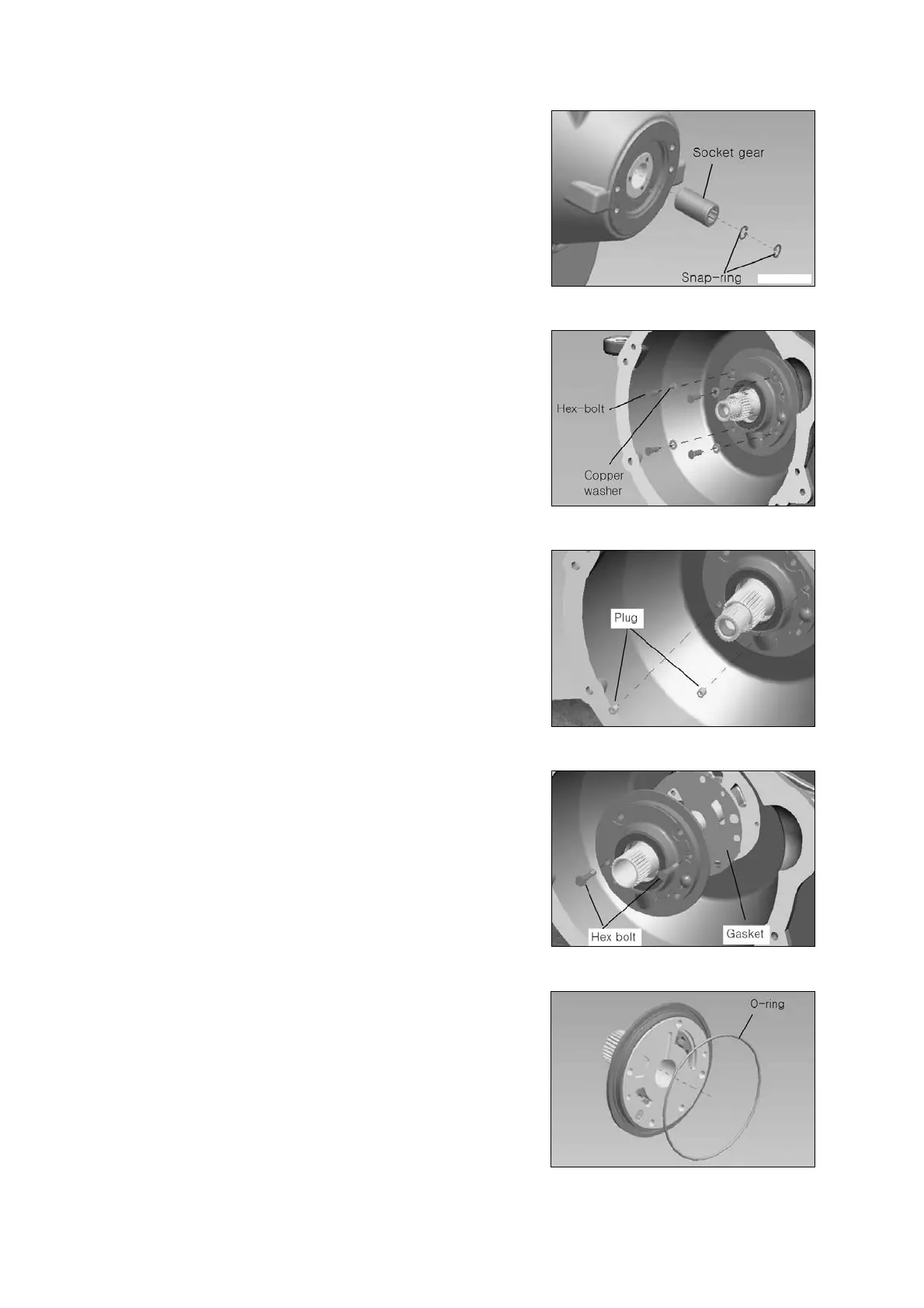

Remove the socket gear.
Next remove the snap-ring at socket gear.
(5)
15L7ATM005
15L7ATM006
15L7ATM007
15L7ATM008
Remove the pump sub assy + gasket using the
plug hole for pulling out from the T/C housing.
(use M8
×1.25P×38L hexagon bolt)
③
15L7ATM009
Remove the O-ring at pump sub assy.
④
Removal the oil pump sub assy.
Remove the hexagon bolt (M8×1.25P×38L), and
then remove the copper washer.
(6)
①
Remove the plug. (PT 1/8)
②
