DO-IT-YOURSELF MAINTENANCE
2

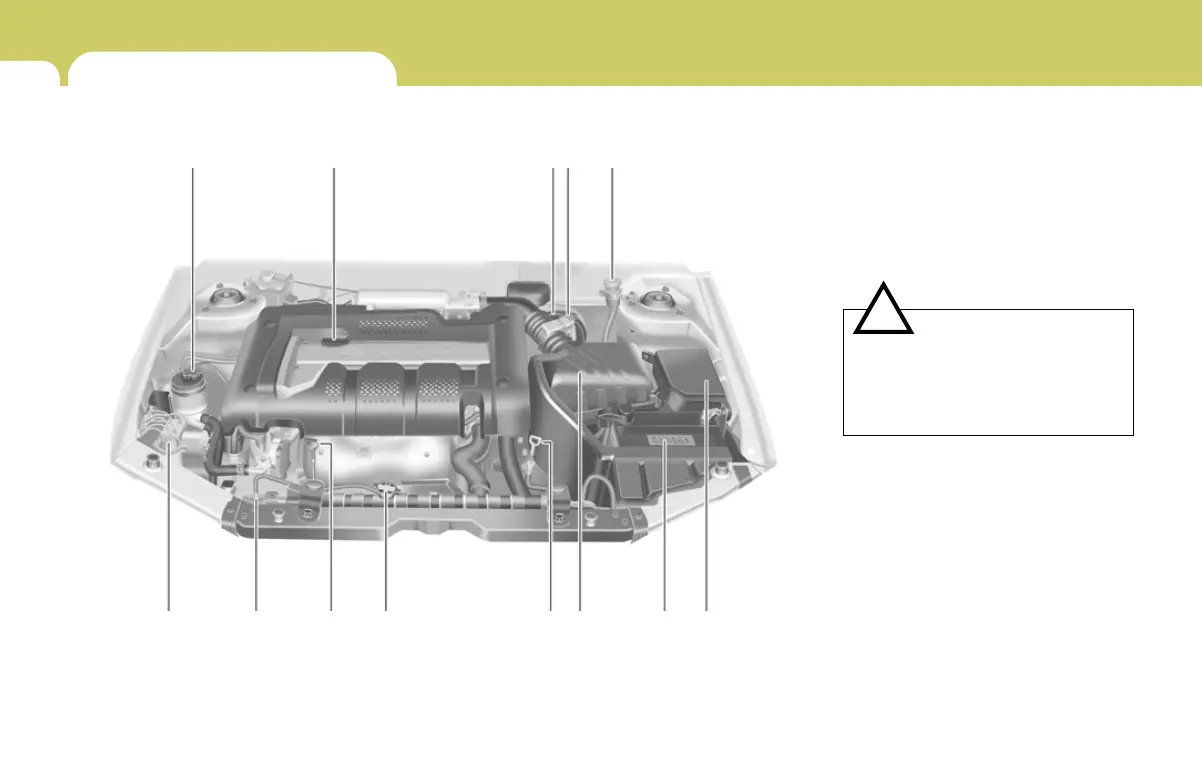

ENGINE COMPARTMENT
G010A02E-GAT
(2.0L CVVT/SULEV)
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake booster
4. Brake fluid reservoir
5. Clutch fluid reservoir (If installed)
6. Windshield washer fluid reservoir cap
7. Engine coolant reservoir
8. Engine oil level dipstick
9. Radiator cap
10. Automatic transaxle fluid level dipstick
11. Air cleaner filter
12. Battery
13. Relay box
CAUTION:
When inspecting or servicing the
engine, you should handle tools
and other heavy objects carefully so
that the plastic cover of the engine
is not damaged.
!
678
9
10 11 12 13
12 345
G010A02E
