6- 30 DO-IT-YOURSELF MAINTENANCE
G200D02Y-GAT

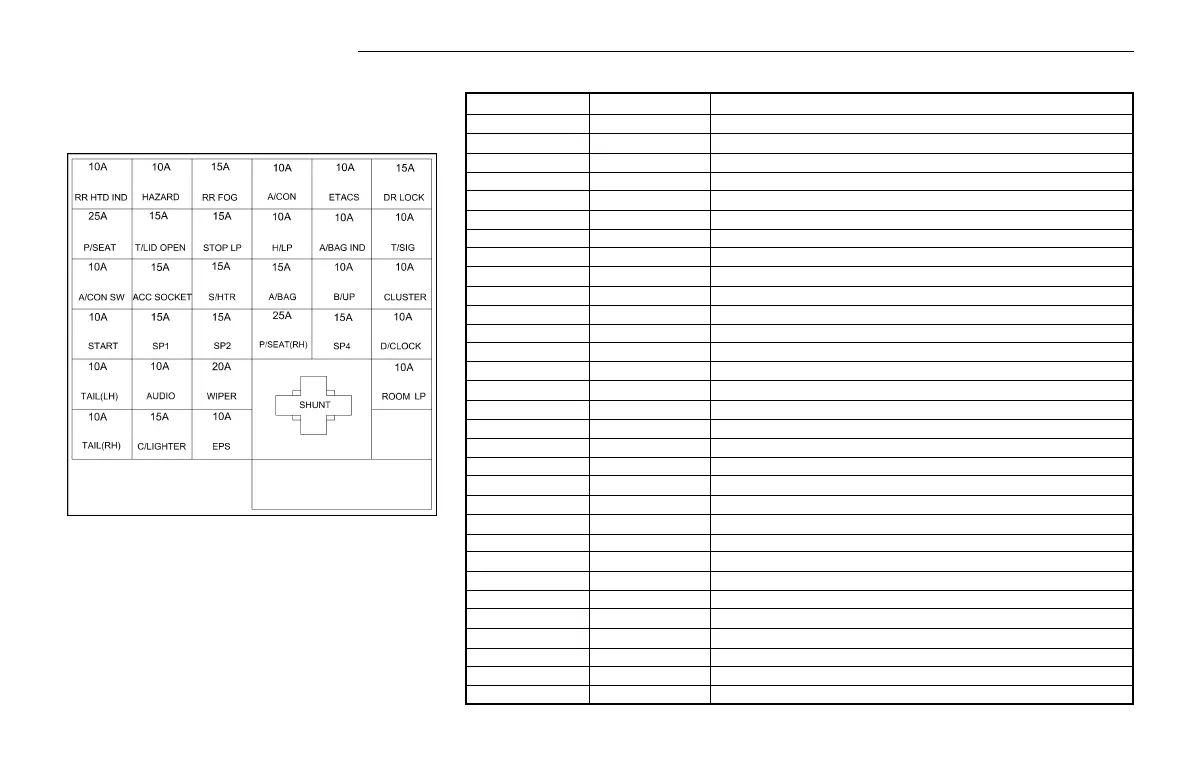

Instrument panel junction box
DESCRIPTION FUSE RATING PROTECTED COMPONENTS
RR HTD IND 10A Rear window defroster, Outside rear view mirror heater
HAZARD 10A Hazard light, Turn signal lights
RR FOG 15A Rear fog light
A/CON 10A Air conditioning system
ETACS 10A ETACS, Keyless entry system, Door lock system
DR LOCK 15A Power door lock
P/SEAT 25A Power seat
T/LID OPEN 15A Remote trunk lid
STOP LP 15A Stop lights
H/LP 10A Head light
A/BAG IND 10A Air-bag
T/SIG 10A Turn signal lights
A/CON SW 10A Air conditioning system
ACC SOCKET 15A Power outlet
S/HTR 15A Seat heater
A/BAG 15A Air-bag
B/UP 10A Backup lights
CLUSTER 10A Cluster
START 10A Engine switch
SP1 15A Spare fuse
SP2 15A Spare fuse
P/SEAT (RH) 25A Power Seat
SP4 15A Spare fuse
D/CLOCK 10A Digtal clock
TAIL(LH) 10A Position lights, License plate lights, Tail lights
AUDIO 10A Audio
WIPER 20A Wiper
ROOM LP 10A Dome lights, Front door edge warning lights
TAIL(RH) 10A Position lights, License plate lights, Tail lights
C/LIGHTER 15A Cigar lighter
EPS 10A
