Hyundai HYBCF31 User Manual

2. QUICK START
You can also check out our online video at www.youtube.com/hyundaipowerequip.co.uk
2.1. This guide is meant to serve as a quick reference for operating your Hyundai 4 Stroke grass
trimmer & brushcutter it is for convenience and the user should read the safety section first.
FOR OUTDOOR USE ONLY.
This 4 Stroke grass trimmer & brushcutter produces carbon monoxide - a poisonous, colourless &
odourless gas that can cause death or serious injury. Petrol is highly flammable, always handle with
extreme care and in a well ventilated area.
Always remove HT lead from spark plug when checking machine or changing parts.
2.2. This product includes, Main unit, Operators handle, Trimmer head shaft, Bump trimmer head,
3 toothed - Brush cutter blade, 8 toothed - Brush cutter blade, Brush cutter blade guard, Spare 2.5
mm nylon cord, Full harness, Gloves, Face shield, Ear defenders, Tool kit, Spare spark plug, Fuel
bottle, Oil filler cup, User manual, Warranty registration from, Customer notice (removal of circlip).
2.3. At this point, check that you have all of the included items listed above. If any are missing or
damaged, call 01646 687 880 or email info@hyundaipowerequipment.co.uk
.
2.4. Trigger and handlebar assembly.
2.4.1.
Trigger assembly.

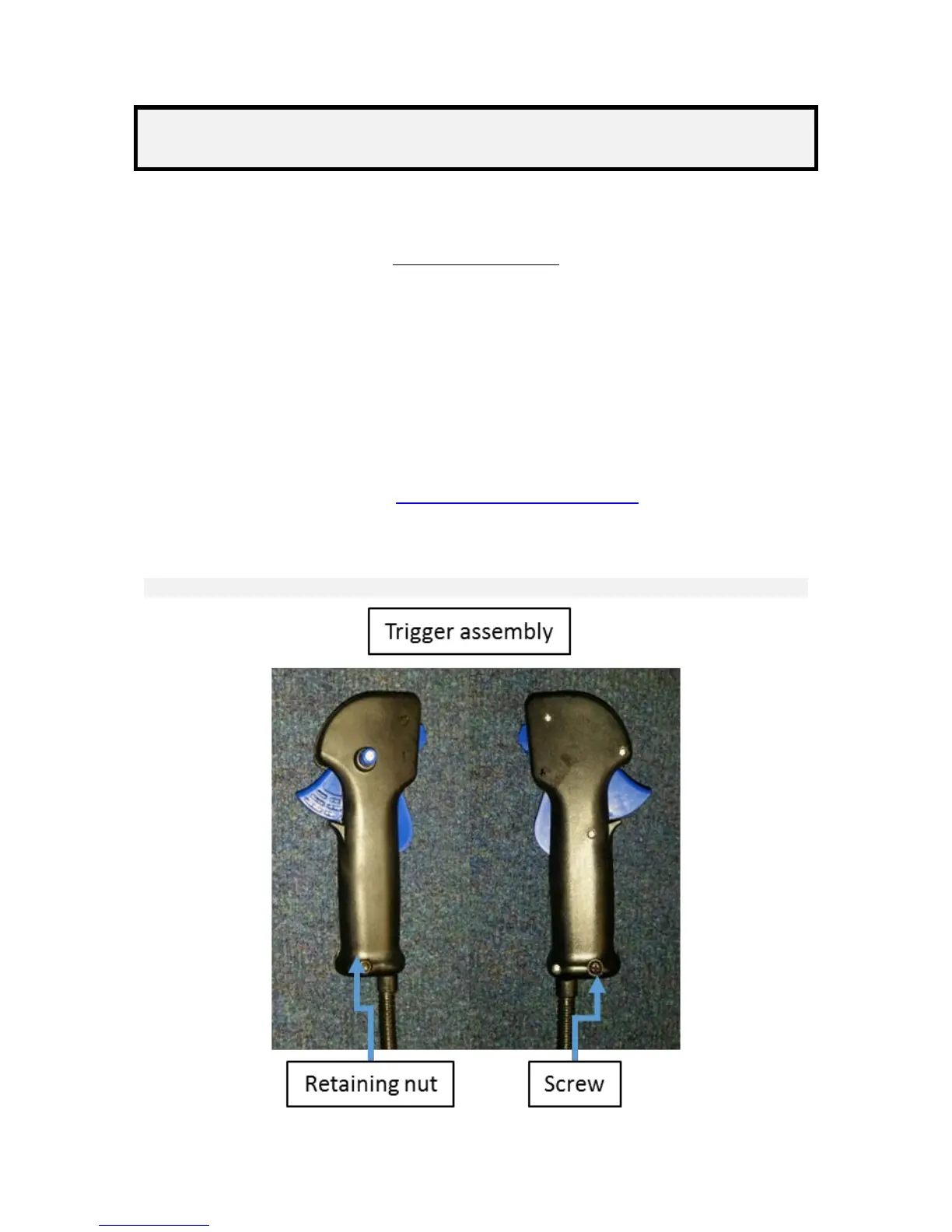

Undo the Screw from the trigger assembly and remove both the screw and retaining nut.
Page 8
Ver 4 - September 2016

Hyundai HYBCF31 Specifications

General

Engine Type	1E139F - Air cooled, four stroke, single cylinder petrol engine
Engine Size cc	31
Oil Capacity ml	310
Fuel tank capacity ml	600
Rated Power kw	0.7
Fuel Ratio/Fuel Type	Unleaded regular
Noise Level dB	113
Rated Speed rpm	6000
Drive Type	Direct
Start Method	Recoil
Clutch type	Centrifugal type
Rotation direction	Counter-clockwise (viewed from top)
Cutter head	Brush Cutter: 255mm, Grass Trimmer: 430mm
Cutter blade mm/teeth	1.6 /3
Cutting Width mm /Length mm /Diameter mm	255 Brush cutter/430 grass trimmer

Weight and Dimensions

Gross Weight kg	8.5
Dry Weight kg	7.0
Fully Assembled Dimensions L x W x H	1820 x 750 x 500
Extensions mm/kg	N/A
Box Dimensions L x W x H mm	1070 x 300/105 x 295
