29
ENGLISH
ADJUS
T
MEN
T
Setting the cutting height
As shown in Fig 15
CAUTION! Adjust the cutting height only
when the engine is switch off the spark plug
Boot has been pulled.
The cutting height is centrally adjusted with
Cutting height adjusting handle. Different
cutting Heights can be selected.
Pull the adjusting handle out and select the
desired cutting height. The handle snaps Into
the desired position.
From position 1 to position 7. The cutting
height range from 25mm to 75 mm.
Setting required function
NOTE: This lawn mower has four functions. These functions can be
converted by changing accessory setting. Please see the following
chart for detail setting.
To convert mower
mulching plug
Grass bag side discharge duct
For rear discharging
×
× ×
For rear bagging
×
√
×
For mulching
√
×
×
For side discharging
√
×
√
“√”: installed “×” :removed
10
11
FIG 15
OPERATION
Start and stop the engine
WARNING: the blade begins to rotate
as soon as the engine is started
NOTE: do not operate the machine in enclosed or poorly
Ventilated areas as the exhaust gas contains toxic substance.
Keep hands , feet ,hair and clothing away from
All the moving parts of the machine . the exhaust and other
Parts of the machine will become hot during use.
Make sure that the blade is securely fastened before
starting the engine.
NOTE: to start the engine make sure that the spark plug boot is located on
the plug and the machine is filled with sufficient oil and petrol.

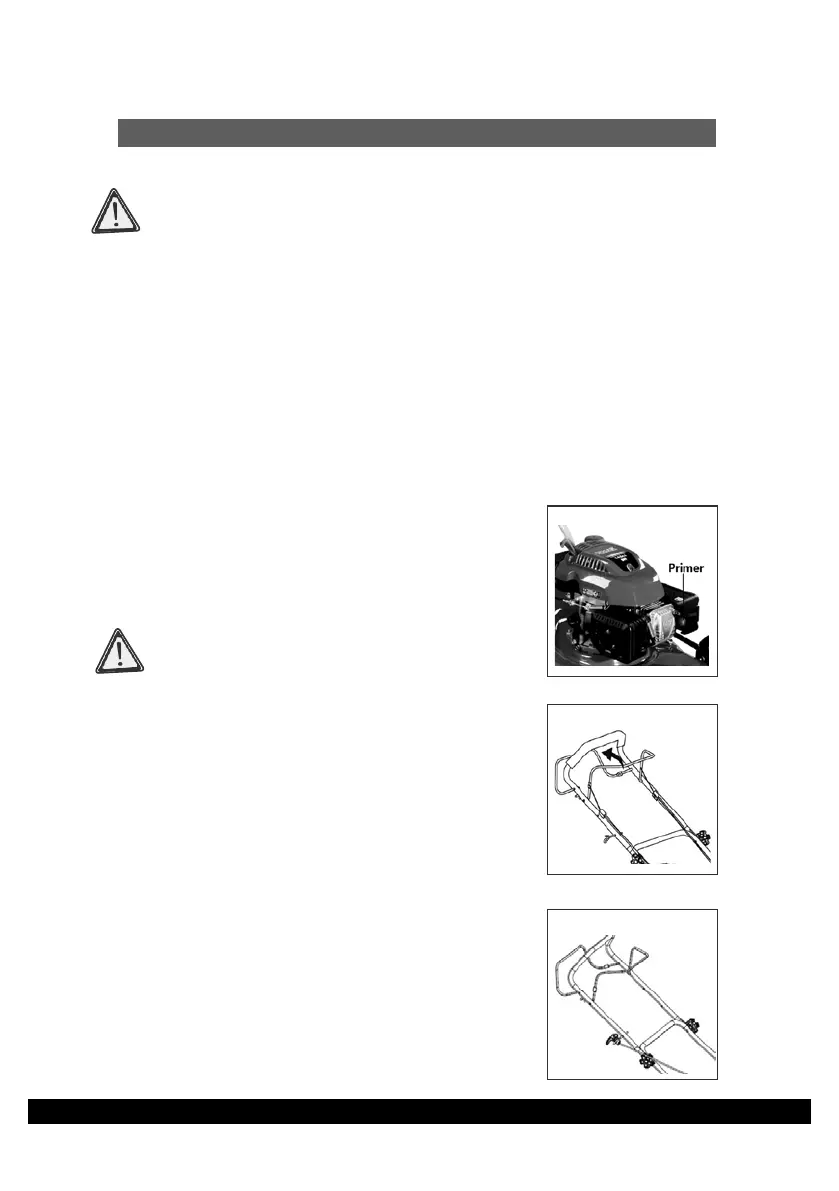

To start the engine
As shown in Fig 16-17
1.
When starting a cold engine, press down the Primer
fully 3 times.
WARNING! Too much presses on primer May
cause engine flooded When starting a warm
Engine, the primer does not need to be used. If
the engine stops due to a lack of petrol, refill and
press down the primer 3~5 times.
2.
Stand behind the mower. Pull the engine Start/stop
lever toward upper handle. With one hand. And place
the other hand on the starter handle.
3.
Pull the starter handle until you feel a resistance and
then start the engine with a sharp pull.
NOTE: If the engine fails to start after three pulls,
repeat the process.
4.
Once the engine is running, put the starter rope
Into the rope guide .As shown in Fig 18
Fig 16
Fig 17
Fig 18
