7-66
Maintenance
Lamp Type Vehicle condition H1 H2 W1 W2
Halogen Type
Without driver 748 (29.45) 722 (28.43) 1,517 (59.72) 1,322 (52.05)
With driver 741(29.17) 715 (28.15) 1,517 (59.72) 1,322 (52.05)
LED Type
Without driver 740 (29.13) 1,474 (58.03)
With driver 733 (28.86) 1,474 (58.03)
Unit: mm (in)

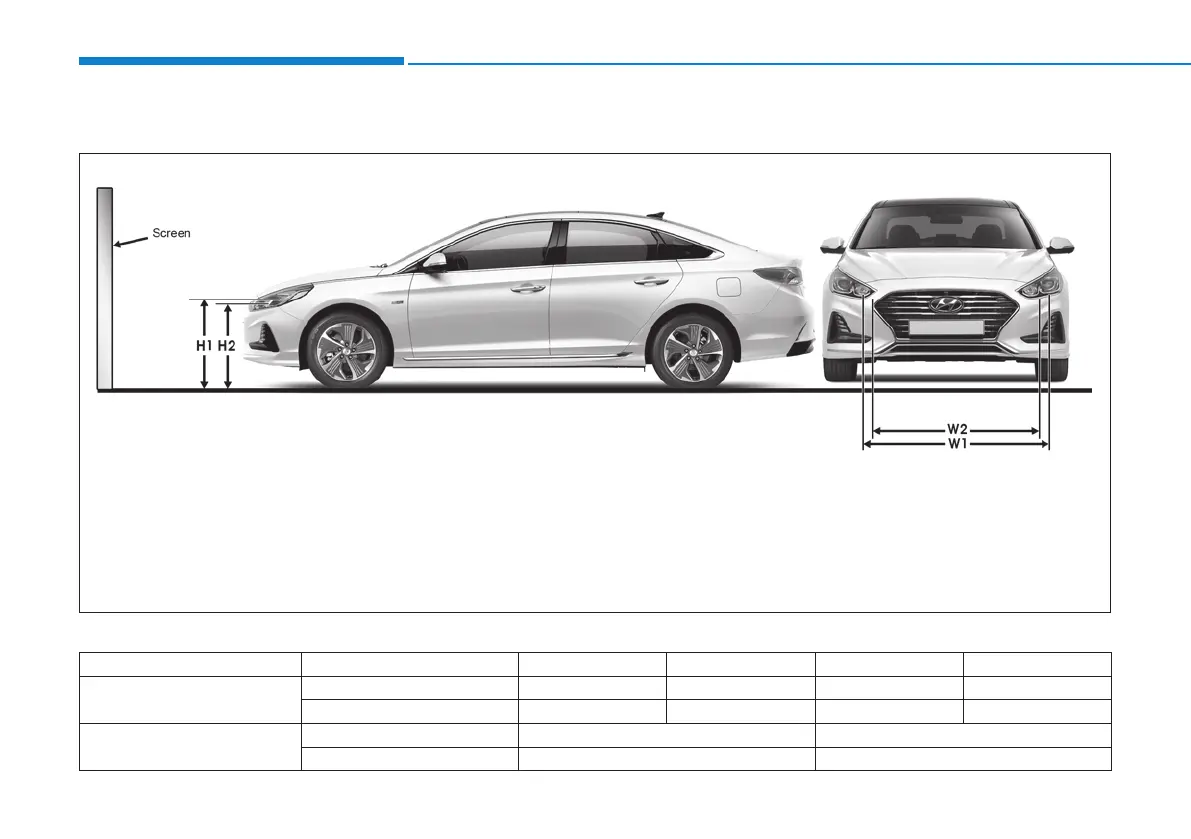

Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
OLF077129L
