PORT15VHF-MKII / PORT15VHF-MKII-TWS
5
www.ibiza-light.com

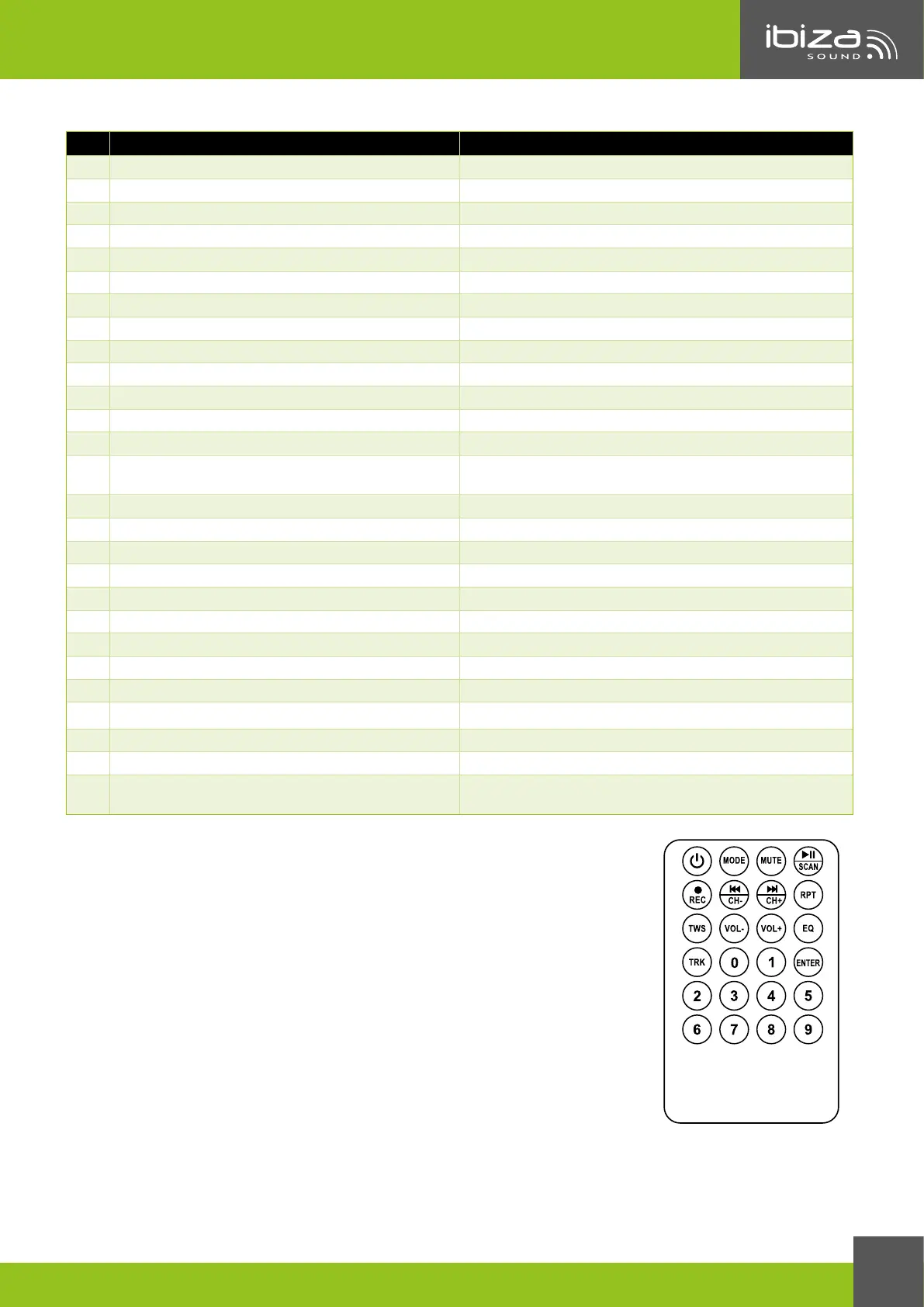

CONTROLS ON THE REAR PANEL
NO PORT15VHF-MKII PORT15VHF-MKII-TWS
1 USB port USB port
2 SD/USB switch MODE: Cycle through USB / LINE / BLUETOOTH
3 MODE: Cycle through USB / LINE / BLUETOOTH EQ: Press to cycle through various music styles
4 MIC ECHO control MIC ECHO control
5 Microphone Volume Microphone Volume
6 VHF microphone volume controls VHF microphone volume controls
7 VHF Mic signal indicator VHF Mic signal indicator
8 Line input Line input
9 Microphone/Guitar inputs Microphone/Guitar inputs
10 AUX (Ipod) input AUX (Ipod) input
11 Mixed output Mixed output
12 Display Display
13 SD socket SD socket
14 Repeat mode Short press: Repeat one/all tracks; Long press: pairing 2
PORT-MKII-TWS boxes with 1 BT source
15 Mute REC: Short Press to record, long press to play recorded le
16 Play/Pause/Radio search Play/Pause/Radio search
17 Backward/Forward Short press: Backward/Forward; Long press: VOL-/VOL+
18 Master volume control Master volume control
19 VOX control activated/deactivated VOX control activated/deactivated
20 Treble & Bass control Treble & Bass control
21 Battery Volume and Charge LED Battery Volume and Charge LED
22 Power ON (green) and Battery low (red) LED Power ON (green) and Battery low (red) LED
23 Power Switch Power Switch
24 15V𝌃 4A power supply input 15V𝌃 4A power supply input
25 VHF Antenna B VHF Antenna B
26 VHF Antenna A VHF Antenna A
27 VHF function ON/OFF switch. Press to ON prior to
using the VHF microphones
VHF function ON/OFF switch. Press to ON prior to using the
VHF microphones
REMOTE CONTROL
ON/OFF button
MODE: Press until the desired operating mode is displayed
MUTE: Sound stop
▶ǁ Play/pause: Press to play a track, press to pause. In FM mode: Search for radio stations
REC: Press to start, stop and play a recorded le
/CH-: back to the previous track. In FM mode: back to the previous radio station
/CH+: Go to the next track. In FM mode: Go to the next radio station
RPT: Repeat one/repeat all tracks
TWS: Press to switch the unit into TWS pairing mode to connect to a 2nd PORT-UHF-BT box
VOL-: Reduce the volume
Vol+: Increase the volume
EQ: Select among several sound modes (Rock, Pop, Jazz, Classic, Flat)
TRK: Track selection. Press the TRK button, select a track via the number keys (0-9) and
press ENTER to conrm
Number buttons: Press the number of the desired track
ENTER: Once you have made your selection, press ENTER to conrm.
