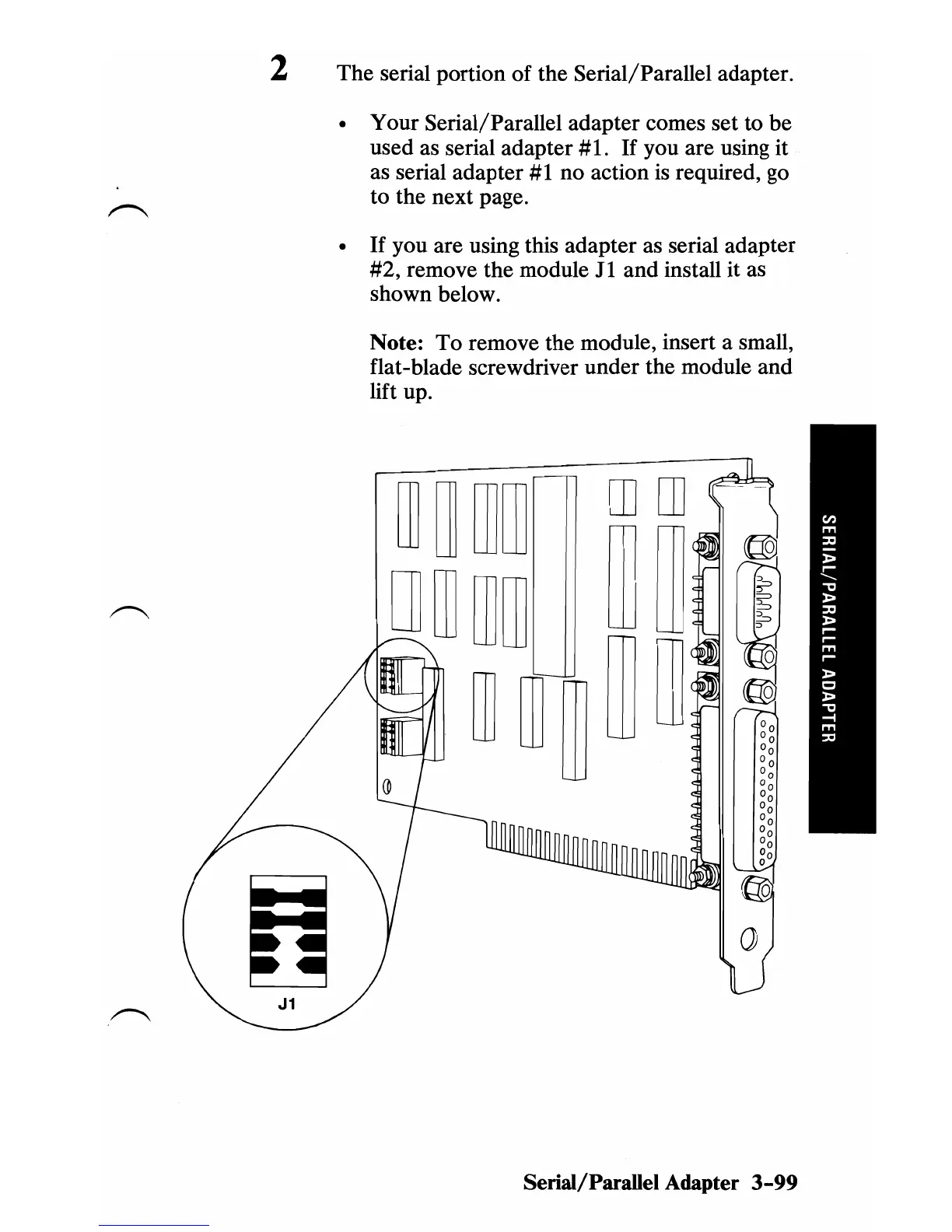

2 The serial portion of the Serial/Parallel adapter.
• Your Serial/Parallel adapter comes set to be
used as serial adapter #1.
If
you are using it
as serial adapter
#1
no action
is
required, go
to the next page.
•
If
you are using this adapter as serial adapter
#2, remove the module
11
and install it as
shown below.
Note:
To
remove the module, insert a small,
flat-blade screwdriver under the module and
lift up.
J1
Serial/Parallel Adapter
3-99
To Next Page
