12. If you removed a console switch from behind the console unit, reinstall it now.
13. Reconnect to the server or console switch all cables that you removed in step 2.
14. Connect power to the display.
Replacing the slide-rail assemblies
Learn how to replace the slide-rail assemblies.
Note: To make sure that the slide-rail assemblies t correctly, replace both the outer and inner slide-rails
at the same time.
To replace the outer and inner slide-rails for the console unit, complete the following steps:
1. If a console switch is installed behind the console unit, remove the console switch from the rack.

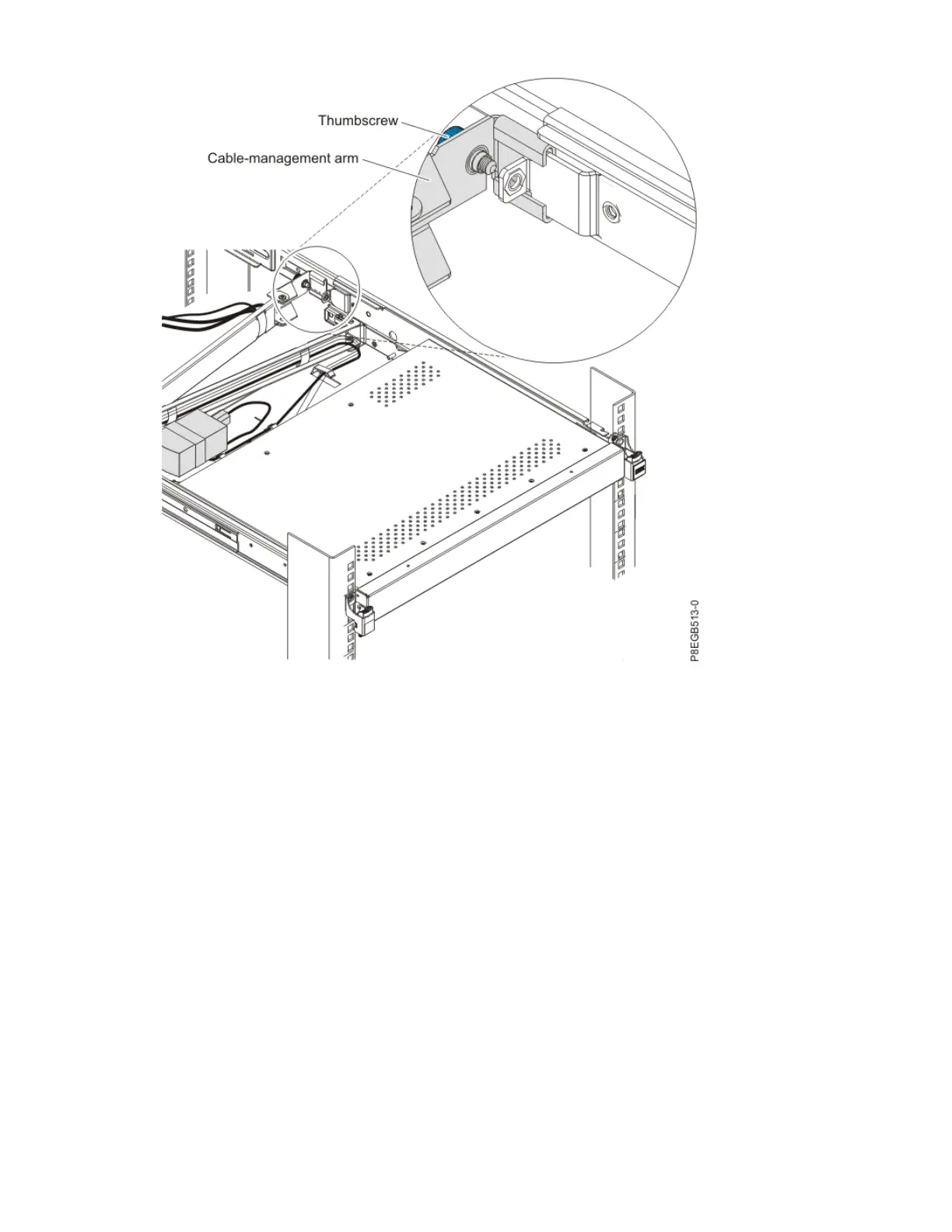

2. Turn off the display and disconnect the power cord from the short jumper cord on the cable-
management arm from the electrical outlet or power distribution unit (PDU). Disconnect from the
server or console switch any cables that are connected to the console unit (keyboard-and-mouse,
video, and power cables).
3. Close the flat-panel display.
4. If you installed the optional flat-head stabilizer screws in the top hole on the front of each slide-rail,
remove them and set them aside.
Installing the 7316-TF4 18.5-Inch Flat Panel Rack-Mounted monitor and keyboard
37
