2. Connect one end of an LC-LC cable to an SFP module in the DS4700 Express.
For instructions, see “Using LC-LC fibre-channel cables” on page 61.
3. Remove the two protective caps from the LC connector end of the LC-SC cable
adapter as shown in Figure 44. Save the protective caps for future use.
4. Carefully insert the other end of the LC-LC cable into the LC connector end of
the LC-SC cable adapter as shown in Figure 45. Push in the connector until it
clicks into place.
5. If you are connecting the DS4700 Express to a 1-Gbps fibre channel switch or
fibre channel host bus adapter, connect the SC connector end of the LC-SC
cable adapter to a Gigabit Interface Converter (GBIC) that is installed in the
1-Gbps fibre channel switch or fibre channel host bus adapter. For more
information about connecting to these devices, see the documentation that
comes with the device.
Removing an LC-LC cable from an LC-SC cable adapter
Complete the following steps to remove an LC-LC cable from an LC-SC cable
adapter:

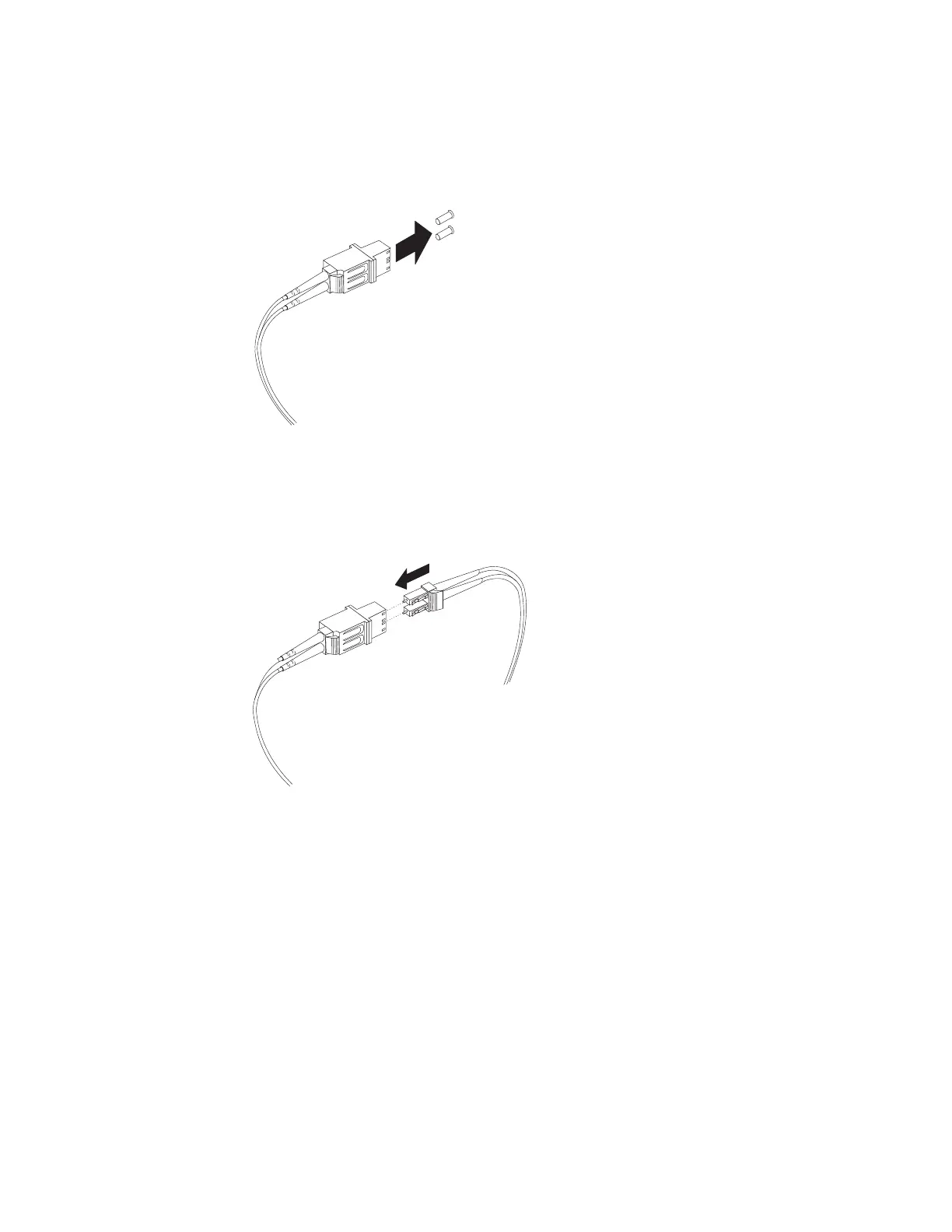

f10ug013
Figure 44. Removing the LC-SC cable adapter protective caps
f10ug020
Figure 45. Connecting an LC-LC cable into the LC-SC cable adapter
66 IBM System Storage DS4700 Express Storage Subsystem: Installation, User’s and Maintenance Guide
