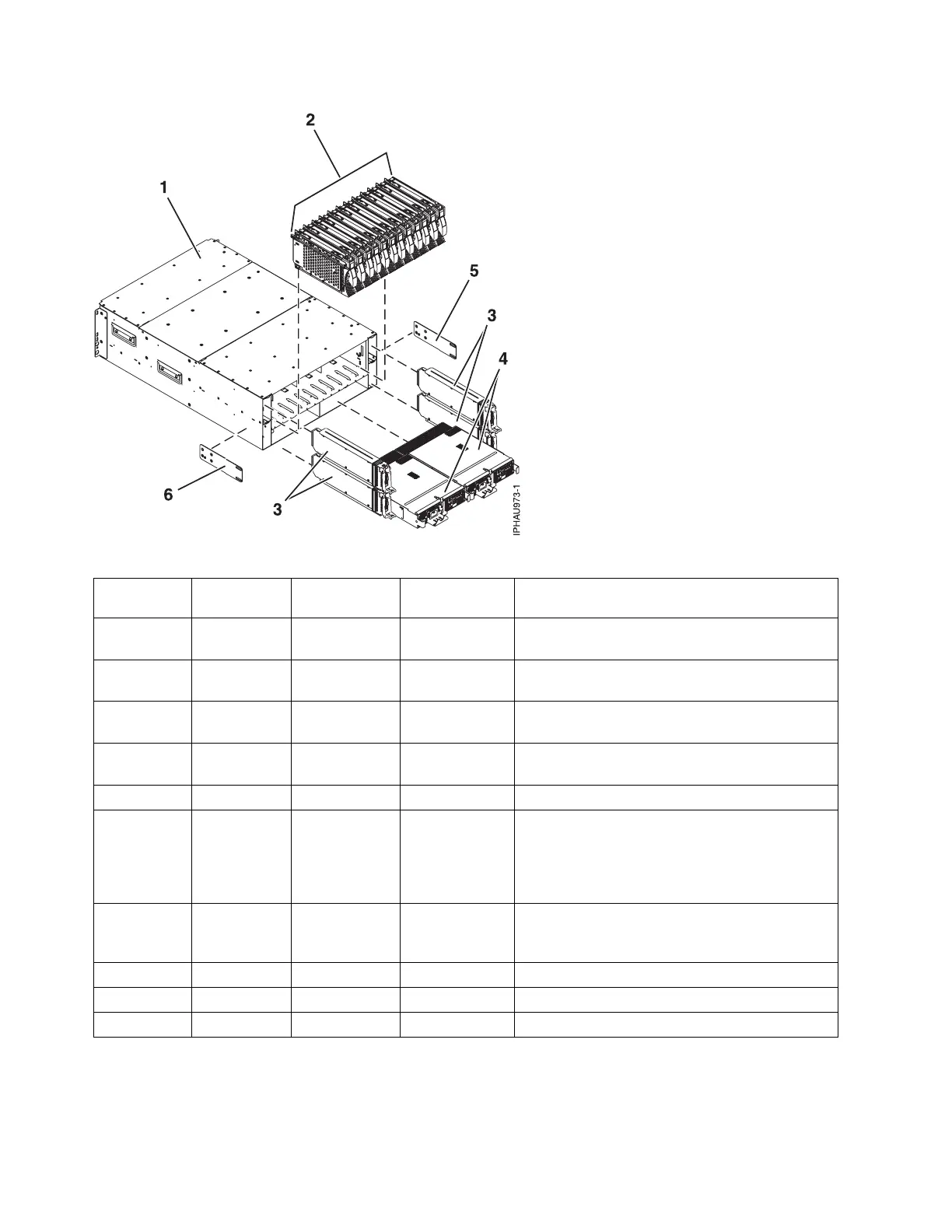

Table 164. I/O enclosure assembly (back view)
Index
number
CCIN Part number Units per
assembly
Description
1 Chassis assembly (refer to table 2 for part
number)
2 Disk drive assemblies (refer to table 2 for part
number)
3 506E 12R9042
*
12R7477
**
1-4 SCSI repeater card assembly single
3 506D 12R9040
*
12R7475
**
1-4 SCSI repeater card assembly dual
3 12R7457
*
1-3 SCSI repeater card filler assembly (not shown)
4 12R9078
**
1-2 966 W power supply
Note: Use with a power supply that has the
same wattage. If a 966 W power supply is not
available, replace both 966 W power supplies
with 845 W power supplies.
4 15R7998
*
1-2 845 W power supply
Note: Use with a power supply that has the
same wattage.
4 12R7454
*
1 Power supply filler assembly (not shown)
5 12R6121
*
1 Left chassis bracket
6 12R6122
*
1 Right chassis bracket
*
Designed to comply with RoHS requirement
**
Not designed to comply with RoHS requirement
290 Finding parts, locations, and addresses
