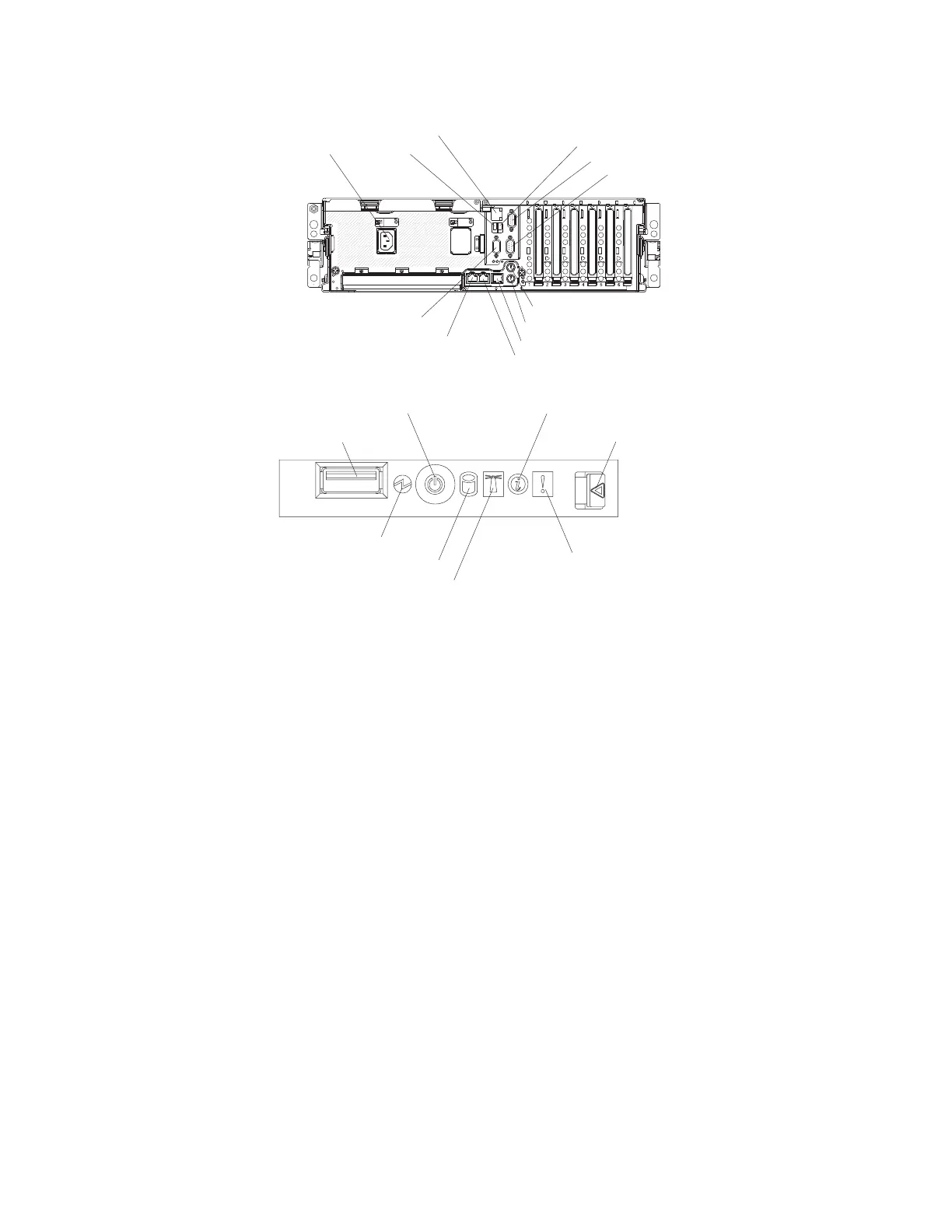

Rear view
SP serial
System serial
Keyboard
Mouse
SP Ethernet 10/100
Gigabit Ethernet 2
Gigabit Ethernet 1
USB 1
USB 2
IXA RS 485
Power-supply
Video
Front view
Power-control button
Power-on LED
USB connector
Hard disk drive activity LED
Information LED
System-error LED
Locator LED
Release latch
Updating the server configuration
When you start the server for the first time after you add or remove an internal
option or external SAS or SCSI device, you might receive a message that the
configuration has changed. The Configuration/Setup Utility program starts
automatically so that you can save the new configuration settings. For more
information, see the section about configuring the server in the User’s Guide on the
IBM System x Documentation CD.
Some options have device drivers that you must install. See the documentation that
comes with each option for information about installing device drivers.
The server comes with at least one microprocessor on the microprocessor board. If
more than one microprocessor is installed, the server can operate as a symmetric
multiprocessing (SMP) server. You might have to upgrade the operating system to
support SMP. For more information, see the section about using the ServerGuide
Setup and Installation CD in the User’s Guide and the operating-system
documentation.
If the server has an optional RAID adapter and you have installed or removed a
hard disk drive, see the documentation that comes with the RAID adapter for
information about reconfiguring the disk arrays.
For information about setting up, configuring, and using the Remote Supervisor
Adapter II SlimLine, see the Remote Supervisor Adapter II SlimLine User’s Guide
that comes with the adapter.
For information about configuring the integrated Gigabit Ethernet controller, see the
User’s Guide on the IBM System x Documentation CD.
24 IBM System x3850 Type 8864: Installation Guide
