3010 ThinkPad Dock PCI cover

Before replacing the PCI cover:

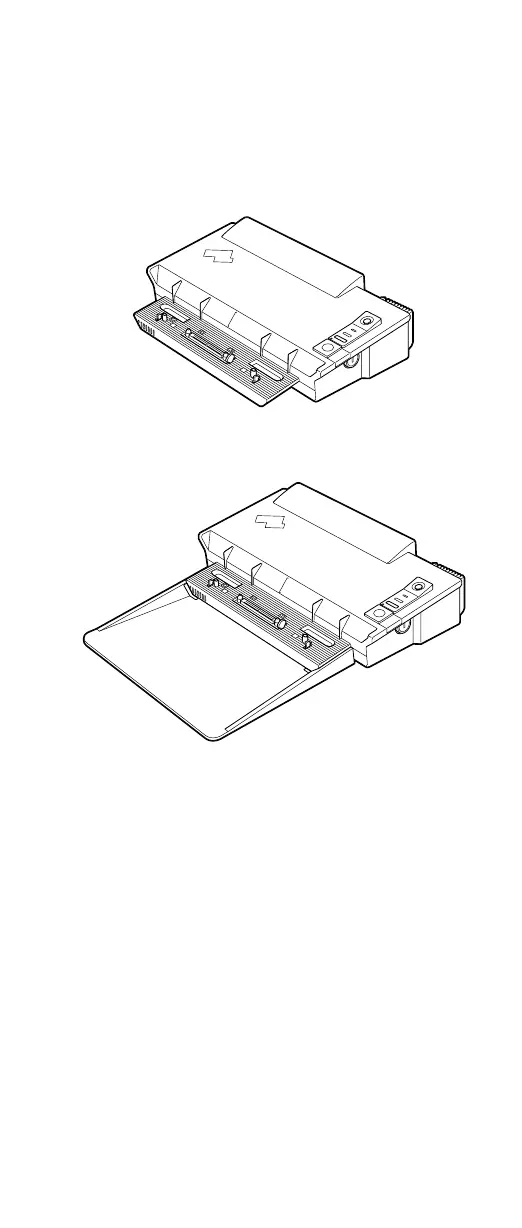

There are two types of ThinkPad Dock as follows:

v ThinkPad Dock: FRU part no. 08N1546 (PCI cover: FRU

part no. 05K6246)

v ThinkPad Dock with extension plate: FRU part no.

08N1537 (PCI cover: FRU part no. 08N7317)

Make sure that the PCI cover FRU suits the ThinkPad

Dock you are servicing.

Removing and replacing a FRU

ThinkPad T20, T21, T22 and T23 series 133
