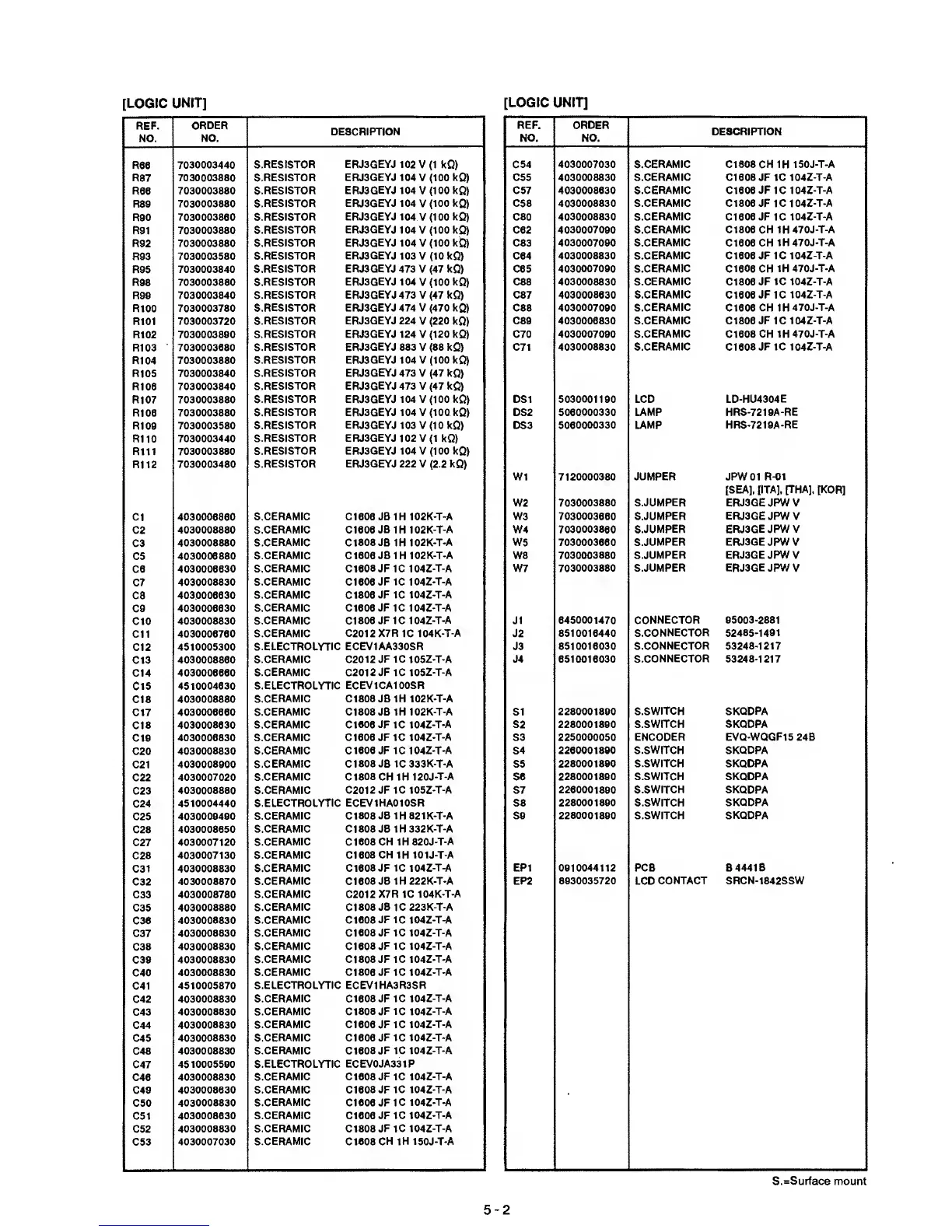

Icom IC-2000 Service Manual

[LOGIC
UNIT]
[LOGIC UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
R86
7030003440 S.RESISTOR
ERJ3GEYJ 102
V
(1
kQ)
R87
7030003680 S.RESISTOR
ERJ3GEYJ 104
V
(100
kQ)
R88
7030003680
S.RESISTOR ERJ3GEYJ 104
V (100
kQ)
R89
7030003680
S.RESISTOR ERJ3GEYJ 104
V (100
kQ)
R90
7030003680 S.RESISTOR
ERJ3GEYJ 104
V
(100
kQ)
R91
7030003680
S.RESISTOR
ERJ3GEYJ
104 V
(100
kQ)
R92
7030003880
S.RESISTOR ERJ3GEYJ 104 V
(100
kQ)
R93
7030003560
S.RESISTOR
ERJ3GEYJ103V(10kQ)
R95
7030003840
S.RESISTOR ERJ3GEYJ 473 V
(47
kQ)
R98
7030003680
S.RESISTOR ERJ3GEYJ 104
V
(100
kQ)
R99
7030003640
S.RESISTOR ERJ3GEYJ 473 V
(47
kQ)
R100
7030003780
S.RESISTOR ERJ3GEYJ 474 V
(470
kQ)
R101
7030003720 S.RESISTOR
ERJ3GEYJ 224
V (220 kQ)
R102
7030003690
S.RESISTOR ERJ3GEYJ 124 V
(120
kQ)
R103
7030003660
S.RESISTOR ERJ36EYJ 683 V
(68
kQ)
R104
7030003880
S.RESISTOR ERJ3GEYJ 104 V
(100
kQ)
R105
7030003640
S.RESISTOR ERJ3GEYJ 473 V
(47
kQ)
R106
7030003640
S.RESISTOR ERJ3GEYJ 473 V
(47
kQ)
R107
7030003680
S.RESISTOR
ERJ3GEYJ
104 V
(100
kQ)
R108
7030003680
S.RESISTOR ERJ3GEYJ 104 V
(100
kQ)
R109
7030003560
S.RESISTOR ERJ3GEYJ103V(10kQ)
R110
7030003440 S.RESISTOR
ERJ3GEYJ
102 V
(1
kQ)
R111
7030003680
S.RESISTOR ERJ3GEYJ 104 V
(100
kQ)
R112
7030003480
S.RESISTOR ERJ3GEYJ 222 V
(2.2
kQ)
Cl
4030006860
S.CERAMIC
C1608
JB1H102K-T-A
C2
4030006860 S.CERAMIC
C1608JB1H102K-T-A
C3
4030006860
S.CERAMIC
Cl
808 JB 1H 102K-T-A
C5
4030006860 S.CERAMIC C1608
JB 1H 102K-T-A
C6
4030008630
S.CERAMIC C1608JF1C104Z-T-A
C7
4030008630
S.CERAMIC C1608JF1C104Z-T-A
C8
4030008630
S.CERAMIC
C1808
JF 1C
104Z-T-A
C9
4030008630
S.CERAMIC C1608 JF 1C 104Z-T-A
CIO
4030008630
S.CERAMIC
C1608
JF1C 104Z-T-A
C11
4030008780 S.CERAMIC
C2012 X7R
1C
104K-T-A
C12
4510005300
S.ELECTROLYTIC ECEV1AA330SR
C13
4030008680
S.CERAMIC C2012
JF1C105Z-T-A
C14
4030008680
S.CERAMIC C2012JF1C105Z-T-A
C15
4510004630
S.ELECTROLYTIC ECEV1CA100SR
cie
4030006860
S.CERAMIC C1808 JB 1H 102K-T-A
C17
4030006860
S.CERAMIC C1608 JB 1H 102K-T-A
C18
4030008630 S.CERAMIC C1608
JF1C 104Z-T-A
C19
4030008630
S.CERAMIC C1808 JF 1C 104Z-T-A
C20
4030008630 S.CERAMIC C1608
JF1C104Z-T-A
C21
4030008900 S.CERAMIC Cl
608 JB1C333K-T-A
C22
4030007020 S.CERAMIC
Cl 808
CH 1H
120J-T-A
C23
4030008680 S.CERAMIC
C2012JF1C105Z-T-A
C24
4510004440 S.ELECTROLYTIC
ECEV1HA010SR
C25
4030009490
S.CERAMIC C1608
JB1H821K-T-A
C28
4030008650
S.CERAMIC C1808 JB 1H332K-T-A
C27
4030007120
S.CERAMIC Cl 808 CH
1H820J-T-A
C28
4030007130 S.CERAMIC
C1808CH 1H 101J-T-A
C31
4030008630
S.CERAMIC C1608
JF
1C
104Z-T-A
C32
4030006870
S.CERAMIC
C1608
JB 1H222K-T-A
C33
4030008760
S.CERAMIC C2012X7R 1C
104K-T-A
C35
4030008880
S.CERAMIC
C1608
JB 1C223K-T-A
C38
4030008630 S.CERAMIC C1608
JF
1C
104Z-T-A
C37
4030008830
S.CERAMIC
C1608
JF 1C 104Z-T-A
C38
4030008830 S.CERAMIC C1608
JF
1C
104Z-T-A
C39
4030008630
S.CERAMIC
C1608
JF 1C
104Z-T-A
C40
4030008630
S.CERAMIC C1808
JF
1C 104Z-T-A
C41
4510005870
S.ELECTROLYTIC ECEV1HA3R3SR
C42
4030008630
S.CERAMIC
C1608
JF 1C 104Z-T-A
C43
4030008630 S.CERAMIC C1608
JF
1C
104Z-T-A
C44
4030008630
S.CERAMIC Cie08JF1C104Z-T-A
C45
4030008630 S.CERAMIC C1808
JF
1C
104Z-T-A
C48
4030008630
S.CERAMIC Cie08JF1C104Z-T-A
C47
4510005590 S.ELECTROLYTIC
ECEV0JA331P
C48
4030008630
S.CERAMIC C1608 JF 1C 104Z-T-A
C49
4030008630
S.CERAMIC C1608JF1C 104Z-T-A
C50
4030008630
S.CERAMIC
C1608
JF1C 104Z-T-A
C51
4030008630
S.CERAMIC
Cieoa
JF1C104Z-T-A
C52
4030008630 S.CERAMIC C1608
JF 1C
104Z-T-A
C53
4030007030
S.CERAMIC
C1808
CH 1H 150J-T-A
REF.
NO.
ORDER
NO.
DESCRIPTION
C54
4030007030 S.CERAMIC C1808
CH 1H
150J-T-A
C55 4030008630
S.CERAMIC
C1608 JF1C104Z-T-A
C57 4030008630 S.CERAMIC C1808 JF1C 104Z-T-A
C58 4030008630 S.CERAMIC C1608 JF1C104Z-T-A
C60
4030008630 S.CERAMIC
C1608
JF1C104Z-T-A
C62
4030007090 S.CERAMIC C1608CH1H470J-T-A
C63
4030007090 S.CERAMIC C1608CH1H470J-T-A
C64
4030008630 S.CERAMIC C1808 JF 1C 104Z-T-A
C65
4030007080 S.CERAMIC
C1608 CH
1H 470J-T-A
C66
4030008630 S.CERAMIC
C1608
JF1C
104Z-T-A
C67
4030008630 S.CERAMIC
C1608 JF1C
104Z-T-A
C68
4030007090 S.CERAMIC
Cl 608 CH
1H470J-T-A
C69 4030008630
S.CERAMIC
C1608JF1C104Z-T-A
C70
4030007090 S.CERAMIC C1608CH1H470J-T-A
C71
4030008830 S.CERAMIC
C1808
JF 1C 104Z-T-A
DS1 5030001180 LCD LD-HU4304E
DS2
5080000330
LAMP HRS-7219A-RE
DS3
5080000330 LAMP HRS-7219A-RE
W1 7120000380 JUMPER JPW01 R-01
[SEA],
[ITA], [THA],
[KORJ
W2 7030003860 S.JUMPER ERJ3GE JPW
V
W3
7030003860 S.JUMPER ERJ3GE JPW V
W4
7030003860 S.JUMPER ERJ3GEJPWV
W5
7030003860 S.JUMPER ERJ3GEJPWV
W6
7030003860 S.JUMPER ERJ3GEJPWV
W7
7030003880 S.JUMPER ERJ3GEJPWV
J1
6450001470 CONNECTOR
95003-2881
J2
6510016440
S.CONNECTOR
52465-1481
J3
6510018030
S.CONNECTOR
53248-1217
J4 6510018030
S.CONNECTOR
53248-1217
SI
2260001890
S.SWITCH SKQDPA
S2 2260001880
S.SWITCH SKQDPA
S3
2250000050 ENCODER EVQ-WQGF15 24B
S4
2260001880
S.SWITCH
SKQDPA
S5
2260001890
S.SWITCH SKQDPA
se
2260001890
S.SWITCH
SKQDPA
S7
2260001890 S.SWITCH SKQDPA
S8
2260001890 S.SWITCH SKQDPA
S9
2260001890
S.SWITCH
SKQDPA
EP1 0810044112 PCB B4441B
EP2
8930035720
LCD
CONTACT SRCN-1642SSW
S.=Surface
mount
5-2
