Icom IC-2800 Service Manual

W 4 8900004880 Cable OPC-465 1
MP1 8510010880 1642 VCO case 2
MP2 8930037120 1647 M-holder 2
MP3 8930045960 2088 Spacer 1
MP4 8510012160 2047 RF plate 1
MP5 8510012220 2047 IC plate 1
MP6 8510012280 2047 MAIN-A shield 1
MP7 8510012270 2047 MAIN-B shield 1
F 1 5210000080 Fuse FGB 20 A 1
W1 Optional product Cable OPC-346 1
W 2 Cable *OPC-837 ACC 1
MC1 Optional product Micropone HM-98 1
MP1 8010016380 1542 Mobil bracket (B) 1
MP3 8820000530 Frange bolt M4 × 8 NI 4
MP4 8810000470 Screw PH M5 ×12 (+/–) 4
MP5 8810000950 Screw PH A0 M5 × 16 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8850000390 Spring washer M5 4
MP8 8830000120 Nut M5 4
MP9 8930007300 Mic-hanger except [CSA] 1
MP10 8010017730 2047 Bracket 1
MP11 8820001080 2047 Screw 1
MP12 8810004350 Screw PH A0 M4 ×16 2
MP13 8930049260 Non-woven sheet 2
DS 1 5030001660 LCD EDTCA22QB0 1
DS 2 5080000430 CFL HMB S 3 AIW 83N/AZ ASSY 1
MP1 8210016000 2047 Front panel 1
MP2 8930048580 2047 L-front key 1
MP3 8930048590 2047 R-front key 1
MP4 8930048600 2047 Key cap 1
MP5 8610010690 Knob N-269 4
MP6 8610010700 Knob N-270 2
MP7 8210016010 2047 Rear panel 1
MP8 8830001440 2047 Nut 1
MP9 8930048820 2047 SP net 1
MP11 8930048770 2047 LCD plate 1
MP12 8210016070 2047 Reflector 1
MP13 8930048810 Sponge (GA) 2
MP14 8930048800 2047 A-sheet 1
MP15 8930048790 2047 B-sheet 1
MP16 8930048780 2047 Jack cover 1
MP17 8810008990 Screw PH BT M2 × 10 ZK 4
MP18 8810008640 Screw FH BT No.0 M2 × 4 NI-ZU 2
MP19 8810008990 Screw PH BT M2 × 10 ZK 4
MP20 8810009180 Screw PH BT No. 0 M2 × 5 NI-ZU 2
MP21 8810000100 Screw PH M2 × 4 ZK 1
MP22 8930049160 2047 C-sheet 1
MP23 8510012370 2048 CPU plate 1
MP24 8510012240 2047 LCD shield 1
MP25 8930049070 Isolating plate (FR) 1
MP27 8930049280 Sponge (GE) 1
MP28 8930049250 2047S.W. sheet 2
MP30 8930049270 Non-woven sheet 2
SP 1 2510000820 Speaker VS-57-0814 1
WS1 8600036480 M. OTHER FX2047 P01CO 1
7 - 1
Screw abbreviations: PH: Pan head FH: Flat head
BT, A0: Self-tapping ZK: Black
NI-ZU: Nickel-Zinc
*OPC-837 ACC:
OPC-872 (incl. female-female plug) is supplied as option.

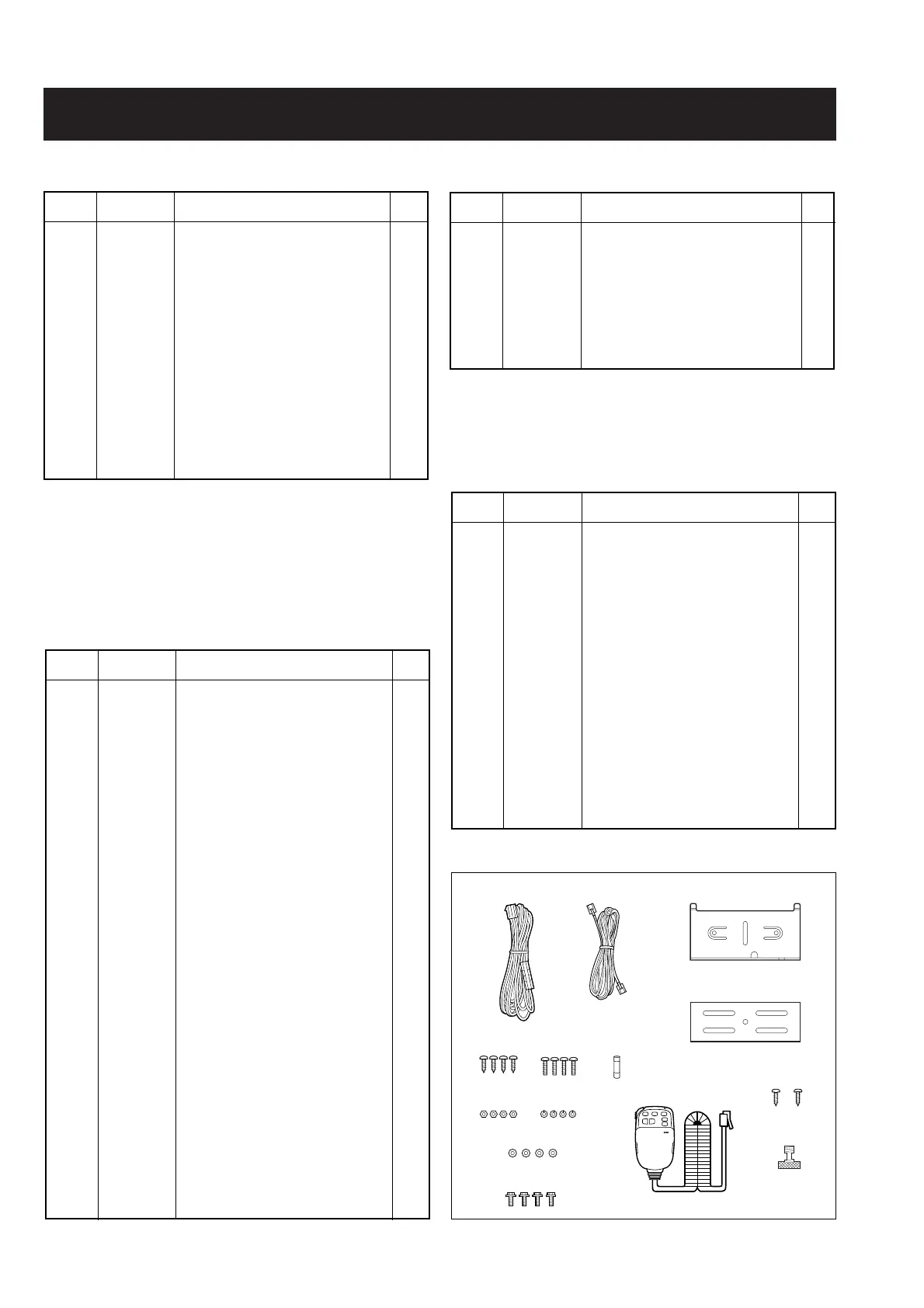

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
[CONTROL UNIT]
MP10
MP5
MP4
MP8
MP6
MP7
MP3
MC1
MP1
F1
W2W1
MP12
MP11
REF NO.
ORDER
NO.
DESCRIPTION QTY.
QTY.
J 1 6510004880 Antenna connector MR-DS-E 01 1
MF1 2710000590 Fan motor MF40D-12H-001 1
MP1 8010017670 2047 Chassis 1
MP2 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP3 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP4 8810008660 Screw PH BT M3 × 8 NI-ZU 7
MP5 8110006640 2047 Cover 1
MP6 8810008450 Bind screw M4 × 8 ZK 1
MP9 8110005750 1729 Fan cover 1
MP10 8810009110 Screw PH No.0 M2.6 × 16 ZK 4
MP11 8930049650 Thermally sheet (C) 1
MP12 8930049650 Thermally sheet (C) 1
MP13 8930027480 1126 TR-A clip 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[MAIN UNIT]
[ACCESSORIES]
REF NO.
ORDER
NO.
DESCRIPTION QTY.
REF NO.
ORDER
NO.
DESCRIPTION
