J7 6450000140 Connector HSJ0807-01-010 1
W1 8900009210 Cable OPC-905 1
MP1 8510011660 2088 VCO case 1
MP2 8930013590 Alumi sheet N 1
MP3 8510012940 2270 IF FIL sheild 1
MP4 8510012950 2270 A-shield plate 1
MP5 8510012920 2270 B-shield plate 1
MP6 8510012910 2270 rug 1
MP7 8930051860 2270 A-sheet 1
MP8 8510012960 2270 C-shield plate 1
MP9 8950000180 Cable tie-80 1
MP11 8930052670 Thermally sheet 1
MP12 8930052660 Rubber sheet 1

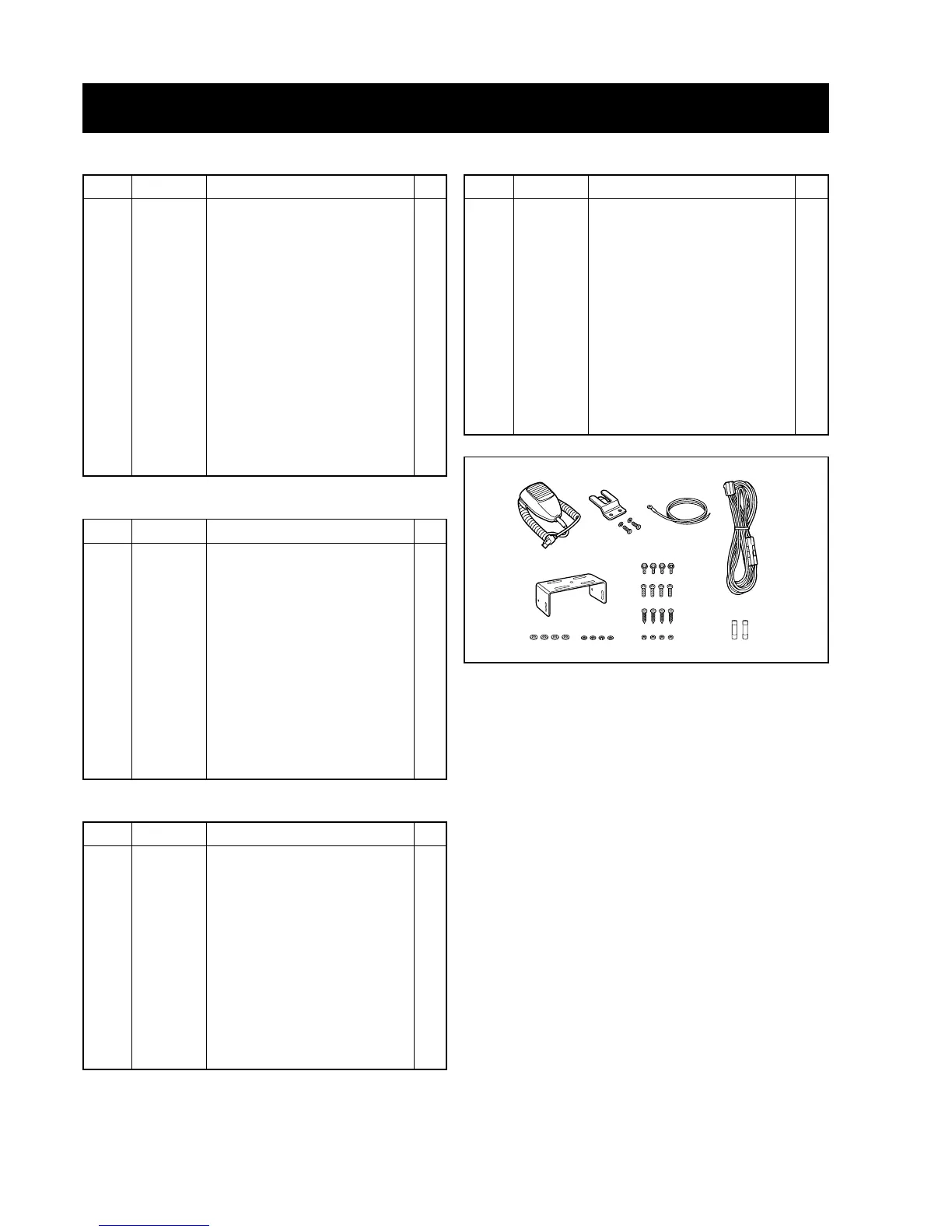

SECTION 6 MECHANICAL PARTS AND DISSASEMBLY
6 - 1
[CHASSIS PARTS]
REF. NO ORDER NO. DESCRIPTION QTY.
J1 6510004880 Connector MR-DS-E 01 1
MP1 8010017870 2270 chassis 1
MP2 8810008660 Screw PH BT M3 × 8 NI-ZU 8
MP3 8810008490 Setscrew H M2.6 × 8 NI 2
MP4 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP5 8810009130 Screw PH BT M3 × 12 NI-ZU 4
MP6 8930050080 2270 IC clip 1
MP7 8820000870 1705 cap screw 3
MP8 8110007150 2270 cover 1
MP9 8930049650 Thermal sheet (H) 1
MP10 8930036771 1705 main seal-1 1
MP11 8930050130 2270 jack sheet 1
MP12 8310027320 Display seal (U) [USA/-1] only 1
MP13 8930051440 2270 thermal sheet TC-200TKC 1
MP17 8310048070 Serial No seal (BE) A110 [GEN/-1]
Serial No seal (BE) A110 FCC [USA/-1] 1
MP18 8930051830 2270 B-sheet 1
MP19 8930051820 2270 A-sponge 1
[ACCESSORIES]
REF. NO ORDER NO. DESCRIPTION QTY.
F1 5210000070 Fuse FGB 10A 2
W1
Optional product DC power cable OPC-344 1
W2 8900000730 Microphone (HANG) cable OPC-049 1
MC1
Optional product Microphone HM-100 1
MP1 8010016730 150 mounting bracket 1
MP3 8820000530 Flange bolt M4 × 8 NI 4
MP4 8810000470 PH M5 × 12 (+/-) 4
MP5 8810005840 PH A M5 × 20 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8850000390 Spring washer M5 4
MP8 8830000120 Nut M5 4
MP9 6910004210 731 microphone hanger set
(incl. 2 screws, 2 washers) 1
[FRONT UNIT]
REF. NO ORDER NO. DESCRIPTION QTY.
J2 6450001470 Connector 95003-2881 1
DS1 5030001740 LCD HLC7453-012400 1
EP2 8930037960 LCD contact SRCN-1705 ZSS 1
SP1 2510000880 Speaker SME-45W 1
MP1 8210012610 1705 reflector 1
MP2 8930036830 1705 LCD holder 1
MP3 8930036820 1705 LCD filter 1
MP4 8930037660 1705 LCD sheet 1
MP6 8210013310 1705 front panel assembly 1
MP7 8930049760 1705 front key (C) 1
MP8 8610009840 Knob N234 1
MP10 8810009130 Screw PH BT M3 × 12 NI-ZU 3
[MAIN UNIT]
REF. NO ORDER NO. DESCRIPTION QTY.
Screw abbreviations BT:Self-tapping PH: Pan head
NI: Nickel NI-ZU: Nickel-Zinc
BS: Brass
MC1 W1
MP9
MP1
MP3
MP4
MP5
F1MP8MP7MP6
W2
