SECTION 3 DISASSEMBLY AND OPTION INSTRUCTIONS
3-1 DISASSEMBLY INSTRUCTION

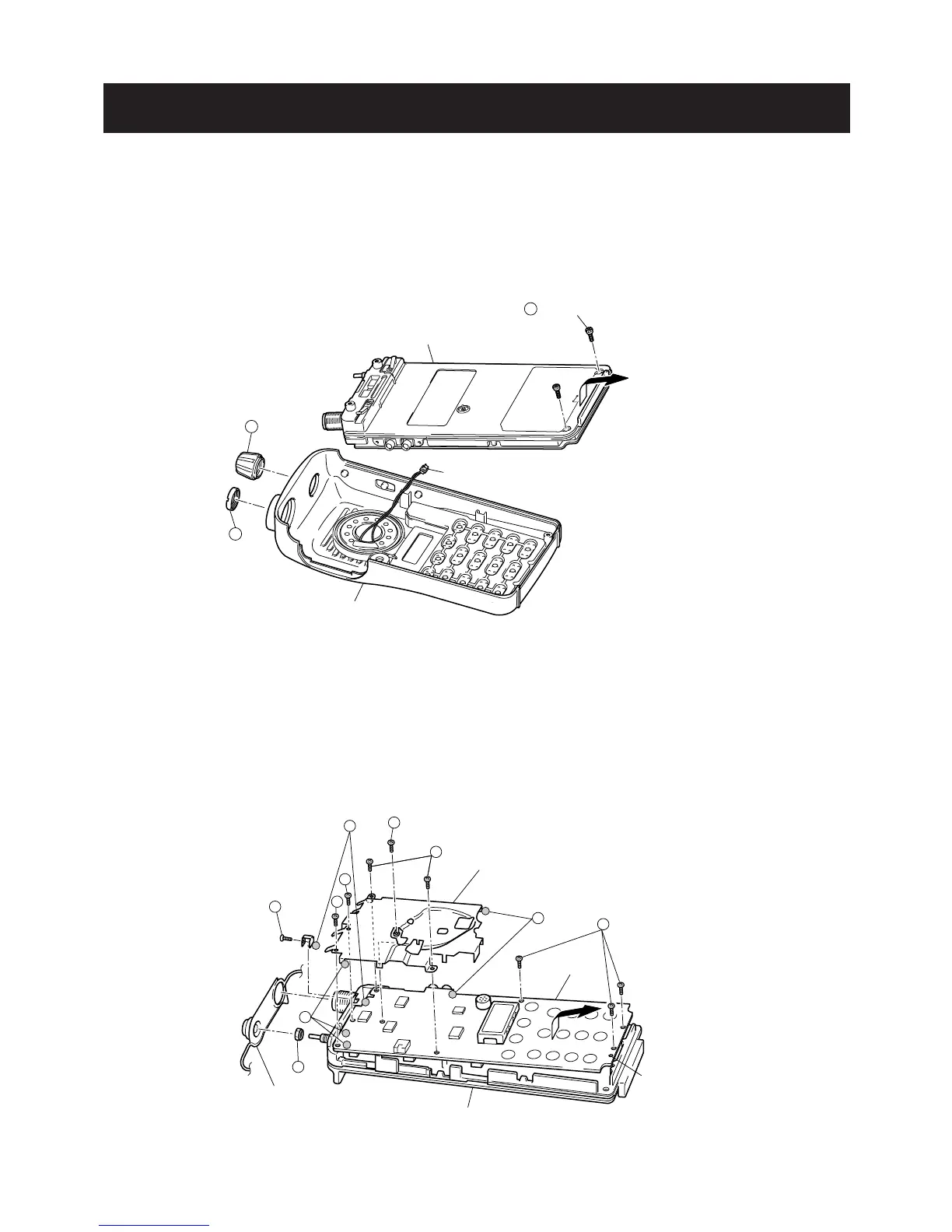

• REMOVING THE CHASSIS PANEL
1 Unscrew 1 nut A, and remove 1 knob B.
2 Unscrew 2 screws C.
3 Take off the chassis in the direction of the arrow.
4 Unplug J6 to separate front panel and chassis.
• REMOVING THE MAIN UNIT
1 Remove the searing rubber.
2 Unsolder 4 points D, and unscrew 1 nut E.
3 Unscrew 3 screws F, and 6 screws G (silver, 2 mm) to separate the chassis and the MAIN unit.
4 Take off the MAIN unit in the direction of the arrow.
To Next Page
