Icom IC-F7000 Service Manual

1
4
8
5
4
1
J6301
to DRIVER
board
GND
GND
DRVI
DRVI
1
4
J6302
to DRIVER
board
DRVO
DRVO
GND
GND
13
J6411
to
VARISTOR-1
board
GND
VARO
VARI
13
to
VARISTOR-2
board
J6412
GND GND
VARO
291
302
J6701
to MAIN unit J1901
HV
FANC
S13V S13V S13V
STAT
TUM4 TUM1
TSCS
PON
HV
S13V S13V S13V
ICV
GND GND GND GND
T8V
THRM
GND GND GND GND
KEYS
TULK
TUM2
TURS
TUM3
to CHASSIS W4501
GND
HV13V
from PLL unit J7001
FLIN
W7001
from/to MAIN unit J1
YGR
GND
21
to FAN
J6501
FAN+
GND
1
to TUNER
10
J6703
13.8
TUM4 TUM2 TUM1 TURS
TSCS
TUM3
STAT
KEY

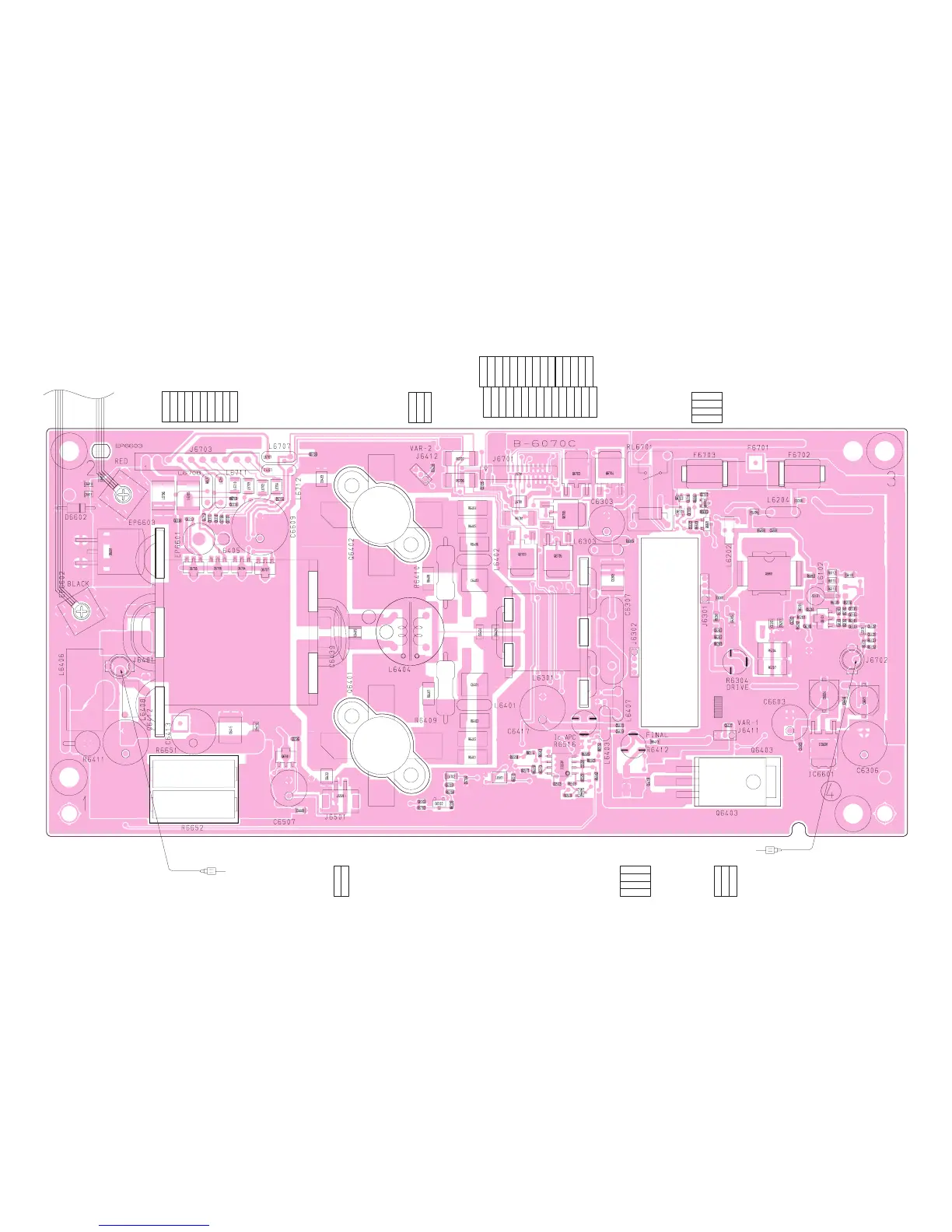

9-3-3 PA UNIT
• TOP VIEW
9 - 9
