Icom IC-M45 Service Manual

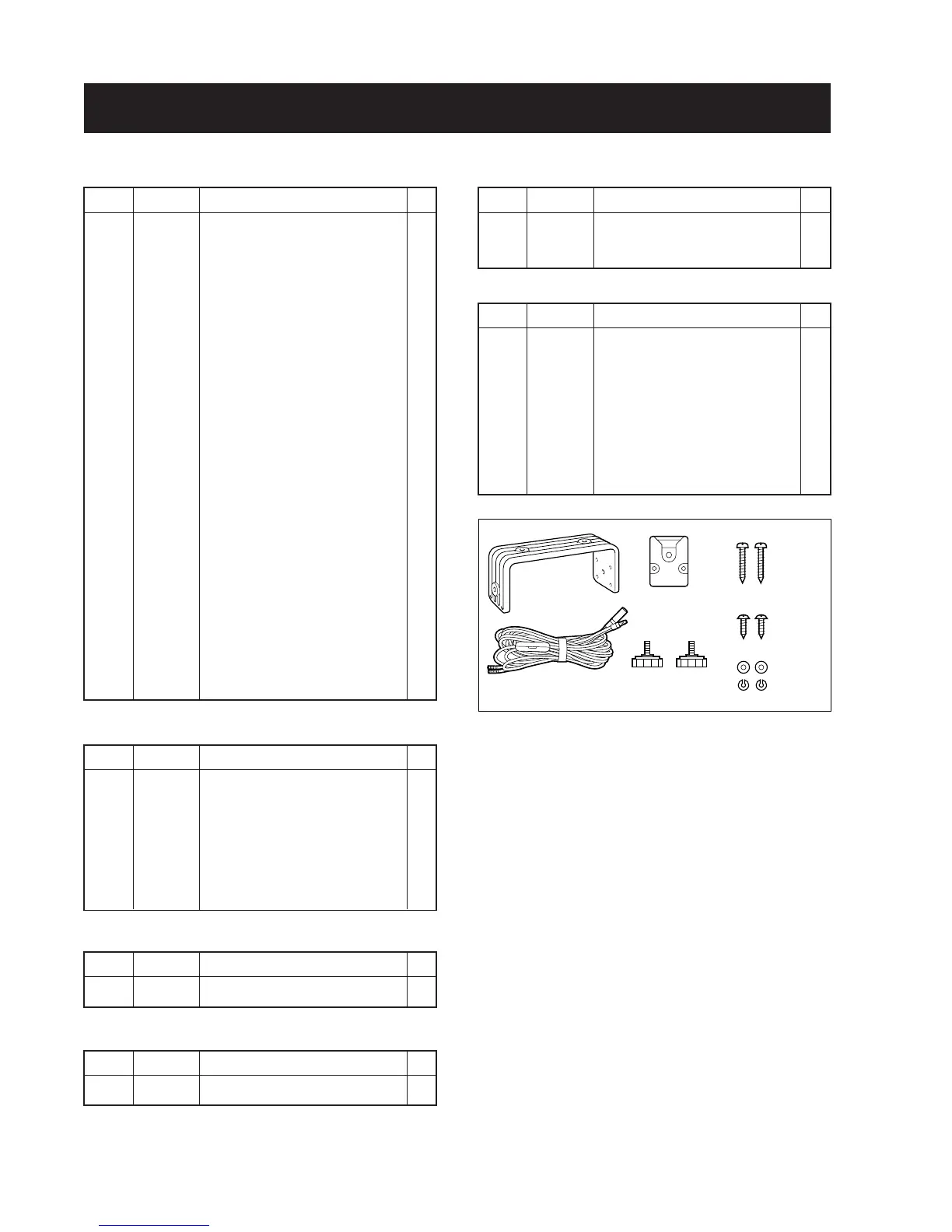

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY
6 - 1
J1 6510004880 Connector MR-DSE-01 1
MC1 0800004370 Microphone HM-117B [Black] 1
0800004380 Microphone HM-117W [White] 1
SP1 2510001040 Speaker F45G07-4 1
W1 8900007770 Cable OPC-754 [USA] 1
8900007930 Cable OPC-773 [EUR] 1
MP2 8010017264 2040 Chassis-4 1
MP3 8930045700 2040 IC clip 1
MP4 8510011530 2040 Case [U-Black] 1
8510011550 2040 Case (A) [U-White] 1
8510011880 2040 Case (B) [E-White] 1
8510012510 2040 Case (C) [E-Black] 1
MP5 8210015210 2040 Front panel [U-Black] 1
8210015260 2040 Front panel (A) [U-White] 1
8210015510 2040 Front panel (B) [E-White] 1
8210016230 2040 Front panel (C) [E-Black] 1
MP6 8930045260 2040 6-KEY [USA] 1
8930046650 2040 6-KEY (A) [EUR] 1
MP7 8930045270 2040 R-packing 1
MP8 8930045280 2040 F-packing 1
MP10 8610010550 Knob N-264 [Black] 2
8610010580 Knob N-264 (A) [White] 2
MP12 8930033470 1542 Jack bush 1
MP13 8930045290 2040 Bush plate 1
MP15 8930014280 SP net 1
MP16 8810008630 Screw PH B0 M3x6 NI-ZU (BT) 7
MP17 8810008660 Screw PH B0 M3x8 NI-ZU (BT) 4
MP18 8810008660 Screw PH B0 M3x8 NI-ZU (BT) 2
MP19 8810004540 Screw BiH M3x8 SUS 2
MP20 8810004540 Screw BiH M3x8 SUS 4
MP21 8810008680 Screw PH M3x8 NI 4
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[CHASSIS PARTS]
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[LOGIC UNIT]
R1 7210001500 Variable resistor RK097111102AA (10KA) 1
[PWR/VOL] (incl. nut)
REF. NO.
ORDER NO.
DESCRIPTION
QTY.
[VR-A UNIT]
R1 7210001010 Variable resistor RK097111000AA (10KB) 1
[SQUELCH] (incl. nut)
REF. NO.
ORDER NO.
DESCRIPTION
QTY.
[VR-B UNIT ]
[MAIN UNIT]
MP1 8510011600 2040 VCO Case 1
MP2 8510011590 2040 VCO Cover 1
MP3 8510011690 2040 Module plate [USA] 1
8510011860 2040 A-Module plate [EUR] 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
Screw abbreviations A, B0, BT: Self-tapping
PH: Pan head
FH: Flat head
BiH: Bind head
NI: Nickel
SUS: Stainless
ZK: Black
[ACCESSORIES]
W1 8900006540 Cable OPC-632 1
MP1 8950004140 1632 MIC hanger [U-Black] only 1
8950004770 1632 MIC hanger (A) [U-White] only 1
MP2 8010017250 2040 Mobile bracket [Black] 1
8010017270 2040 Mobile bracket (A) [White] 1
MP3 8610010560 2040 Knob bolt [Black] 2
8610010590 2040 Knob bolt (A) [White] 2
MP4 8810001470 Screw PH A0 M3.5x30 SUS 2
MP5 8810001490 Screw PH A0 M5x20 SUS 2
MP6 8850000180 Flat washer M5 SUS 2
MP7 8850000500 Spring washer M5 SUS 2
REF. NO. ORDER NO.
DESCRIPTION
QTY.
DS1 5030001373 LCD LD-HU4549J-1 1
DS2 5080000170 Lamp HRS-7219A-Y2 30 1
DS3 5080000170 Lamp HRS-7219A-Y2 30 1
W3 8900005320 FFC OPC-519 1
EP2 8930045650 LCD contact SRCN-2040-SP-N-W 1
MP1 8210015200 2040 Reflector 1
MP2 8930045300 2040 LCD holder 1
MP2 MP1
W1 MP3
MP4
MP5
MP6
MP7
