Icom IC-R5 Service Manual

5 - 2
to the antenna connector
Standard signal generator
0.1 V to 32 mV
( 127 dBm to 17 dBm)
Optional SMA BNC adaptor
1/8" (3.5 mm)
3-conductor plug
68 k
+
to [SP] jack
Power supply
6 V / 1 A
JIG
AD-92SMA
Power supply
3 V / 1 A

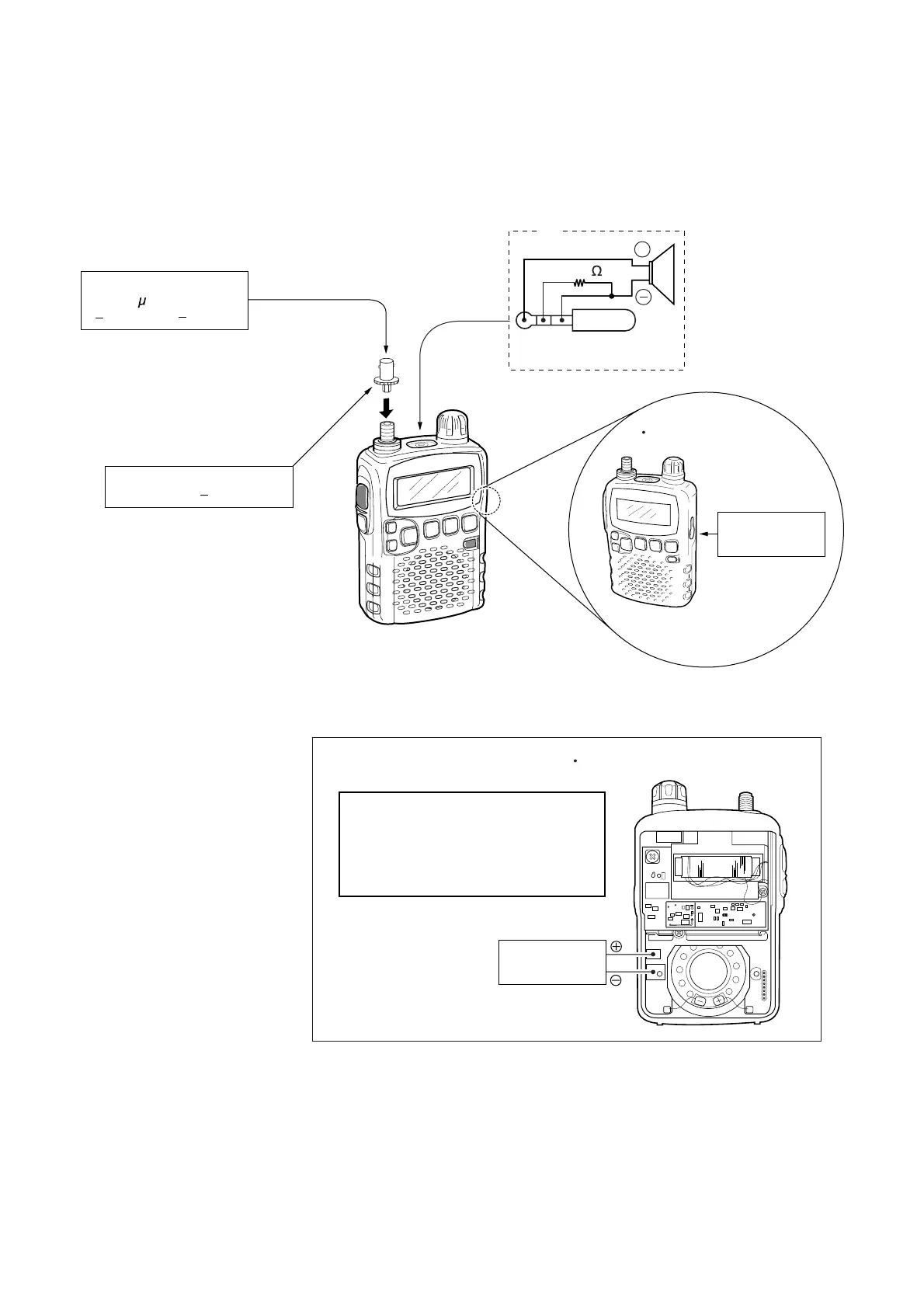

POWER SUPPLY CONNECTION
(IC-R5 has two pattern.)
Using [DC 6V] jack
CAUTION!
DO NOT input more than 3.0 V when
connect the power supply to the LOGIC
unit as shown right. Otherwise IC-R5 will
be damaged.
Connecting the power supply directly
• CONNECTION
