Operation
•
Start machine
•
Main switch
E
to position "I", insert the key
G
for the control panel and turn it to the right.
Open the front safety guard
A
.
Warning!
Before cutting a measurement please check if
the correct scale (cm or inch) is set.
Display in cm or inch
• Press
q
K
! Display changes between cm
and inch. For information on how to store see
page 20, picture below left.
•

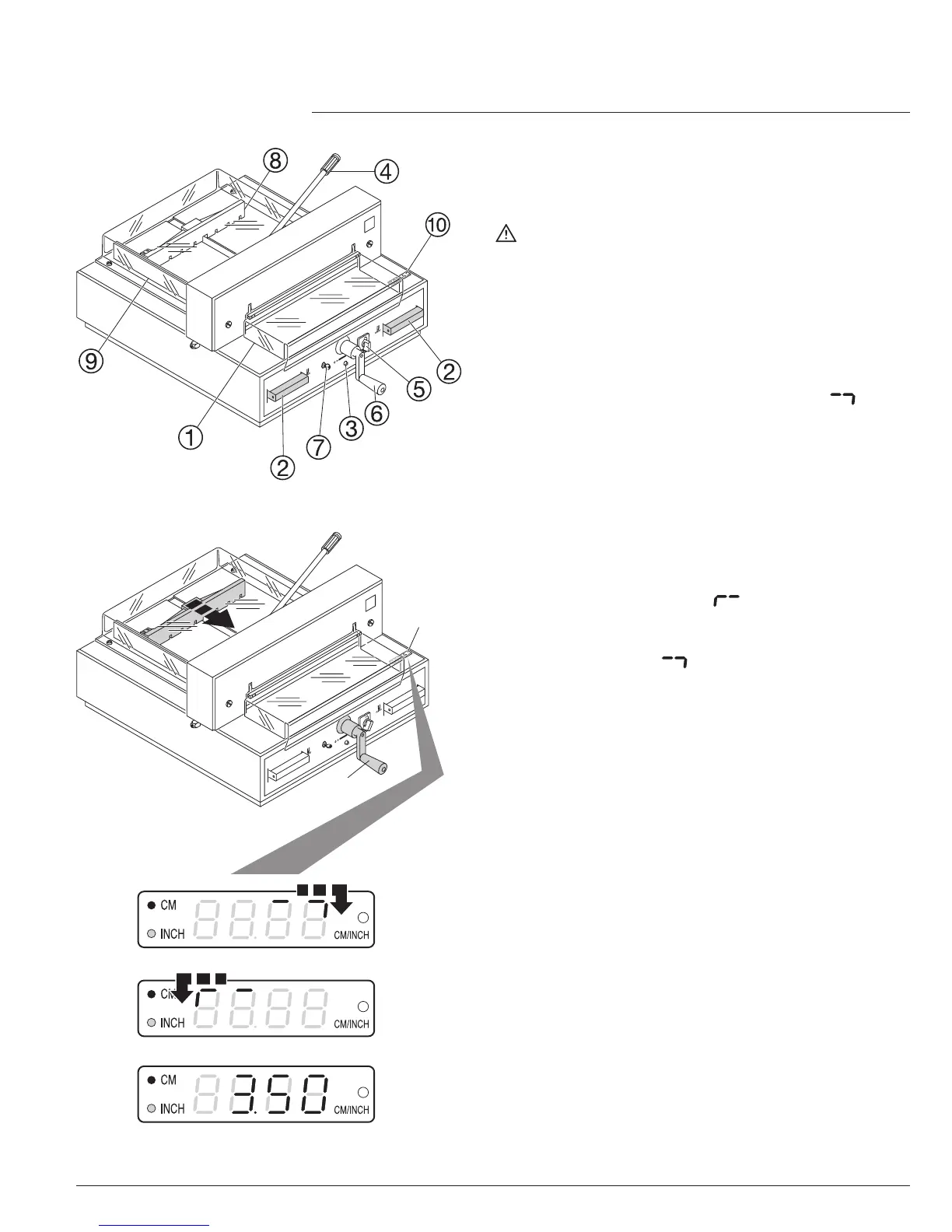

The measurement is set with the backgauge
crank.(A) The symbol – rotary direction –
moves to the right on the display (B) (see
picture C). The rotary direction of the
(backgauge crank (A) is indicated on the right.
Keep turning the backgauge crank to the right
until a measurement appears (see picture E).
The reference position is reached. The
cutting size can now be set with the
handle (A).
If the backgauge is right at the front the
symbol – rotary direction –
ill move to
the left (see picture D). Turn the backgauge
crank to the left until the rotary direction
appears on the right
in the display (see
picture C). Afterwards turn the backgauge
crank to the right until a measurements
appears (see picture E). The reference
position is reached. The cutting size can now
be set with the handle (A). Proceed to
position ! from the rear.
The measurement scale in cm or inch has a
LED display
L
.
For information on how to store see page 21,
picture below left.
