4.3.4 Brakes

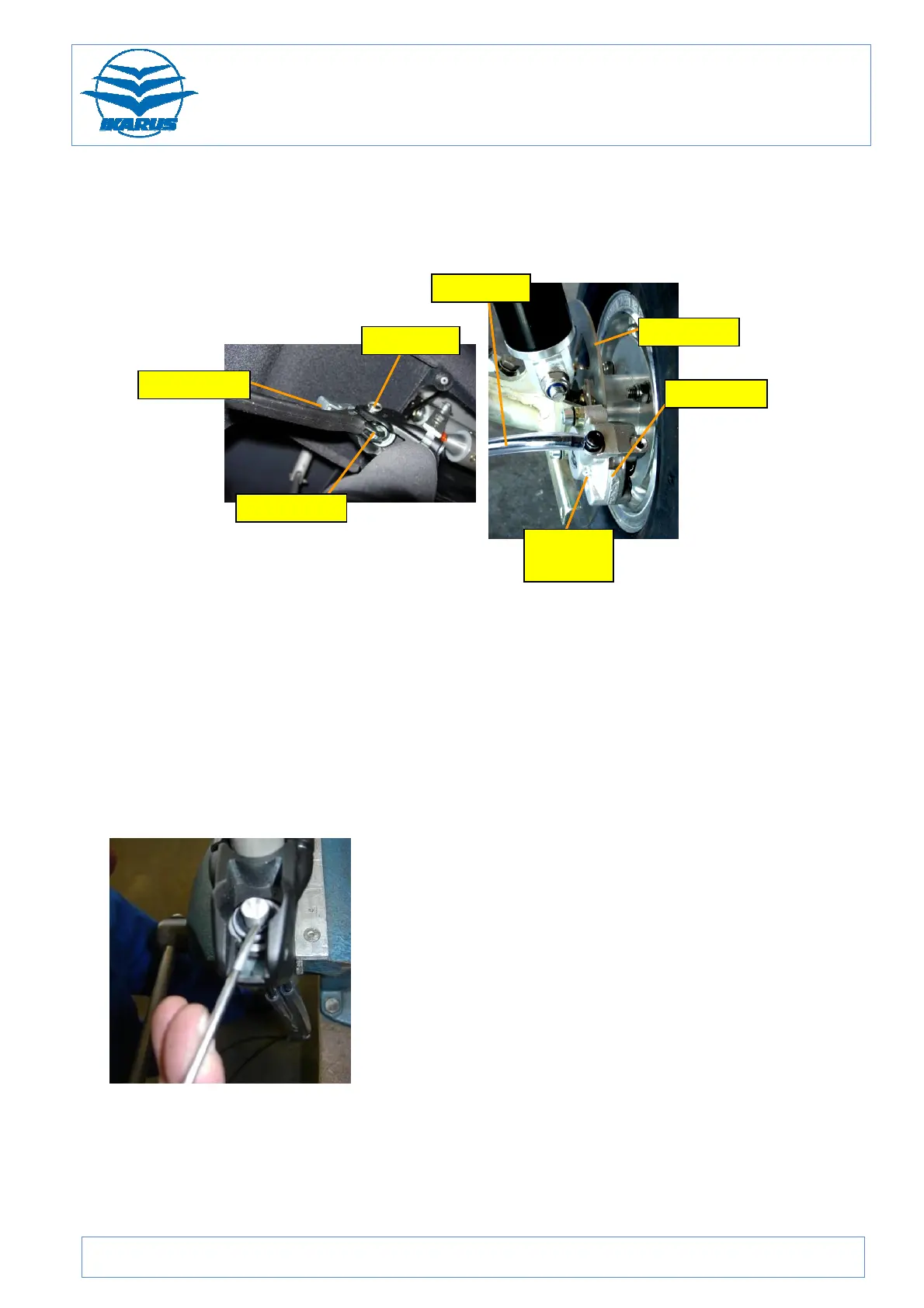

Figure 62: Brakes
4.3.4.1 Replenishing brake fluid
1) Remove safety ring from brake lever, pull out the cotter bolt and
remove the brake lever.
2) Pull the aluminium cup out of the piston using long nose pliers or a
small screwdriver.
Figure 63: Removing the aluminium cup
setting screw
fixation lever
safety ring
brake disc
brake line
brake pad
cotter bolt
brake shoe
