IKEA MATMASSIG User Manual

Electrical Requirements
You can check the parameters of
adjustment setting for this
appliance on the rating plate.
Refer to the Technical data
chapter.
The manufacturer declines any
liability if these safety measures
are not observed.
The appliance must be connected to a
220-240 V 50/60 Hz AC electrical supply.
Before activating the appliance, make sure
the electrical supply voltage is the same as
that indicated on the rating plate. The
rating plate is located below the surface of
the casing.
The appliance is supplied with a standard
7.5 amp service cord terminated by a 3-pin
plug for connection to a standard
household socket.
You must install the plug. The wires in the
mains lead are coloured in accordance with
the following code:
Green and yellow - Earth
Blue - Neutral
Brown - Live
1. Connect the green and yellow (earth)
wire to the terminal in the plug which is
marked with the letter 'E' or the earth
symbol
, or coloured green and
yellow.
2. Connect the blue (neutral) wire to the
terminal in the plug which is marked
with the letter 'N' or coloured black.
3. Connect the brown (live) wire to the
terminal in the plug which is marked
with the letter 'L' or coloured red.
There must be no cut or stray strands of
wire present. The cord clamp must be
correctly attached on the outer sheath.

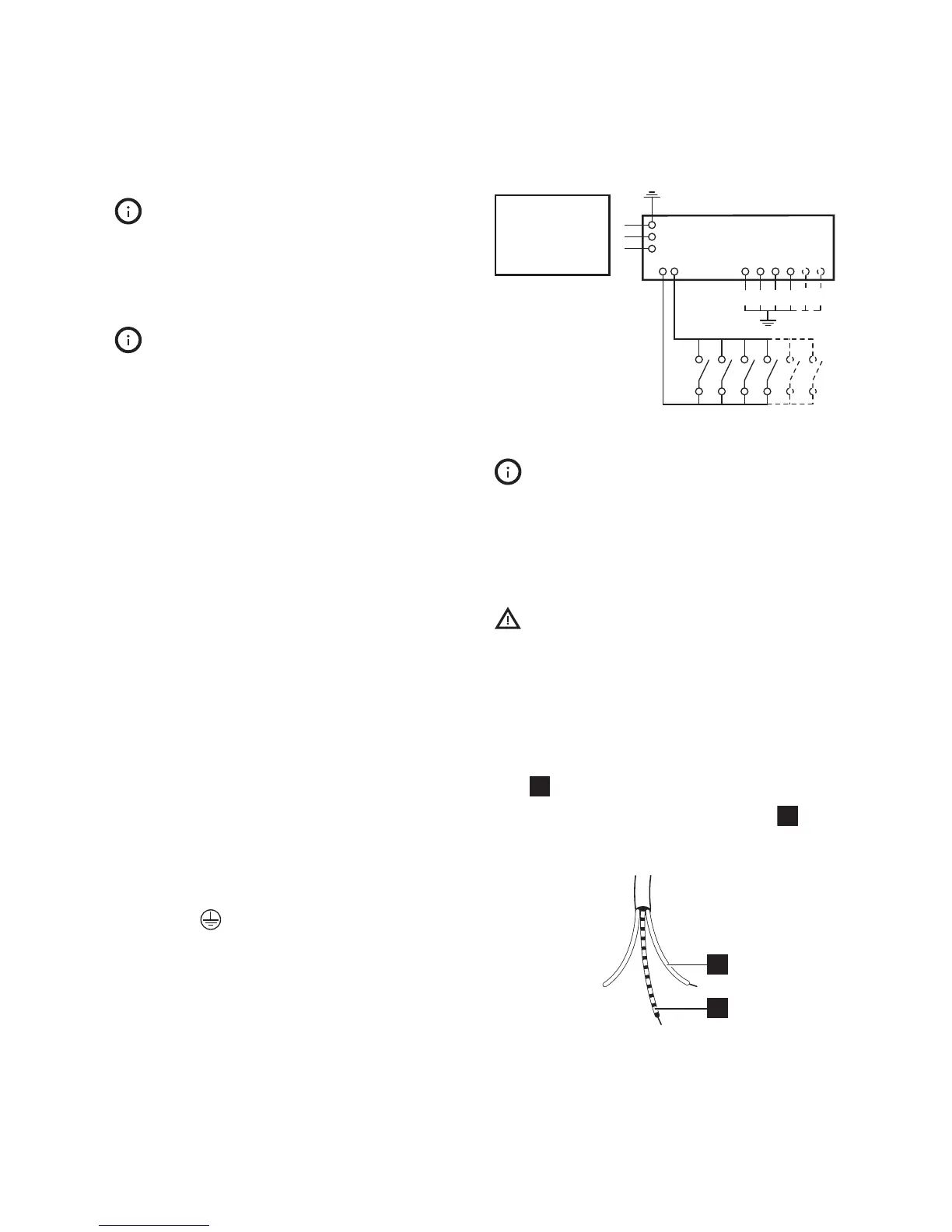

body
220-240V
ignition box
to burner spark plugs
knob
ignition
switches
E
N
L
DANGER
220-240 volts AC
Disconnect from
supply before
removing panel
To prevent contact between the
cable and the appliance below
the hob use the clamps which are
on the side of the cabinet.
Replacement of the connection cable
Warning! To replace the
connection cable, the technician
must have a specific equipment.
In this case, only cable type H05SS-F T180
must be used. The cable section must be
suitable to the voltage and the working
temperature. The yellow and green earth
wire
2
must be approximately 2 cm longer
than the brown or black phase wire
1
.
1
2
ENGLISH
17
