IKEA MIRAKULOS User Manual

Electrical installation
Warning! Only a qualified
person must do the electrical
installation.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This appliance is only supplied with a main
cable.
Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F,
H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also
refer to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral
cables (blue and brown cables).

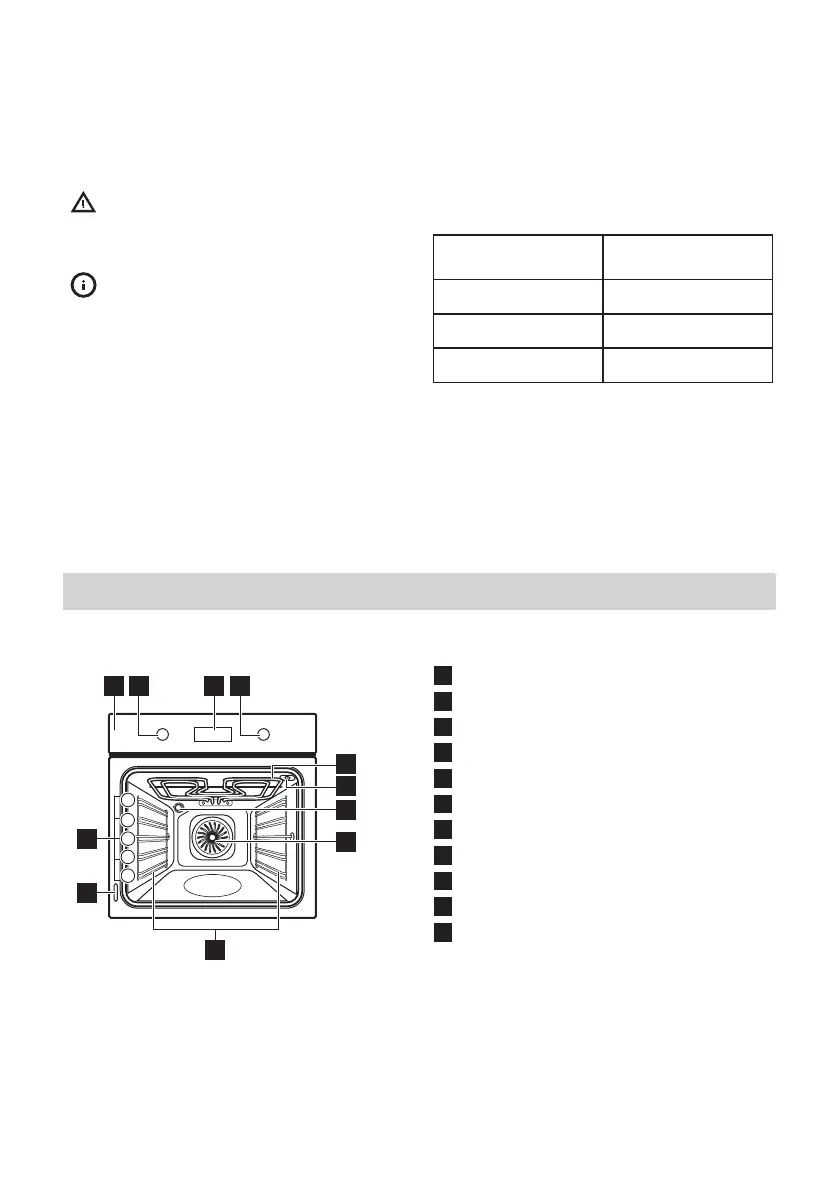

Product description
General overview
7
11
8
9
5
4
1
2
3
31 42
5
6
10
1
Control panel
2
Knob for the oven functions
3
Electronic programmer
4
Knob for the temperature
5
Grill
6
Socket for the core temperature sensor
7
Lamp
8
Fan
9
Shelf support, removable
10
Rating plate
11
Shelf positions
Accessories
• Wire shelf x 2
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
• Grill- / Roasting pan x 1
To bake and roast or as pan to collect
fat.
• Core temperature sensor x 1
To measure how far the food is cooked.
• Telescopic runners x 2 sets
ENGLISH 9
