rating plate is located on the lower
casing of the hob.
• The appliance is supplied with a
connection cable. This has to be
provided with a proper plug, able to
support the load marked on the
identification plate. To connect the plug

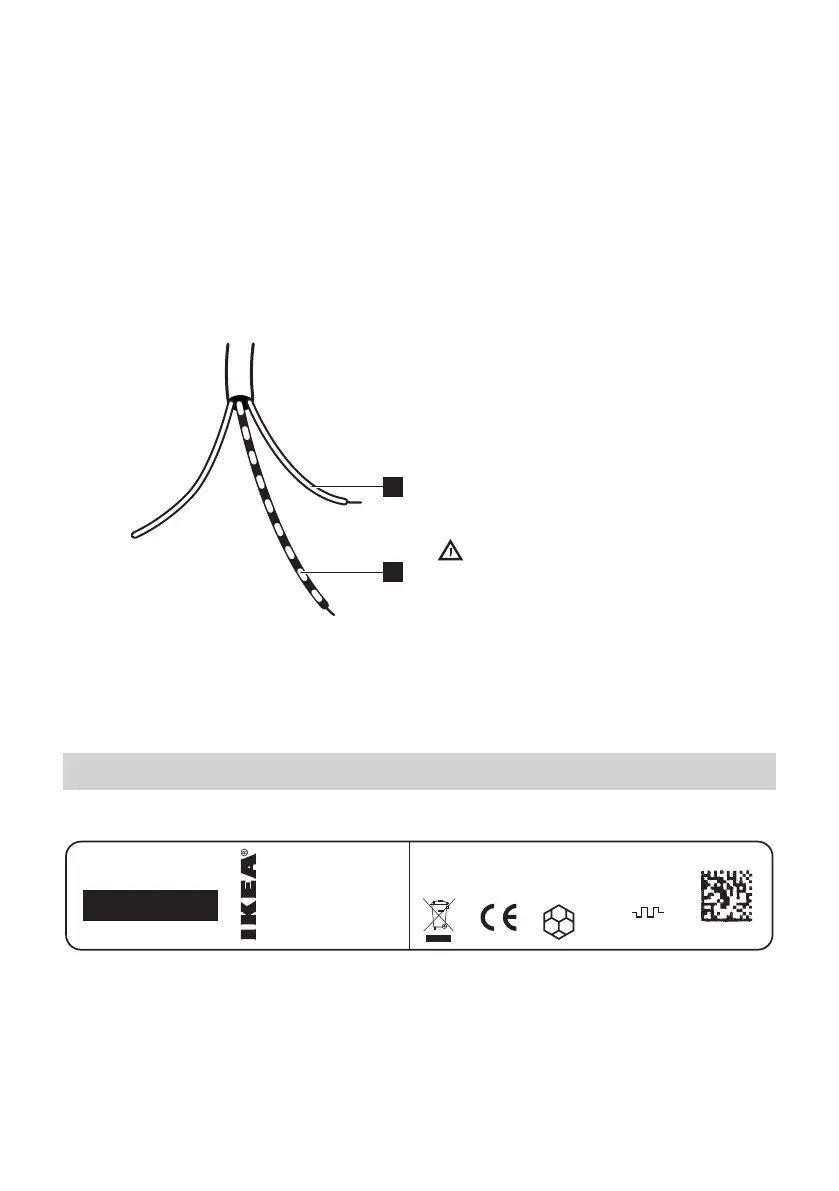

to the cable, follow the recommendation
given in following figure.
Replacement of the connection cable
• The replacement of the connection cable
requires the specific equipment of a
technician. Only an original spare part
able must be used, provided by spare
parts service. The plug has to be fitted in
a proper socket. If connecting the
appliance directly to the electric system,
it is necessary that you install a double
pole switch between the appliance and
the electricity supply, with a minimum
gap of 3 mm. between the switch
contacts and of a type suitable for the
required load in compliance with the
current rules.
• The connection cable has to be placed in
order that, in each part, it cannot reach a
temperature 90 °C higher than the room
temperature. The brown (or black) phase
cable (fitted in the terminal block contact
marked with "L") must always be
connected to the network phase.
Warning! Once connected to the
mains supply check that all
cooking zones are ready for use
by briefly setting each to
maximum power.
Technical information
Rating Plate
302.371.38
Made in Italy
© Inter IKEA Systems B.V. 1999
21552
PQM
ZO
230 V
Model MÖJLIG Typ 58 GED D9 AU 3,7kW
PNC 949 738 693 01 S NO ............... 220V-240V AC 50-60 Hz
3,7kW Induction
The graphic above represents the rating
plate of the appliance (without serial
number which is generated dynamically
during the production process), which is
located at its underneath surface of the
casing.
Dear Customer, please apply here aside
the sticker you can find in the dedicate
plastic bag inserted inside the hob
packaging. This will allow us to assist you
better, by identifying precisely your hob, in
case you will need in future our assistance.
Thank you for your help!
