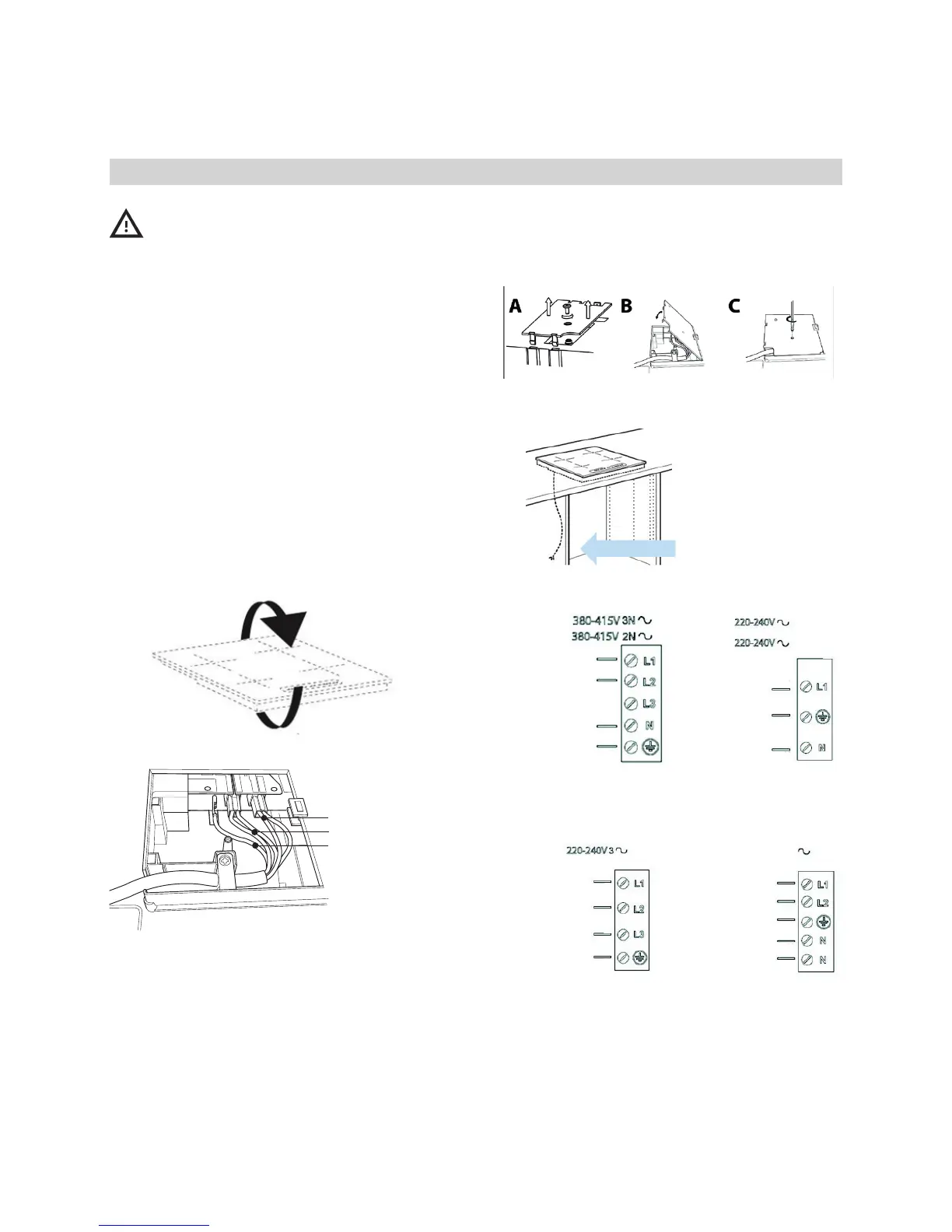

Electrical connection
WARNING. Disconnect the appliance
from the power supply.
- Installation must be carried out by
qualied personnel who know the current
safety and installation regulations.
- The manufacturer declines all liability
for injury to persons or animals and for
damage to property resulting from failure
to observe the regulations provided in this
chapter.
- The power cable must be long enough
to allow the hob to be removed from the
worktop.
- Make sure the voltage specied on the
dataplate located on the bottom of the
appliance is the same as that of the home.
}
}
}
}
}
}
}
}
1. Remove the terminal cover (A) by
unscrewing the screw and insert the cover
into the hinge (B) of the terminal.
2. Plug the power cord into the clamp and
connect the wires to the terminal block as
shown in the wiring diagram located near
the terminal.
3. Secure the power cable with the cable
clamp.
4. Close the cover (C) and screw on the
terminal with the screw removed.
For each connection to the network, the hob
automatically checks for a few seconds.
}
}
}
}
}
}
}
}
}
}
}
}
}
}
}
}
Connection to
main power
blue/grey
black/brown
yellow/green
black
brown
blue
blue (grey)
yellow/green
black
brown
yellow/green
blue
blue (grey)
AU
and UK
black
brown
blue
blue (grey)
yellow/green
black
brown
yellow/green
blue
blue (grey)
230V 2 phase 2N
ONLY FOR NL
ONLY FOR BELGIUM
