Installing and Replacing Desktop Board Components
29
Installing and Removing a Processor
Instructions on how to install the processor to the Desktop Board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure the AC power has been
removed by unplugging the power cord from the computer; the standby power LED
should not be lit (see
Figure 3 on page 23). Failure to do so could damage the
processor and the board.
To install a processor, follow these instructions:
1. Observe the precautions in "
Before You Begin" on page 25.
2. Open the socket lever by pushing the lever down and away from the socket
(
Figure 6, A and B).

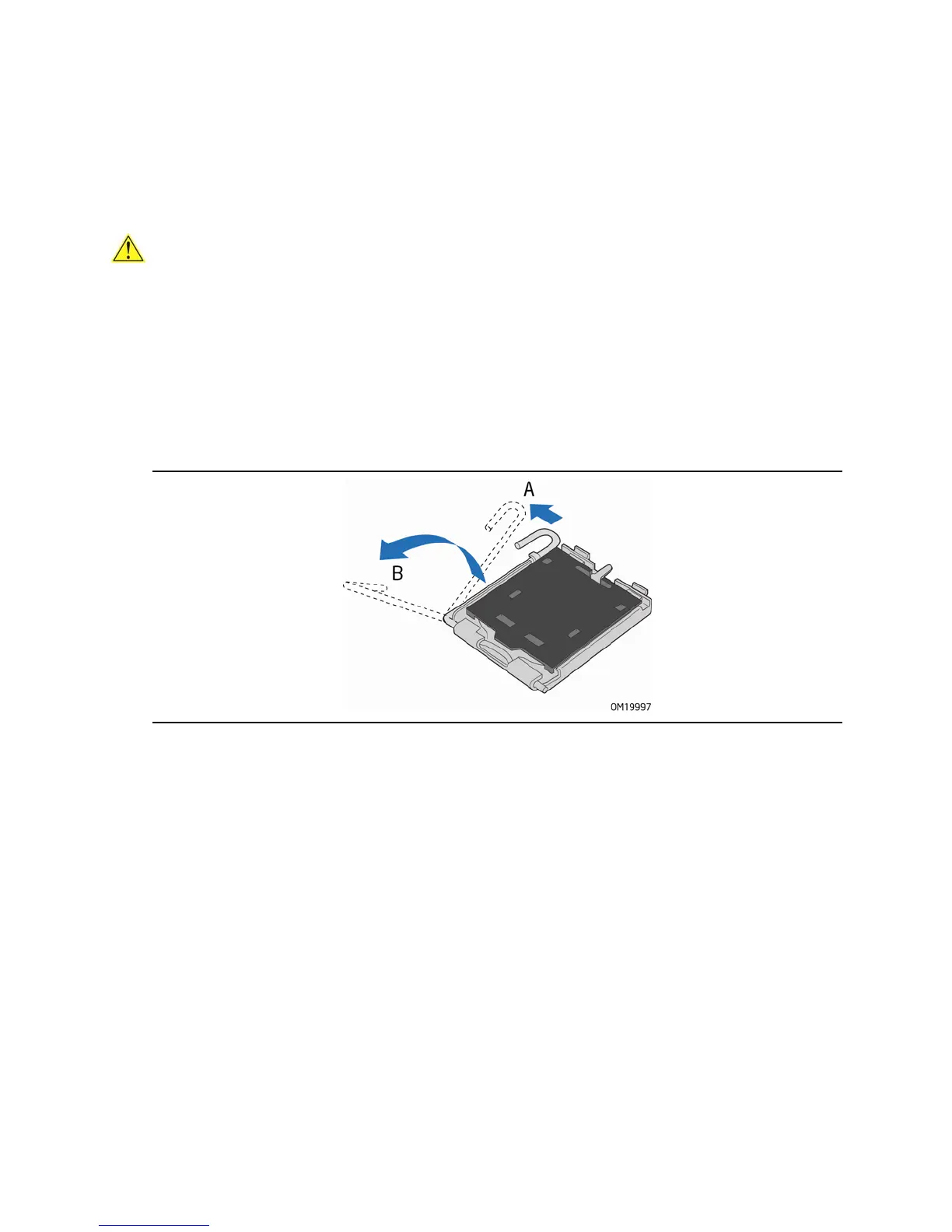

Figure 6. Lift the Socket Lever
