2.2.1 Back Panel Connectors
Figure 9 shows the location of the back panel connectors for the board.
Item Description
A PS/2 keyboard/mouse connector
B USB 2.0 ports
C VGA connector
D Parallel port
E DVI-D connector
F LAN
G USB 2.0 ports
H Line in
I Line out/front speakers
J Mic in/side surround

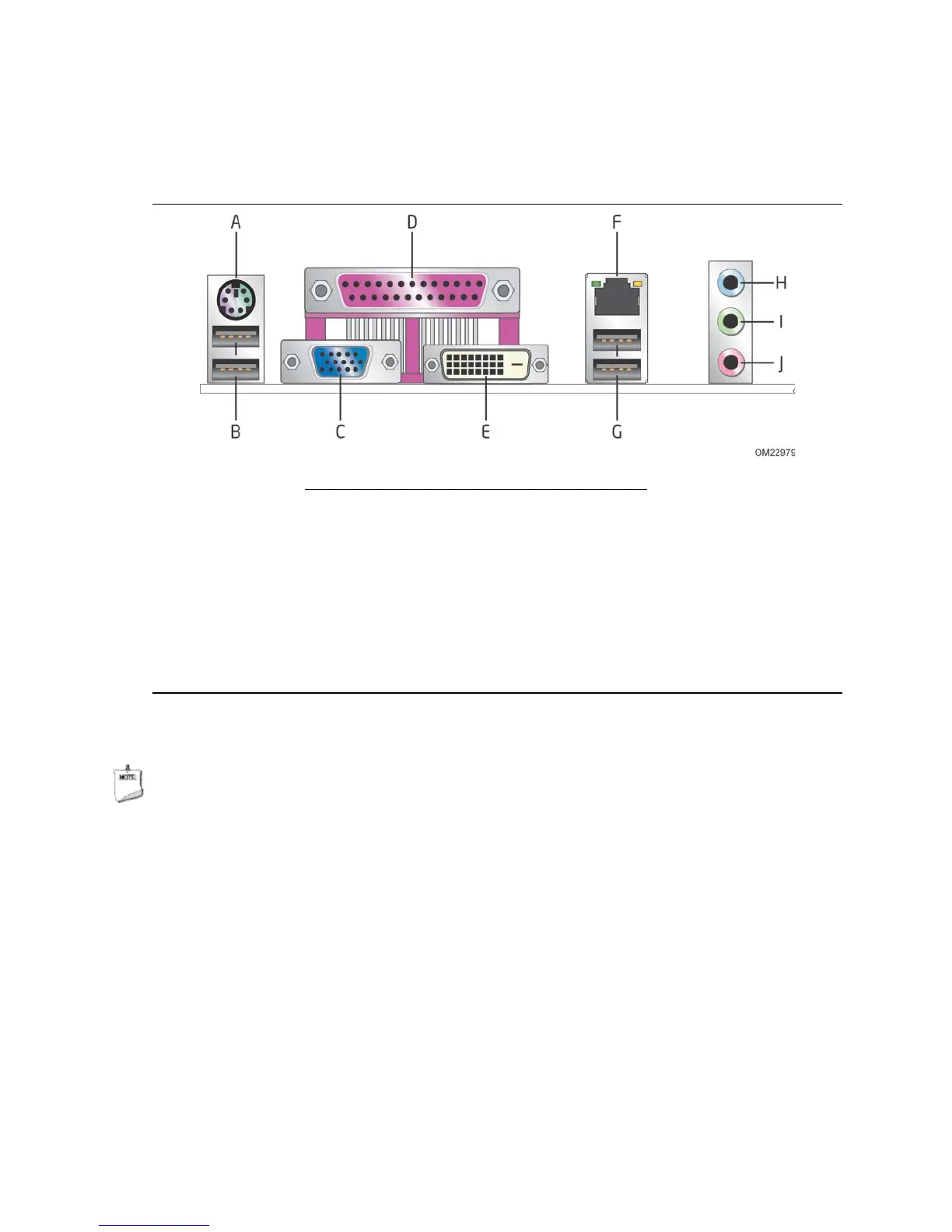

Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.

Intel DH61CR Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
Memory Standard	DDR3 1066/1333
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
RAID Support	No
SATA Ports	4 x SATA 3Gb/s
USB Ports	4 x USB 2.0
VGA	1 x VGA
DVI	Yes
