Intex CLEARVIEW PRISM FRAME 126730GN User Manual

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2020
108
GS
SAVE THESE INSTRUCTIONS
English
Page 4

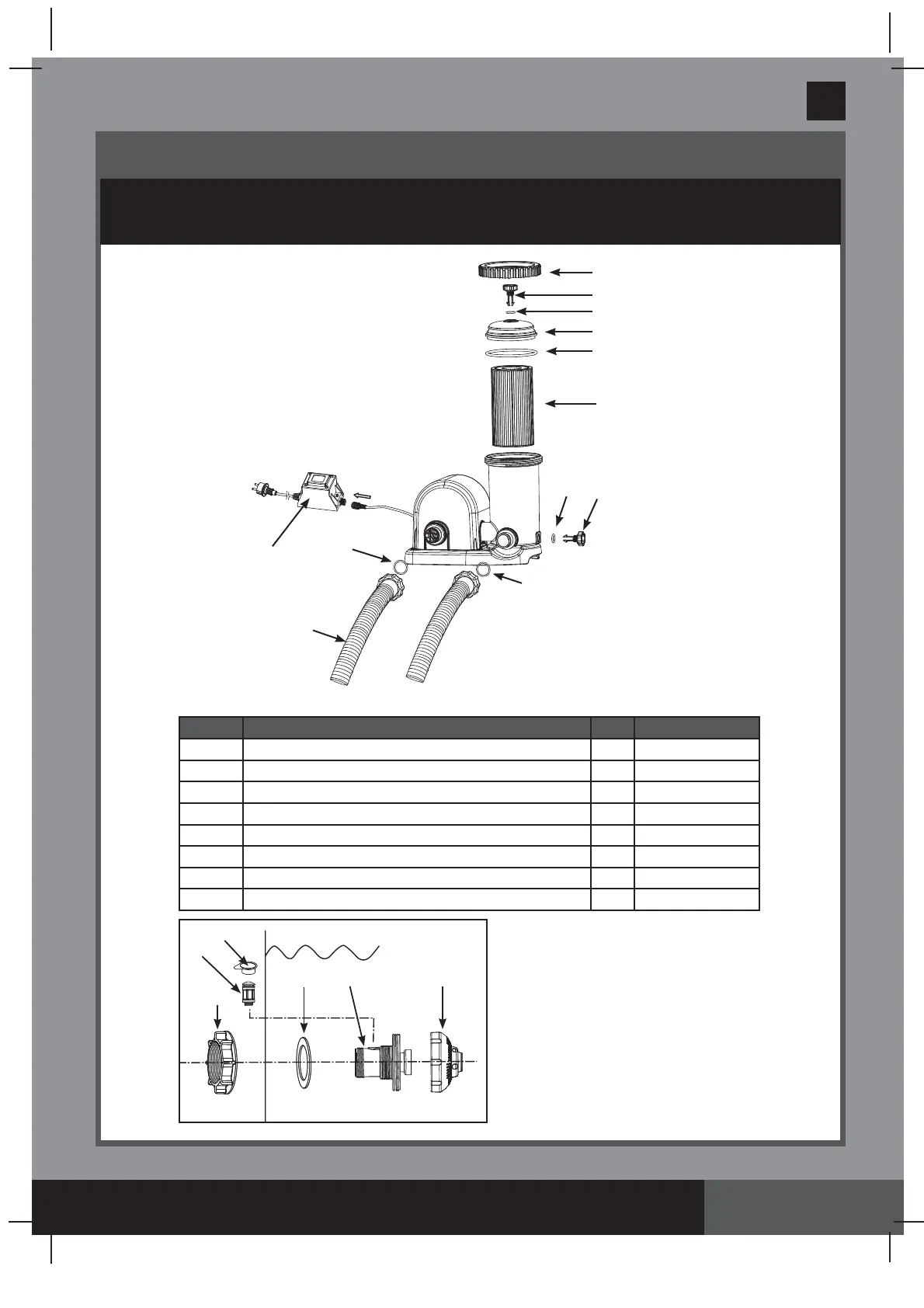

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
1
2
3
4
5
6
7
8
REF. NO.
DESCRIPTION
QTY.
SPARE PART NO.
1
2
2
1
1
1
2
1
THREADED FILTER HOUSING COLLAR
AIR RELEASE VALVE/SEDIMENT RELEASE VALVE
VALVE O-RING
FILTER HOUSING COVER
FILTER HOUSING O-RING
FILTER CARTRIDGE
PUMP HOSE WITH NUTS
TRANSFORMER
10749
10460
10264
10750
10325
29000
11009
10985
NOTE:
Drawings for illustration purpose only.
Actual product may vary . Not to scale.
If the pump was purchased individually,
only these inlet fitting parts are included.
No tools are required for the assembly.
2
3
4
5
1
6
3
7
2
8
10
10
Type of fi lter medium:
Synthetic cartridge #29000
12
13
17
15
16
INLET
18
