(97IO) DELUXE MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/26/2018
97A
S AVE THESE INSTRUCTIONS
English
Page 7

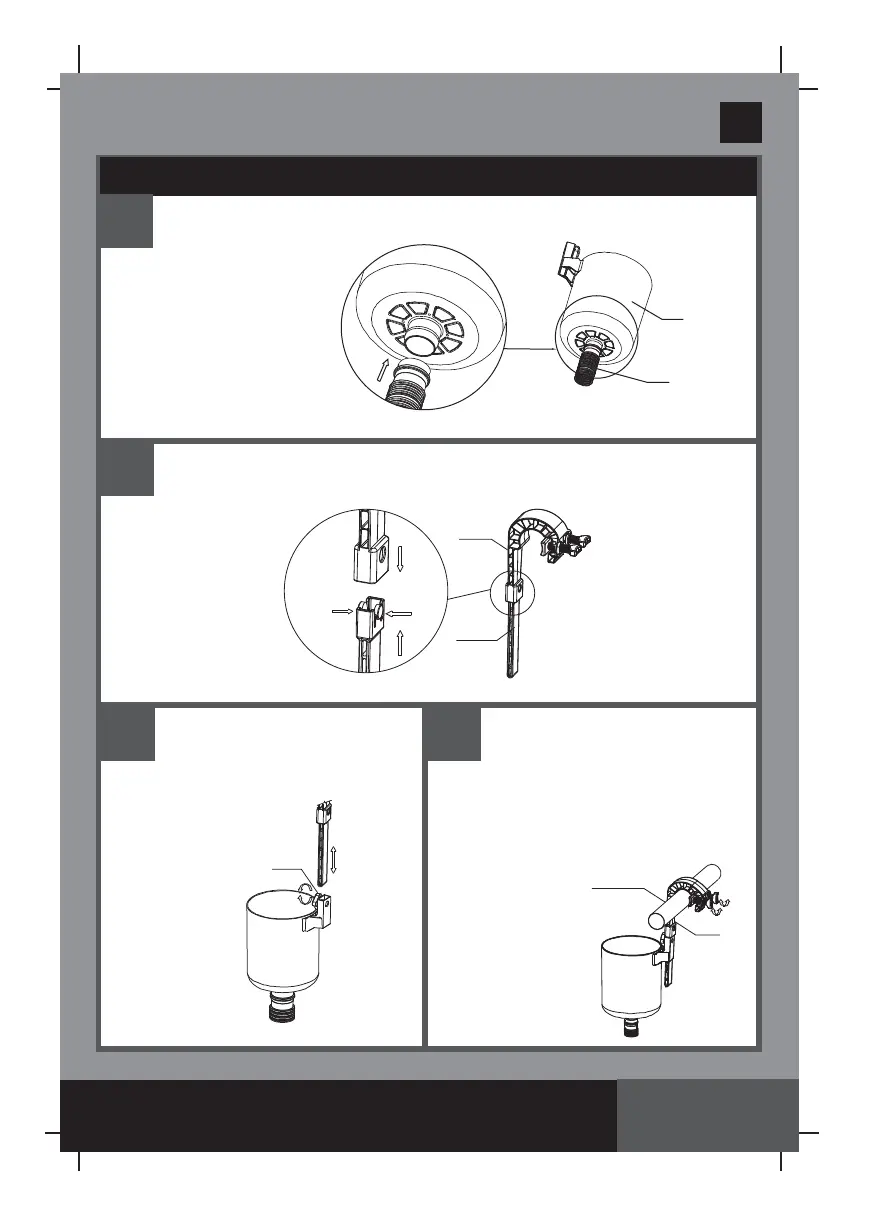

HOOK ASSEMBLY FOR METAL FRAME POOLS
1
2
3
4
Connect the skimmer
hose
(16)
to the
skimmer
(10)
bottom connector.
Assemble the hook as shown.
Press
Press
Insert
Insert
12
15
Loosen the skimmer
screw
(11)
, attach the
assembled hook and hand
tighten the screw.
NOTE:
Do not over
tighten or use tools
such as pliers.
Place the whole assembled
hook unit over the top of a
FRAME
Pool Top Beam near the
water outlet connector (lower hose
connection). Adjust the hook by
adjusting the two dove-tail screws, to
be tight on the top beam.
Ensure the
hook is
securely
tightened
over the
pool top
beam.
Top Beam
15
Slide
11
10
16
To Next Page
