Intex GRAPHITE GRAY PANEL POOL SET 15'8" User Manual

120
PO
SAVE THESE INSTRUCTIONS
(120PO) ENGLISH 7.5” X 10.3” PANTONE 295U 10/10/2018
English
Page 18

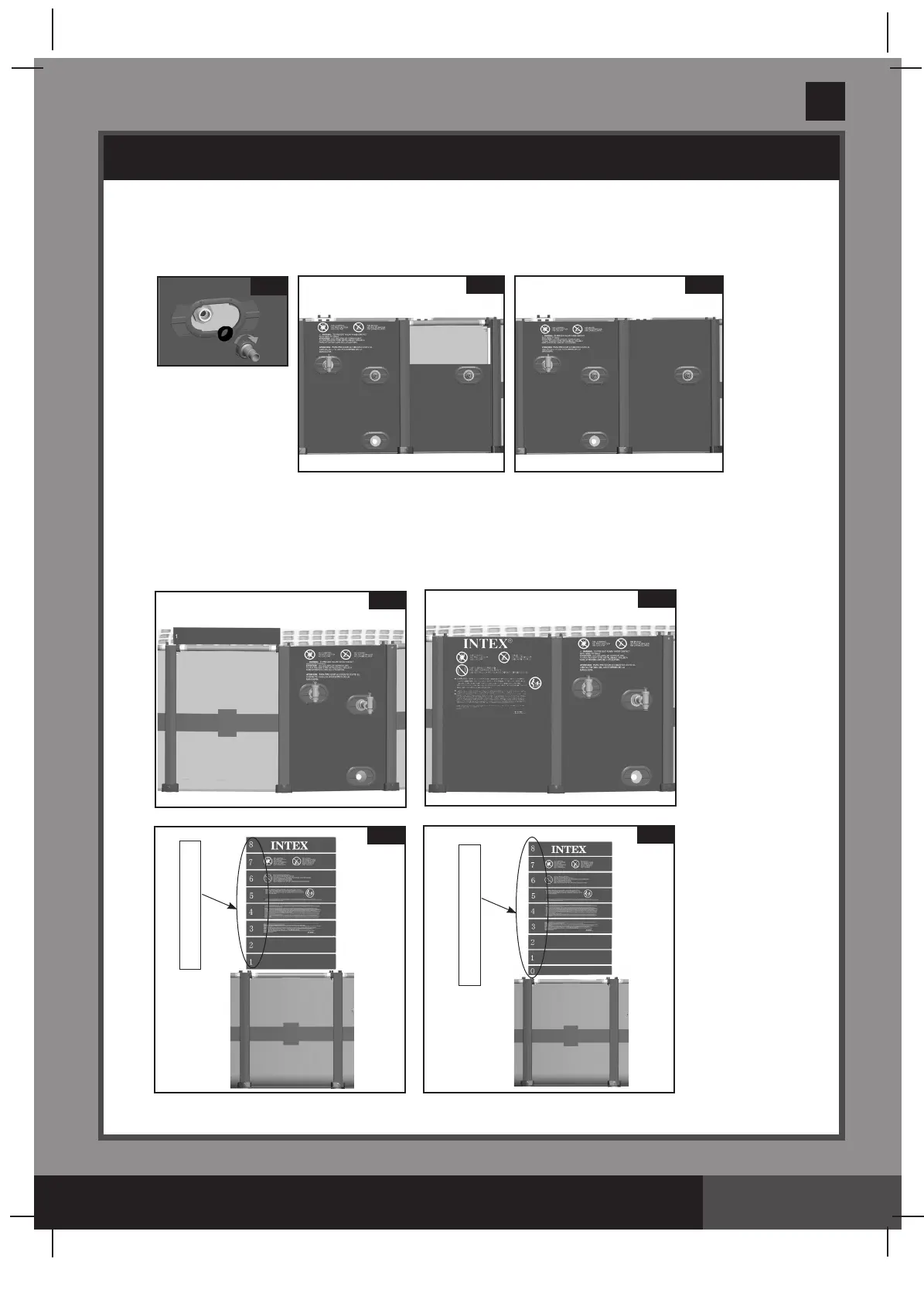

4b. Side panel with “warnings” installation
 • Locatethesidepanelwithwarningssuchthatthewarningswillbeeasilyseenbypoolusersbefore
entering the pool. Unwrap the side boards from pack and slide the side board first down the support
  postsandinsertontotheverticaledgeofthebottomrail.Followwiththenumbersequencefrombottom
  totop.Thegrooveoftheboardneedstobeinsertedfullyontothetongueofthepreviousboard.The
  printingonthesideboardsneedstobefacingoutward(seedrawings13.1&13.2).
13.1
13.2
15'8"x49"
13.3
8
7
6
5
4
3
2
1
15'8"x49"
18’8”x53”
13.4
8
7
6
5
4
3
2
1
0
18’8”x53”
• ConnecttheL-shapeo-ring
(35) and adaptor A (40)
ontothethreadedstrainerconnectors(Seedrawing
 12.6&12.7).Note:Removethestrainervalvecap
(19) from the threaded strainer connectors when
connecting filter pump with it. Then continue to finish the side panel installation by installing the rest of the
 sideboardsmarkedwithnumber“7”and“8”(seedrawing12.8).
POOL ENCLOSURE SETUP (continued)
12.7
12.8
12.6
