117A
SAVE THESE INSTRUCTIONS
English
(117IO) CLEARVIEW PRISM FRAME™ PREMIUM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 12/14/2020
Page 5

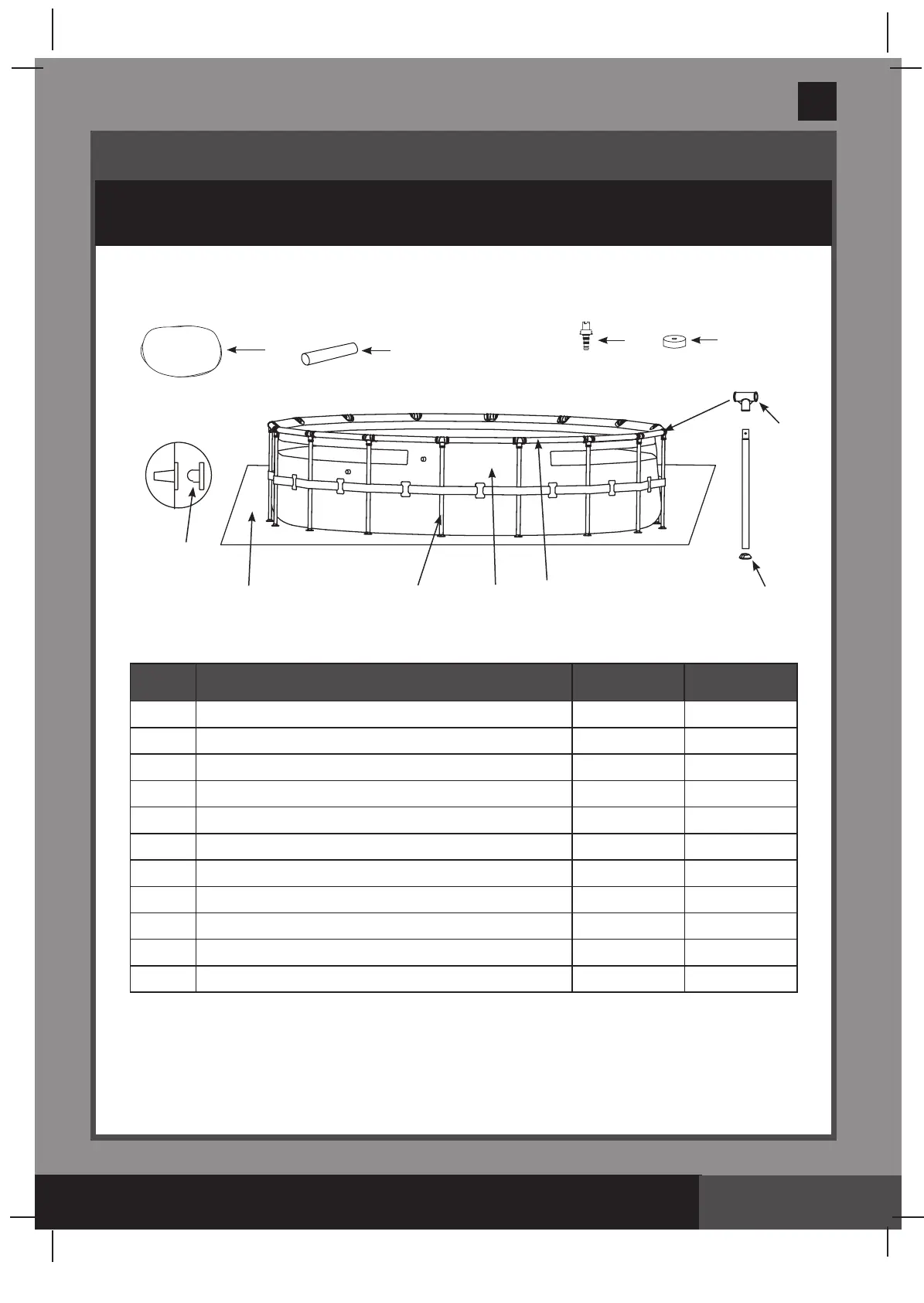

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
1
2
9
3
7
4
5
6
8
10
11
REF NO. DESCRIPTION
QUANTITIES
SPARE PART
NO.
1 DRAIN CONNECTOR 1 10201
2 DRAIN VALVE CAP 1 11044
3 T - JOINT 16 12802
4 LEG CAP 16 12465
5 HORIZONTAL BEAM 16 12809
6 POOL LINER (DRAIN VALVE CAP INCLUDED) 1 12971
7 VERTICAL LEG 16 12829
8 GROUND CLOTH 1 18927
9 POOL COVER 1 10754
10 STRAINER HOLE PLUG (WITH 1 EXTRA) 3 10127
11 ROLLING PIPE 2 13009
To Next Page
