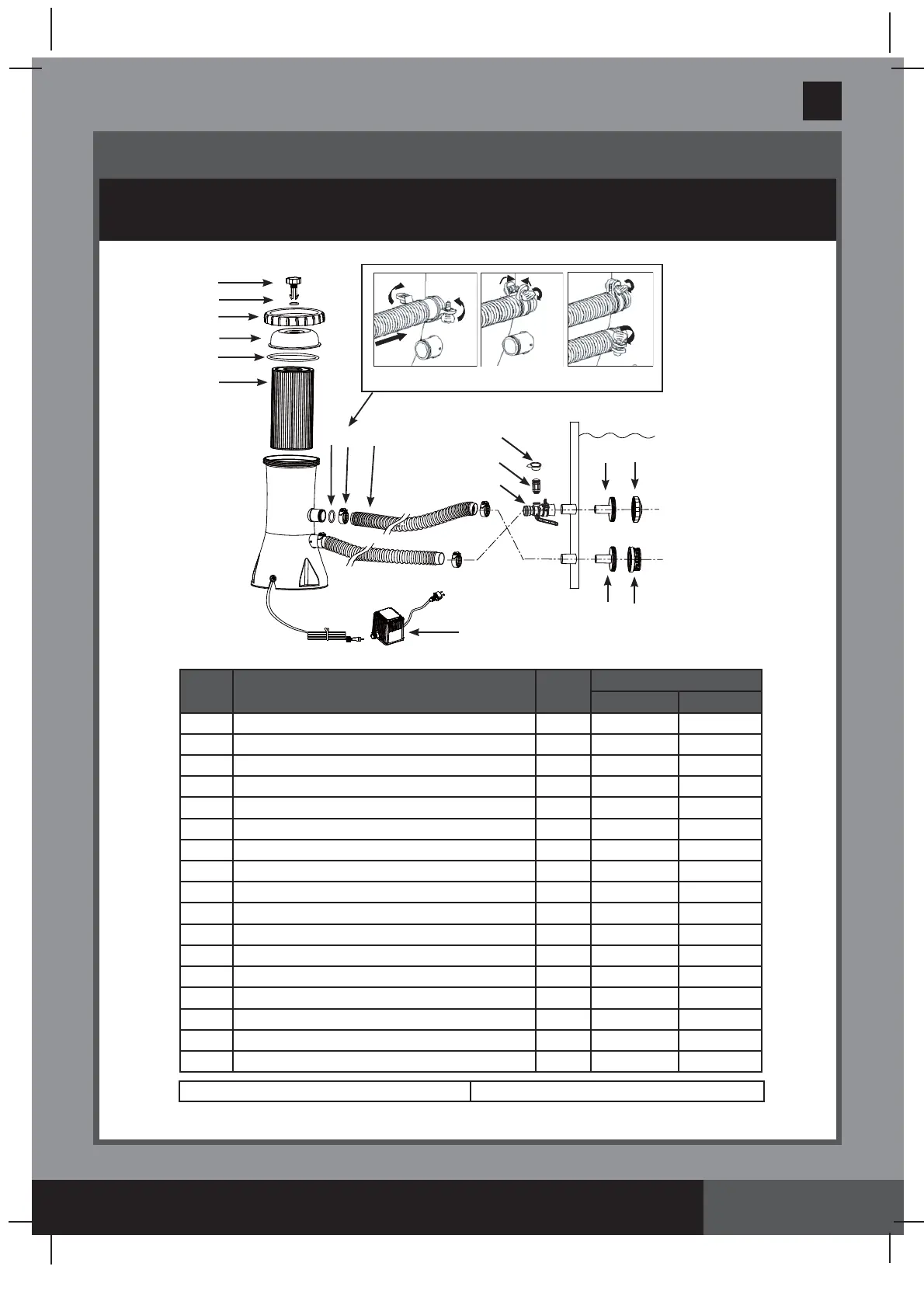

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
When ordering parts, be sure to quote the model number and part numbers. No tools are
required for the assembly.
REF.
NO.
DESCRIPTION QTY.
SPARE PART NO.
Model 604G Model 638G
1 AIR RELEASE VALVE 1 10460 10460
2 VALVE O-RING 1 10264 10264
3 FILTER HOUSING COVER 1 11868 11868
4 COVER SEAL 1 10325 10325
5 FILTER CARTRIDGE 1 29000 29000
6 HOSE SEAL 2 10134 10134
7 HOSE CLAMP 4 11489 11489
8 HOSE 2 10116 10116
9 STRAINER CONNECTOR 1 11070 11070
10 POOL INLET JET NOZZLE 1 12364 12364
11 STRAINER GRID 1 12197 12197
12 TRANSFORMER 1 11649 11648
13 THREADED FILTER HOUSING COLLAR 1 11869 11869
14 INLET STRAINER CONNECTOR 1 12365 12365
15 AIR JET VALVE 1 12363 12363
16 POOL INLET AIR ADAPTOR 1 12367 12368
17 AIR JET VALVE CAP 1 12373 12373
Type of fi lter medium Synthetic cartridge #29000
1
2
3
4
5
6
7
8
14
9
12
11
10
A B C
13
15
16
17
