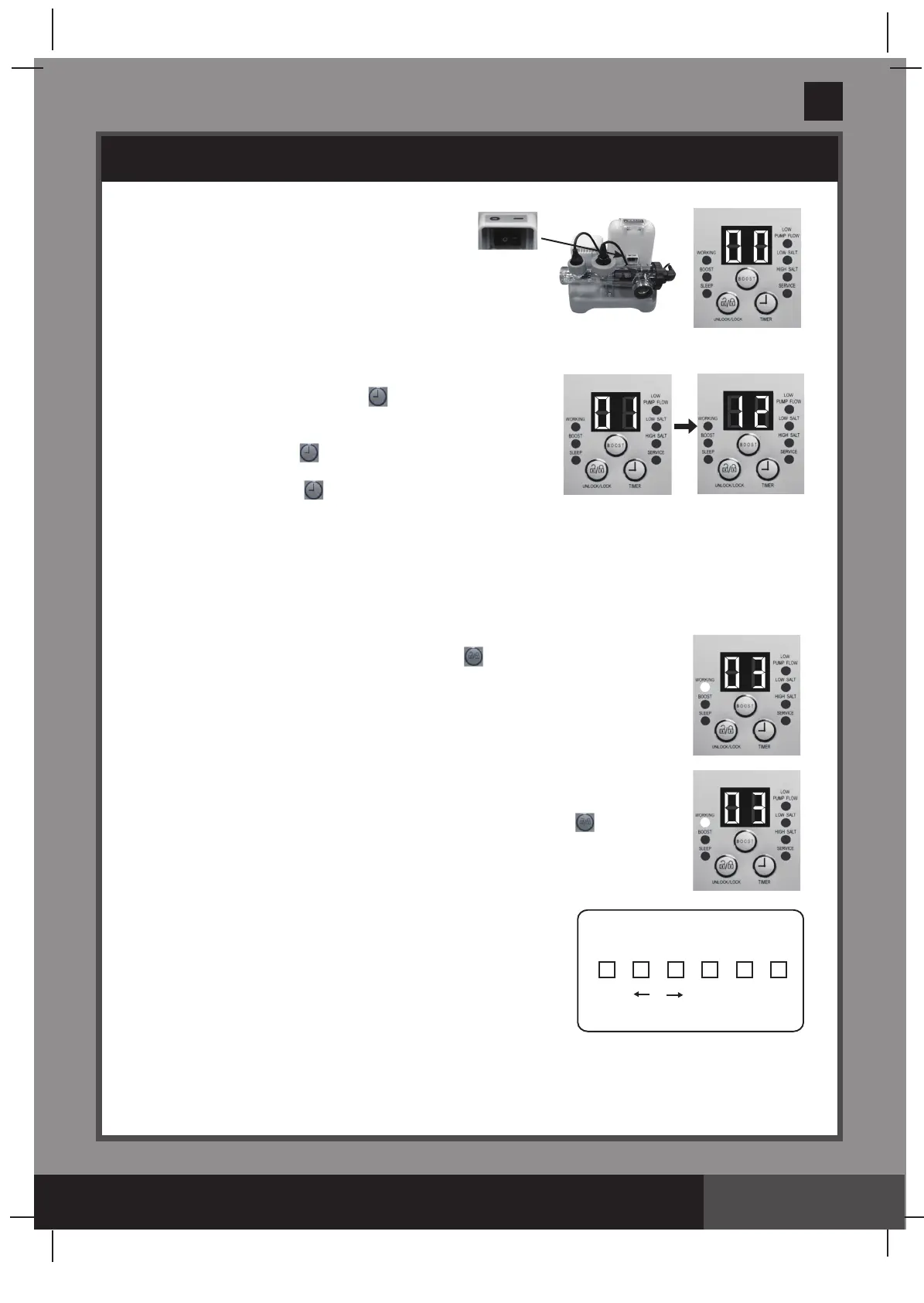

OPERATION INSTRUCTIONS
OK
0
Copper (ppm)
0.1 0.2 0.5 0.9 1.3
1. Turn on the filter pump.
2. Start up the unit:
Plug the power cord into the electrical
outlet and test the GFCI/RCD (circuit
breaker). Switch on the unit. Flashing code
“00” appears on the electronic control station’s
LED, indicating that the unit is ready to be
programmed.
3. Set operating hours for Saltwater system:
With code “00” flashing, press button to set the
desired operating hours. See the “Operating Time
Table” for the required operating hours related to each
pool size. Pressing will increase the time from 01
to 12 hours maximum. If you have selected too many
hours keep pressing to repeat the cycle.The built-in
timer will now activate your Saltwater System, at the
same time each day, for the number of hours you have
set.
NOTE: The Saltwater System will not operate if the filter pump is not operating. Make sure to
program your filter pump (or start it manually) for operation beginning 5 minutes before the
saltwater system and finishing 15 minutes after the saltwater system.
4. Lock keypad controls:
With the desired hour value showing, press button until you hear a
“beep”. A green “WORKING” indicator on the control panel will light up
within a few seconds to indicate that the saltwater system has started
chlorine production. Locking the control buttons into this setting prevents
unauthorized changing of the operating cycle.
NOTE: If you forget to lock the keypad controls, the system will
automatically lock it and start working 1 minute later.
5.
Readjust operating time if necessary:
The operating hours can be re-adjusted if necessary. Press button
until you hear a “beep” to unlock the keypad and the current programmed
time will flash. Repeat steps 3 to 4.
6. Test the copper concentration in the pool water.
The Saltwater System recommends a copper level of 0.1
to 0.2 ppm.
This is easily tested by the copper ion test
strips provided. If the test result is 0.1~0.2ppm, go directly
to step 8.
(1 to 12 hours max per cycle)
